CNC LATHE – SOMAB – MAXIMAB S1800

Specifications : CNC :   FAGOR 8085 with Somab VT 2.0 Max swing over bed   1800 mm Max swing over saddle  1400 mm Centre distance   6 000 mm Max load between centres  10 000 kg Spindle bore  100 mm Max spindle speed  630 RPM (4 ranges) Tailstock quill dia 200 mm   MT6          Tailstock quill stroke   300 mm Main motor power  56 / 37 kW Dimensions  10.5 […]

CNC Teach-In LATHE – PINACHO – Mustang 225

Specifications : CNC :   FAGOR 8055 TC Swing over bed    450 mm Swing over saddle    260 mm Max turn length   1 000 mm Spindle bore   65 mm Spidle speeds  0 à 3 000 RPM Tailstock quill dia 58 mm   MT4       Tailstock quill stroke  115 mm Main motor power  8 kW Dimensions  3000 x 1800 x ht 1900mm Weight   2665 kg Equipped with : 8 station […]

CNC VERTICAL BORER – SNT DYNAMICS TONGIL – TNL120V Power Turn

Specifications : CNC :   FANUC 18T Turning capacity : Max swing diameter :  1550 mm Max turn diameter :  1110 mm Max Turn height.  872 mm Vertical ram travel :  650 mm Chuck : Diameter  : 1100 mm Max Load.  : 4T Chuck Speed (2 ranges)  : 1 – 400 RPM Main motor power  : 30/37 kW Foot-print + height : 3.5 x […]

CNC LATHE – DMTG – CKE 6180 Z

Specifications : CNC :   FANUC 0i-mate – TC Swing over bed :   800 mm Swing over saddle :  490 mm Centre distance :  1000 mm Max turn length  :    785 mm 8 position auto turret :  32 x 25 or dia 50 mm Spindle bore  :  100 mm Main motor power :  11 kW Spindle speeds  :   40 à 1000 […]

5 Axis Machining Center-DMG MORI – DMF 260/7 (4600 spindle hours)

Equipped with : Integrated 750mm dia. / 500kg / 50 RPM Rotary table Spindle 46/30 kW – 10.000 RPM 60 ATC 40 bar thru spindle Coolant, 7 pressure levels 980 litre coolant tank with paper filter Swarf conveyor Part Probe Central partition, 2 x 1055mm pendulum machining CNC : SIEMENS 840Dsl Ergoline 19″ Specifications : Table surface   […]

5 Axis Vertical Machining Center-DMG -CMX 50U

Equipped with : 30 ATC 20 Bar thru spindle coolant Swarf conveyor Tool probe Part probe CNC : DMG MORI SLIMline SIEMENS Specifications : Spindle hours : 3 160 Table surface  dia 630 x 500 mm X axis stroke  500 mmY axis stroke 450 mmZ axis stroke 400 mm B axis   -5/+110° C axis  360° Max. load on table  200 kg Spindle speeds […]

TEACH IN CNC LATHE – HWACHEON – MEGA 100

Specifications : CNC :   FANUC 0i-TD avec Manual Guide Centre distance :   5 000  mm Swing over bed :   1 000  mm Swing over cross-slide :    720 mm Bed width :  700  mm Spindle bore :  155  mm Spindle speed 3 step gearbox :    40 to 750  RPM Main motor power :   22 kW Tailstock quill diameter : […]

CNC LATHE – HAAS SL-30TBHE

Specifications : CNC :   HAAS Swing over bed    :   762 mm Swing over cross slide  :   368 mm Distance between centres:  1000 mm Turret :  VDI 40 Spindle bore :  103 mm Spindle motor  :  30 kW Spindle speed max   :  3400 rpm Dimensions machine :  4100 x 1950 x 1880  mm Weight :  7,5 to Equipped with : Swarf conveyor VDI-tooling  High […]

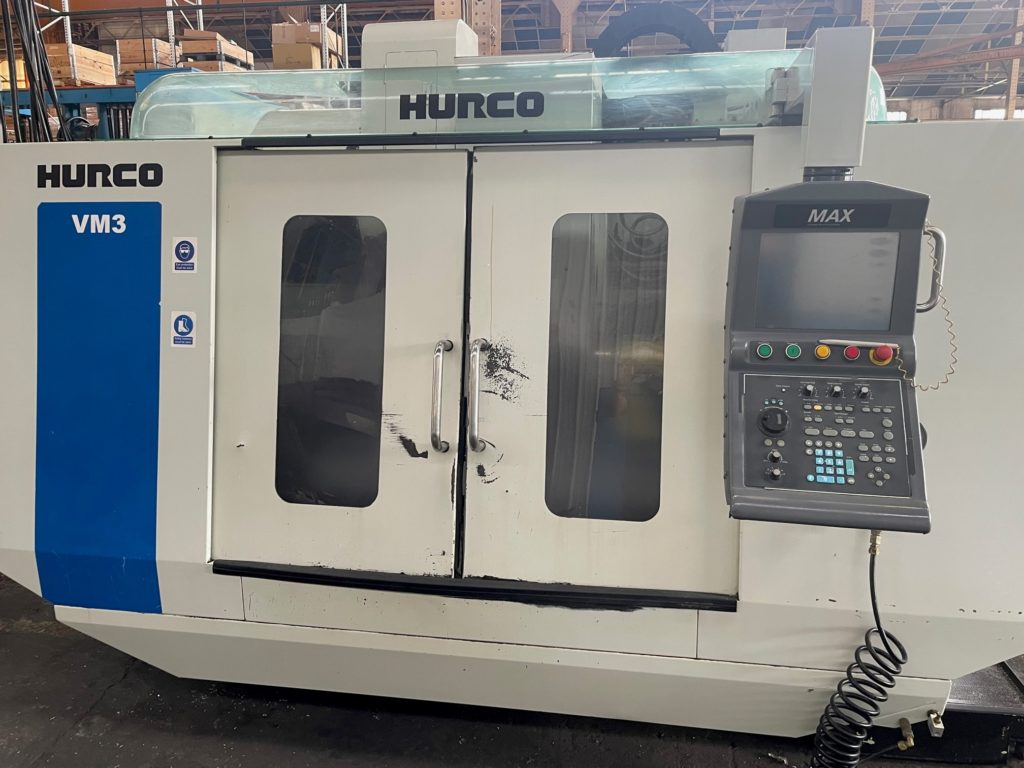

3 Axis Vertical Machining Center – HURCO VM3

Options: CNC : HURCO MAX 20 ATC Rigid tapping Specifications : Table surface   1 321 x 457 mm X stroke   1 270 mmY   stroke   457 mmZ   stroke  457 mm Max. table load   545 kg Spindle speed  1 – 8 000 RPM Spindle motor power  20 HP Spindle taper  BT 40Rapid traverse  20 m/minMachine dimensions approx.  2830 x 2 770 x H 2 […]

CNC RAM TYPE FLOOR BORING / MILLING – FPT – SPIRIT 250

Specifications : Travel   X  Longitudinal (column)   6 000 mm Y  Vertical (saddle)   5 000 mm Z  Transversal (spindle)  900 mm W Transversal (ram) 1500 mm B Rotation table  360.000 positions    V Infeed Table  1500 mm Spindle diameter  160 mm Spindle taper  SA 50 BIG +             Spindle motor power 71 kW Spindle speeds  1 to 3000 RPM Milling feeds  5000 mm/mn Rapid traverse  25000 […]
