Specifications :

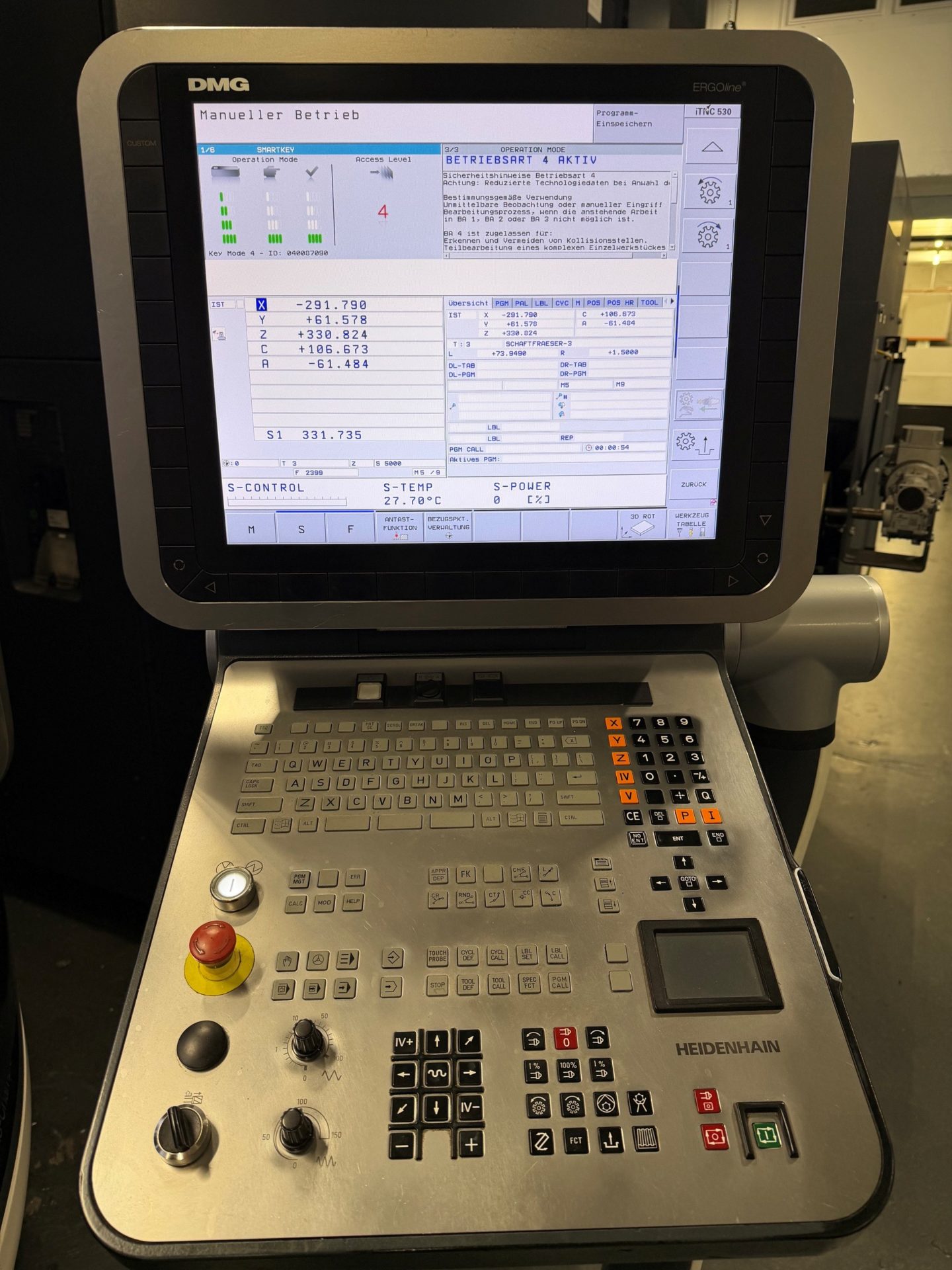

CNC : HEIDENHAIN iTNC530
Table surface 800 x 650 mm
X stroke 750 mm
Y stroke 650 mm
Z stroke 560 mm
B Axis -/+120°
C Axis 360.000°
Spindle speeds 2 – 18 000 RPM
Spindle power 35 KW
Spindle taper SK 40
Rapids 40 m/min
Approx. dimensions 3200 x 2600 x H 2900 mm
Approx. weight 11 600 kg
Equipped with :

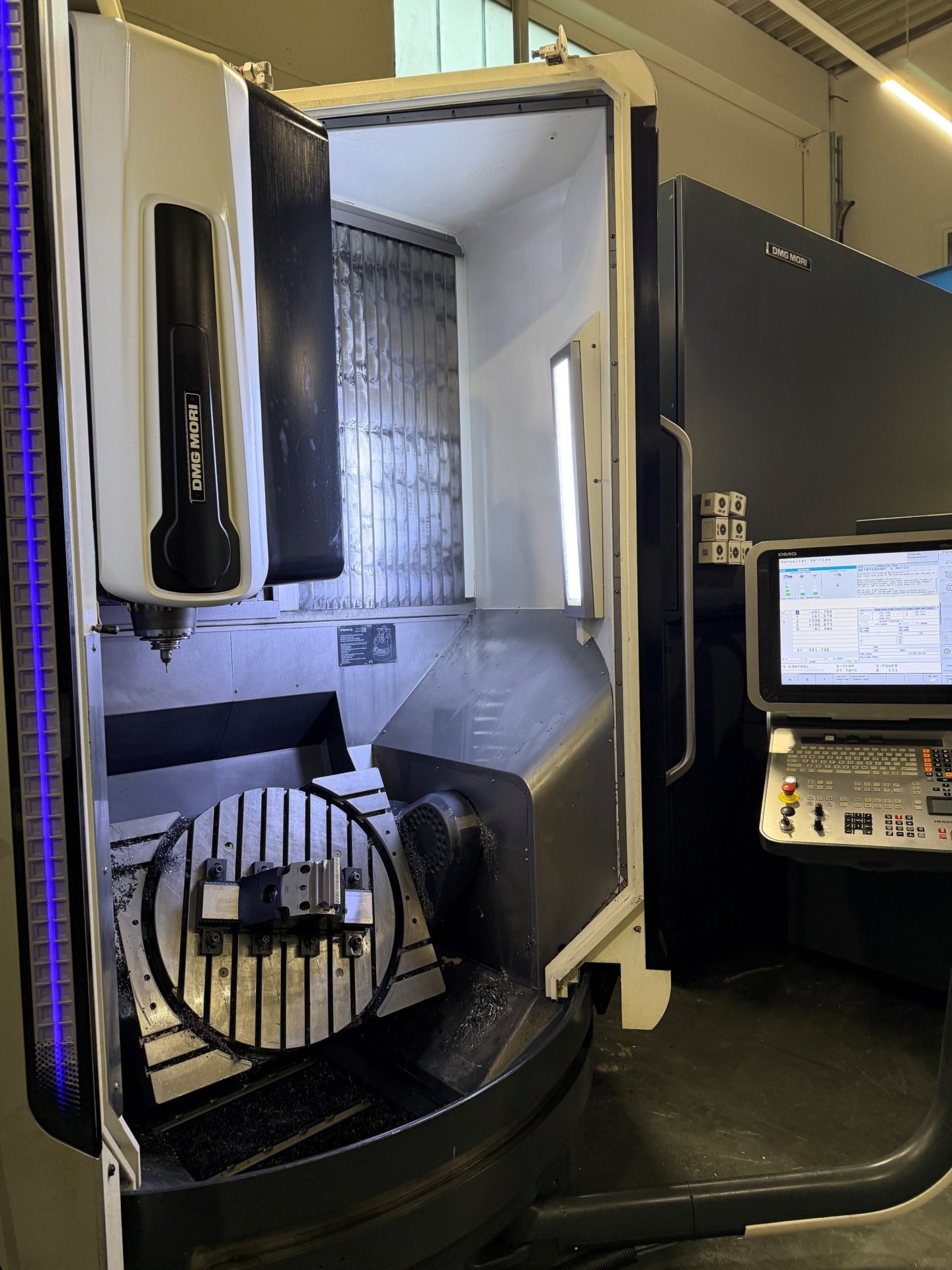

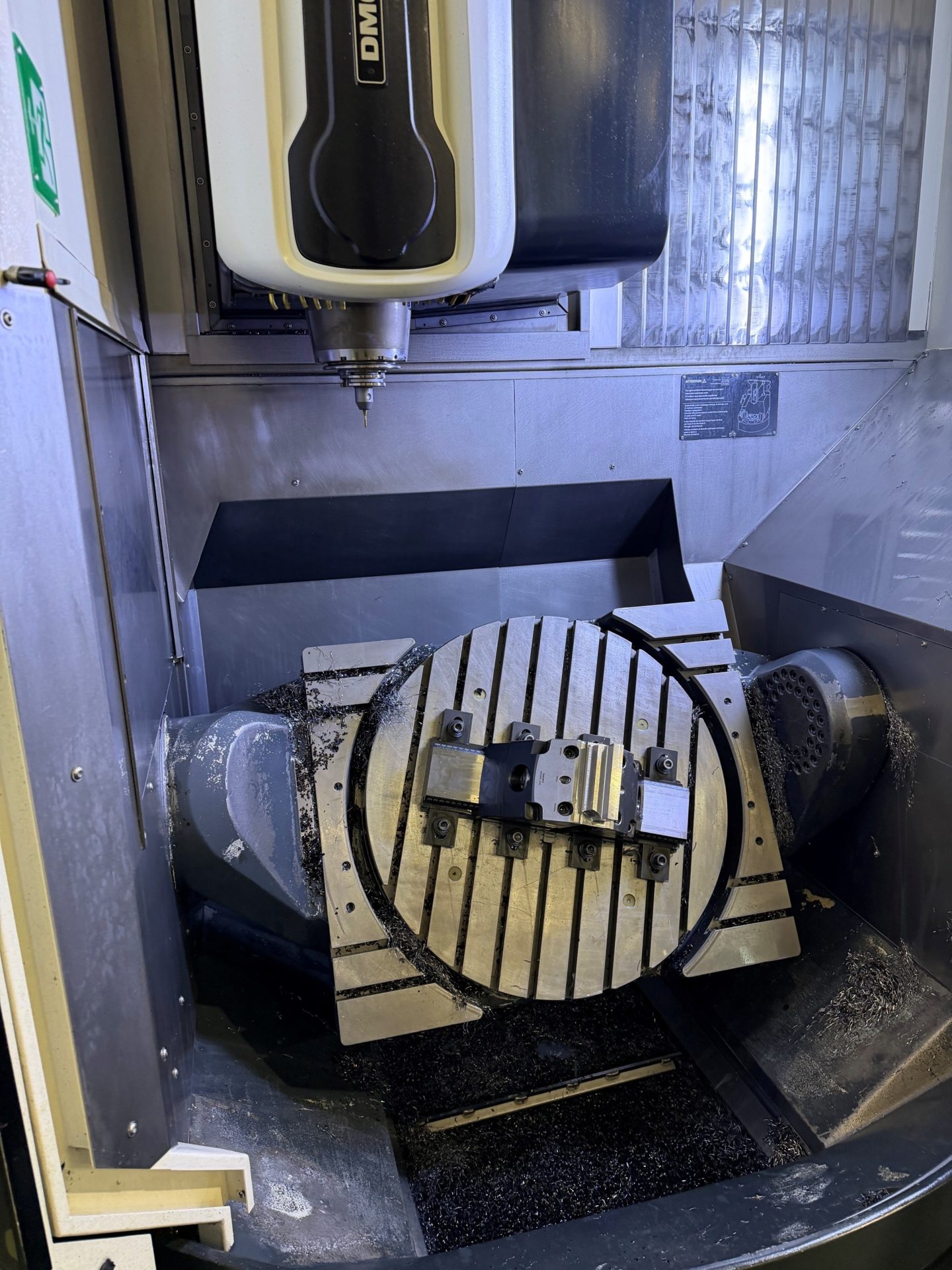

Integrated rotary table dia.600mm / 600kg
Spindle 35 kW – 18.000 RPM
60 ATC
Probe TS 649
3D quickset
40 Bar thru spindle coolant
600 litre coolant tank with paper filter
Tool probe
Coolant pistol
Swarf conveyor
