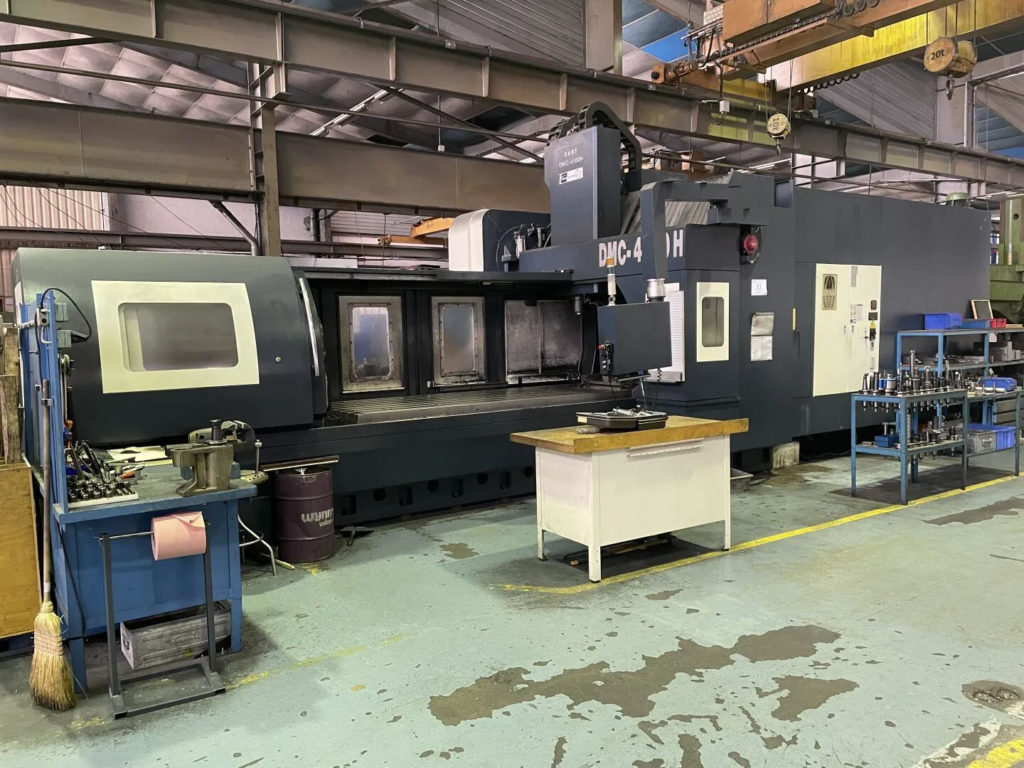

Centre d’usinage vertical à CN – 3 axes – JOHNFORD – DMC 4100 H

Options :CN : FANUC OiMC + manual guide + 8.4” LCD Magasin 24 outils BT50 Convoyeur à copeaux Manivelle électronique Broche 6000 tr/min – 15/18.5kw + boîte de Vitesse ZF Carénage complet Arrosage centre 20 bar avec filtre à double cartouche Spécifications : Courses X/Y/Z : 4200 x 1300 x 800 mm Table : 4000 x […]
3 Axis Vertical Machining Johnford DMC 4100 H

Options: CNC : FANUC OiMC + manual guide + 8.4” LCD 24 ATC BT 50 Swarf Conveyor Handwheel Through spindle coolant 20 bar Specifications : Travel X/Y/Z : 4200 x 1300 x 800 mm Table size : 4000 x 1100 mm Distance between columns : 1300 mm Spindle to table min / max : 150 – 950 mm Max table load […]
3 Axis Vertical Machining Center HURCO VMX 30

Options: CNC : ULTIMAX 4 24 ATC Swarf Conveyor Specifications : Table surface 1 020 x 510 mm X stroke 760 mmY stroke 510 mmZ stroke 610 mm Max. table load 1000 kg Spindle speed 10 – 10 000 RPM Spindle motor power 11 kW Spindle taper CAT 40Rapid traverse 30 m/minMachine dimensions approx. 2200 x 2 350 x H 2 750 […]
Centre d’usinage vertical 3 axes -HURCO-VMX 30

Options :CN : ULTIMAX 4 24 ATC Swarf Conveyor Spécifications : Table surface 1 020 x 510 mm X stroke 760 mmY stroke 510 mmZ stroke 610 mm Max. table load 1000 kg Spindle speed 10 – 10 000 RPM Spindle motor power 11 kW Spindle taper CAT 40Rapid traverse 30 m/minMachine dimensions approx. 2200 x 2 350 x H 2 […]

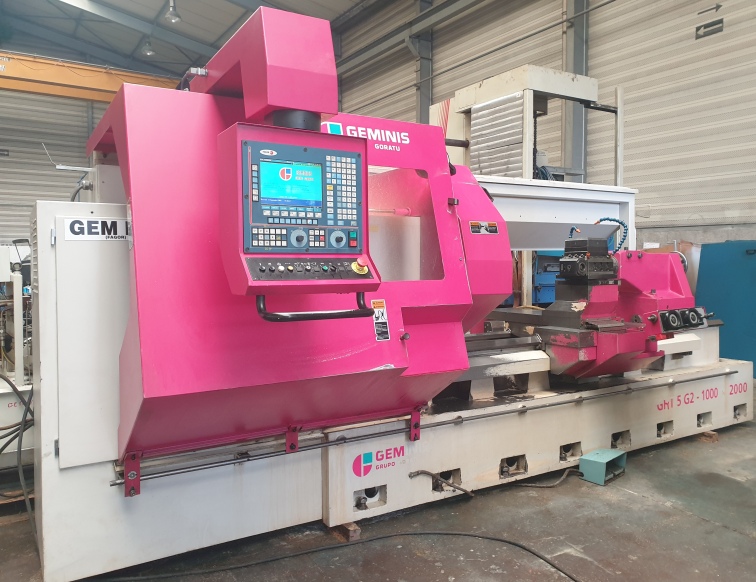

Teach in CNC Lathe GEMINIS GHT5 G2-1000×2000

Specifications : Centre distance : 2 000 mm Swing over bed : 1 000 mm Swing over cross-slide : 680 mm Bed width : 550 mm Spindle bore : 104 mm Spindle speed max. : 1 400 RPM Main motor power : 28 kW Tailstock quill diameter : 140 mm Tailstock quill stroke : 300 mm Equipped with: SAUTER […]
Tour parallèle à CN auto apprentissage – GEMINIS GHT 5 G2-1000×2000

Spécifications : Distance entre pointes : 2 000 mm Diamètre au dessus du Banc : 1 000 m Diamètre au dessus du Charriot : 680 mm Largeur de banc : 550 mm Alésage de broche : 104 mm Vitesse de rotation : 1 400 tr/min Moteur Broche principale : 28 kW Diamètre du fourreau de la cp : […]

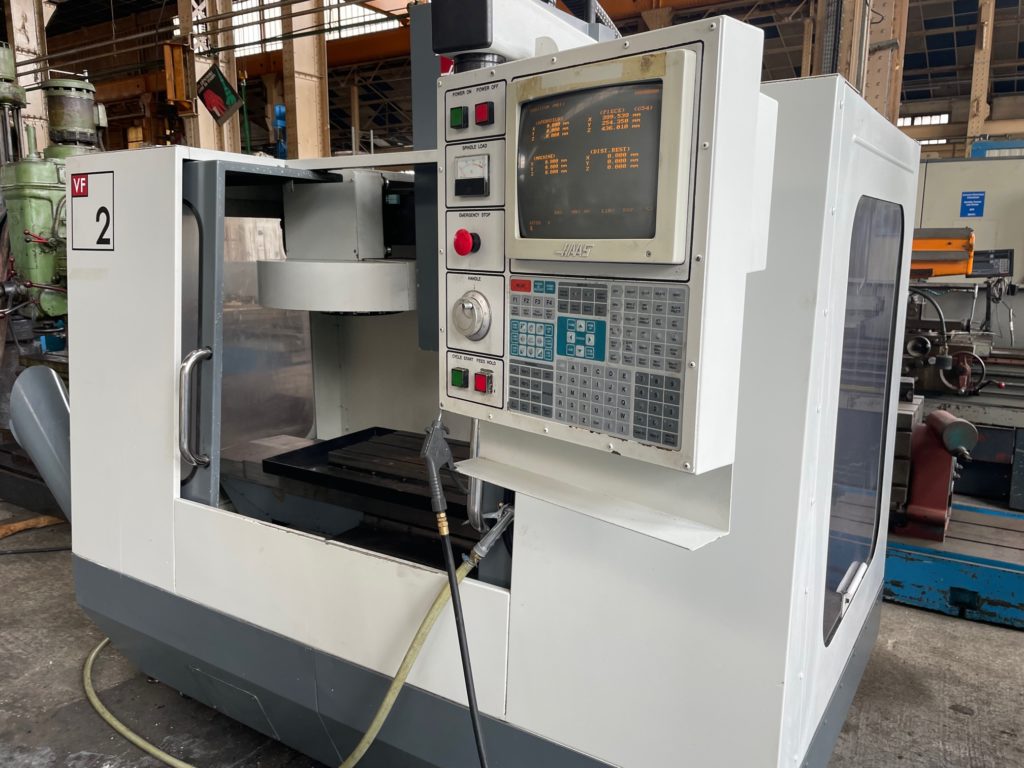

Vertical Machining Center HAAS VF 2

Options: CNC : HAAS Tooling package Specifications : X Stroke : 762 mm Y Stroke : 406 mm Z Stroke : 508 mm Table surface : 915 mm x 406mm Spindle motor power : 10 HP Spindle speeds: 1 to 7,500 RPM Taper : BT40 Rapid traverse XYZ: 18 m/min Machine weight : 4 t approx.
Centre d’usinage vertical HAAS VF 2

CN : HAAS Options : Outillages Spécifications : Course X : 762 mm Course Y : 406 mm Course Z : 508 mm Table: Surface de la table : 915 mm x 406mm Broche : Capacité du moteur de la broche : 10 CH Vitesse de la broche : 7,500 Tr/min Cône : BT40 Avance rapide […]

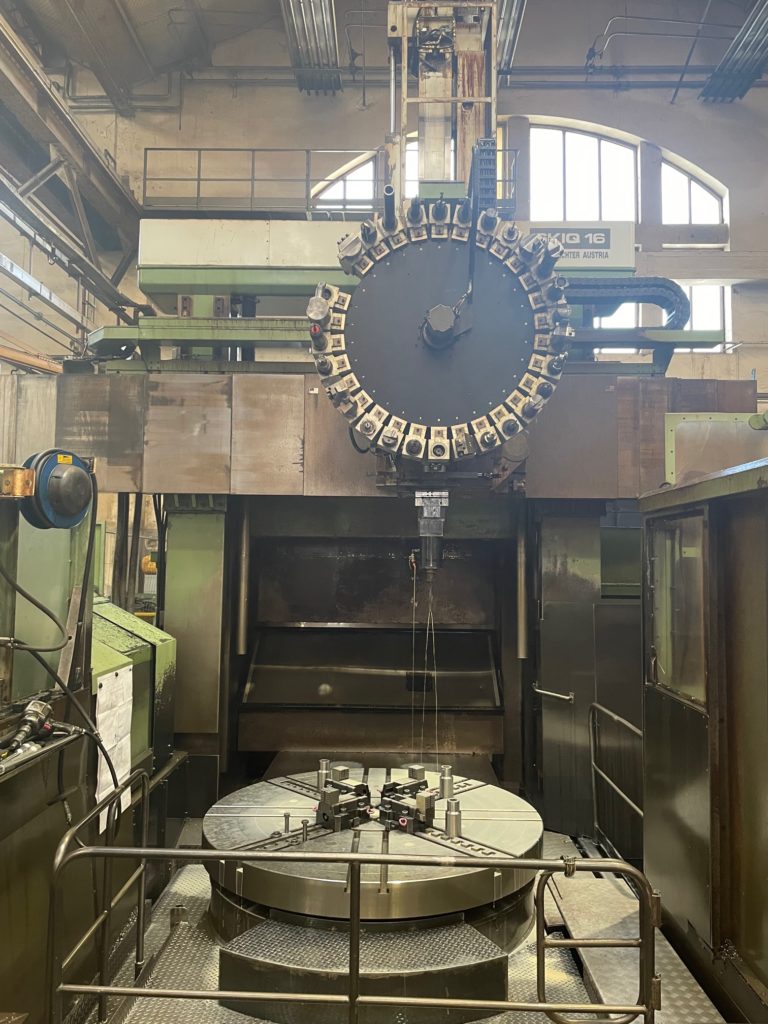

4 AXIS CNC VERTICAL BORER – TOS FEICHTER – SKIQ 16

Specifications : Turning capacities : Max. turning dia 2 800 mm Max. turning height 1 750 mm Max. workpiece weight 20 000 kg Spindle: Table dia (Manual chuck) 2000 mm Rang of table speed 1-250 RPM Live tool spindle speed 2-3000 RPM ATC: Automatic tool change 30 Cross-section of ram 250 x […]
Tour vertical à CN – 4 Axes – TOS FEICHTER – SKIQ 16

Spécifications : Capacités de tournage : Diamètre maxi 2 800 mm Hauteur maxi 1 750 mm Charge maxi 20 000 kg Plateau : Diamètre de plateau (4 mors indépendants) 2000 mm Vitesse de rotation 1-250 tr/mn Vitesse de rotation broche de fraisage 2-3000 tr/mn Chageur d’outils automatique : 30 cases Section du coulant : 250 x 250 mm Avances: Rapides Axe X 10 m/mn […]
