Spécifications :

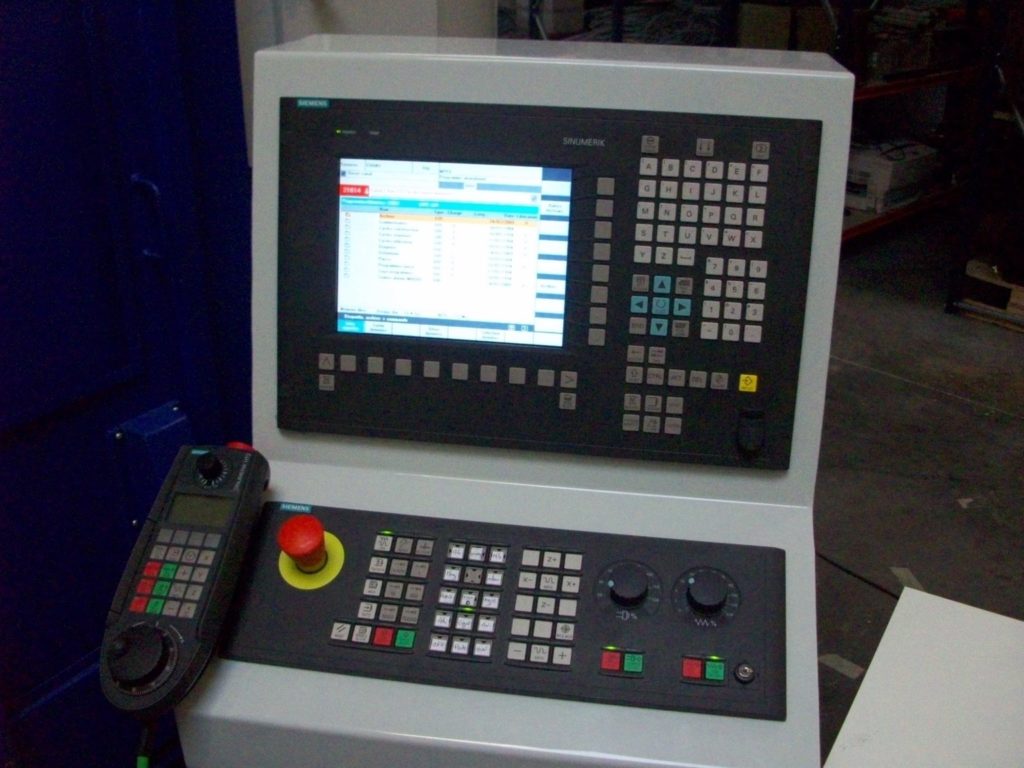

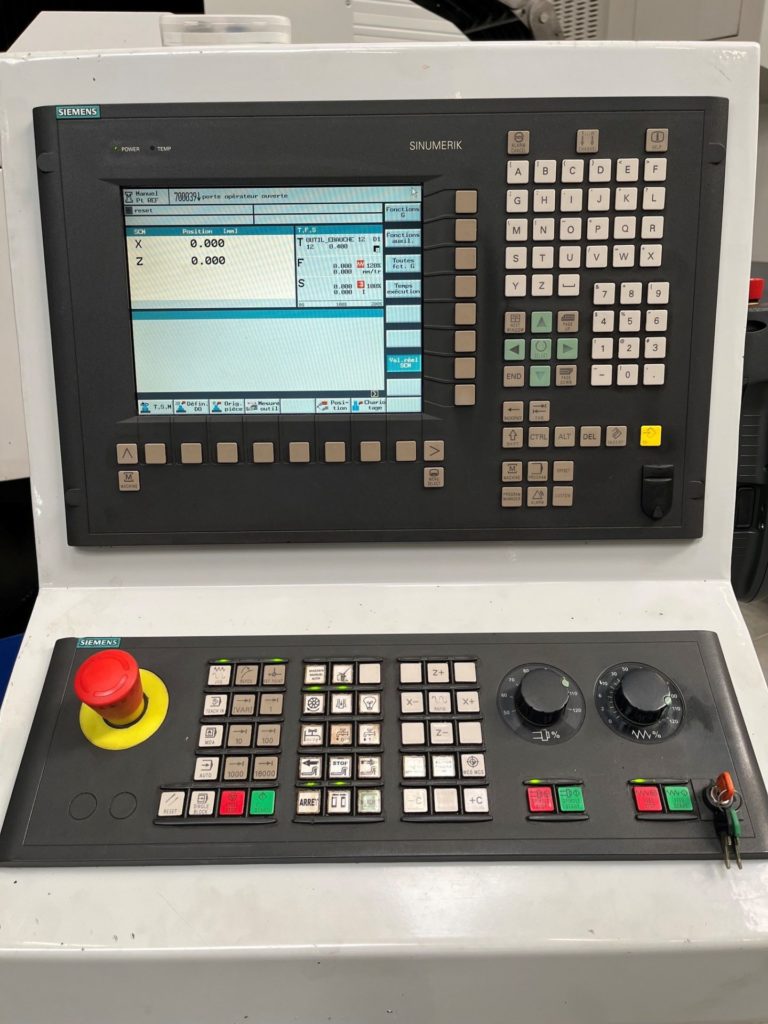

CNC :   SIEMENS 840DSL

Year 1981 / retrofitted in 2009

Chuck diameter     1 600 mm

Max. turning diameter    1 880  mm

Max. turning height     1 600 mm

Vertical stroke of cross rail   1 300 mm

Chuck speeds   2 to 250 RPM

Chuck motor power   60 kW

Chuck max. load   15 T

Cross rail speed   400 mm/min

Ram section  200 x 200 mm

Ram stroke   1 000 mm

Saddle stroke right of chuck axis  1 070 mm

Saddle stroke left of chuck axis  approx. 900 mm

Equipped with :

HEIDENHAIN scales

SIEMENS AC 37/45 kW main motor

ATC 12 positions

Swarf conveyor

Tooling package
