Specifications :

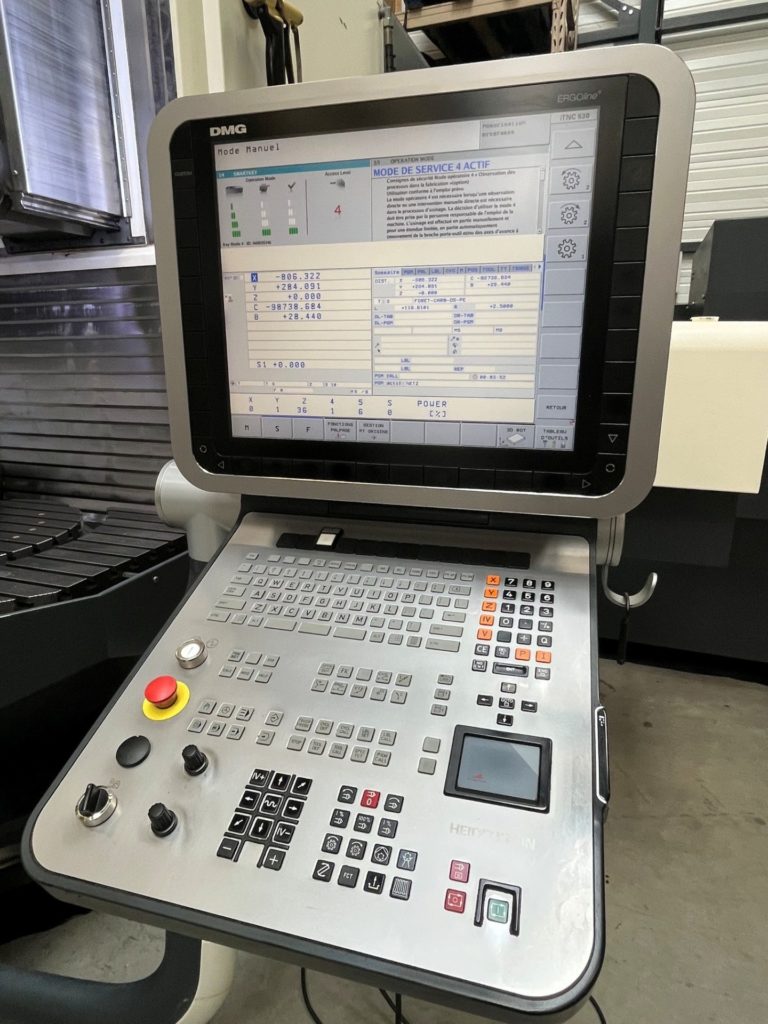

CNC : Heidenhain iTNC 530
| Table clamping surface | 1250 x 700 mm |
| Stroke X axis | 880 mm |
| Stroke Y axis | 630 mm |
| Stroke Z axis | 630 mm |
| B axis | -120/+30° |
| C axis | 360.000° |
| Spindle speeds | 20 – 12 000RPM |
| Main motor power | 29 /19 kW |
| Spindle taper | SK 40 |
| Rapides XYZ | 42 m/min |
Machine dimensions inc.swarf conveyor 3440 x 2850 x H 2750 mm
Poids environ 7 480 kg
Equipped with :
10 600 spindle hours

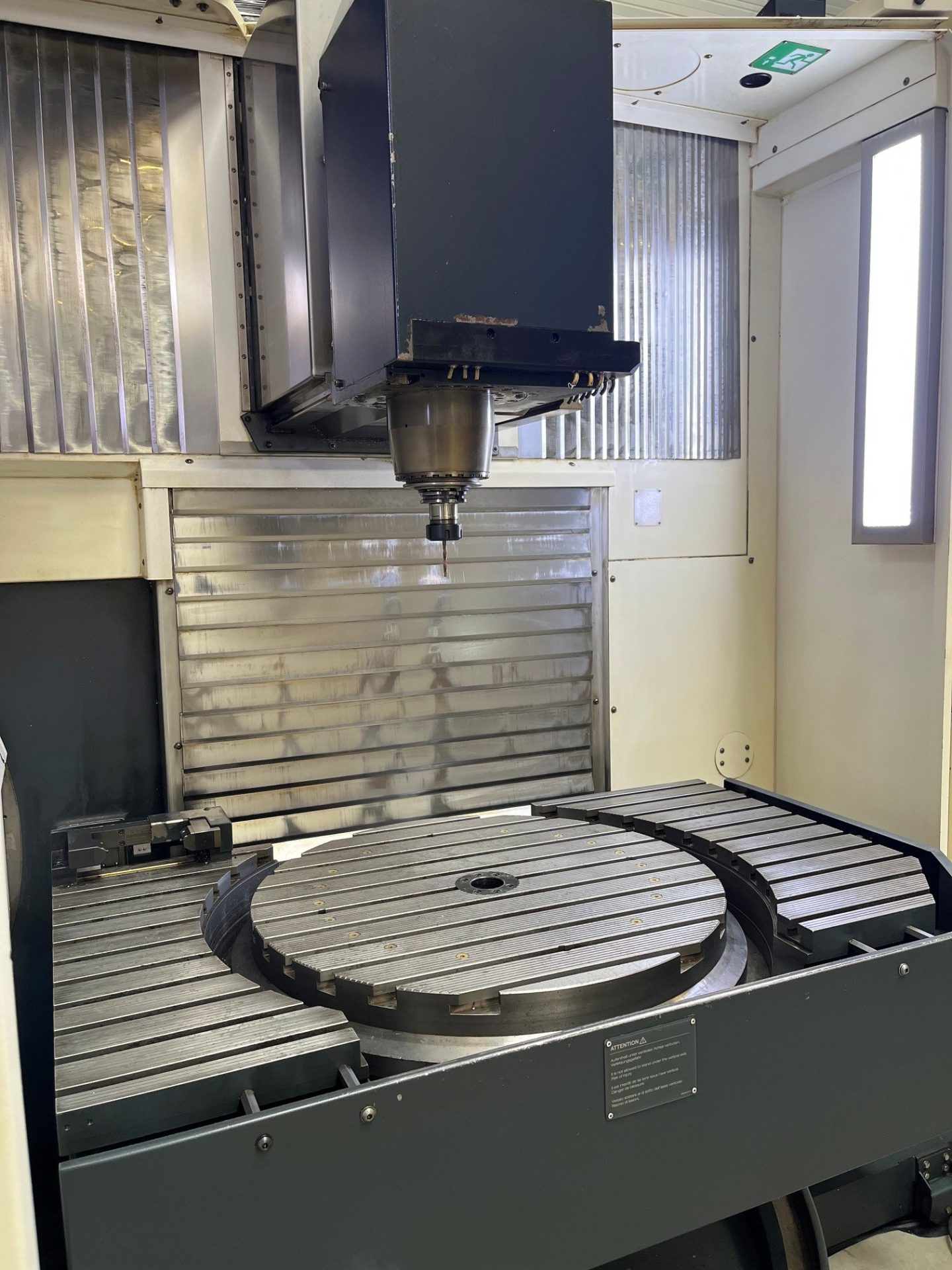

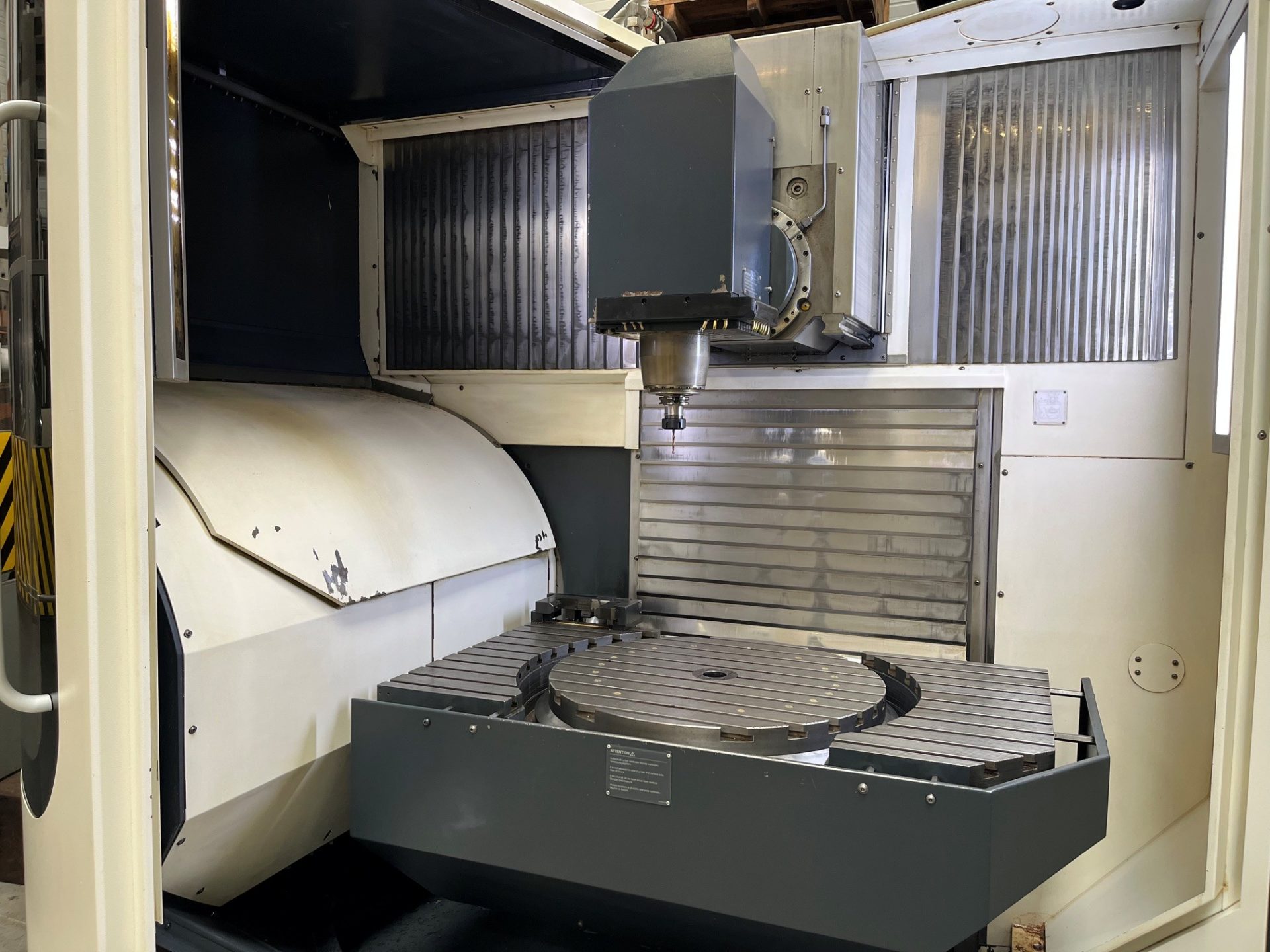

Integrated rotary table dia.700 mm / 650kg
29 kW Spindle – 12.000 tr/min
32 ATC
TS 649 Part Probe

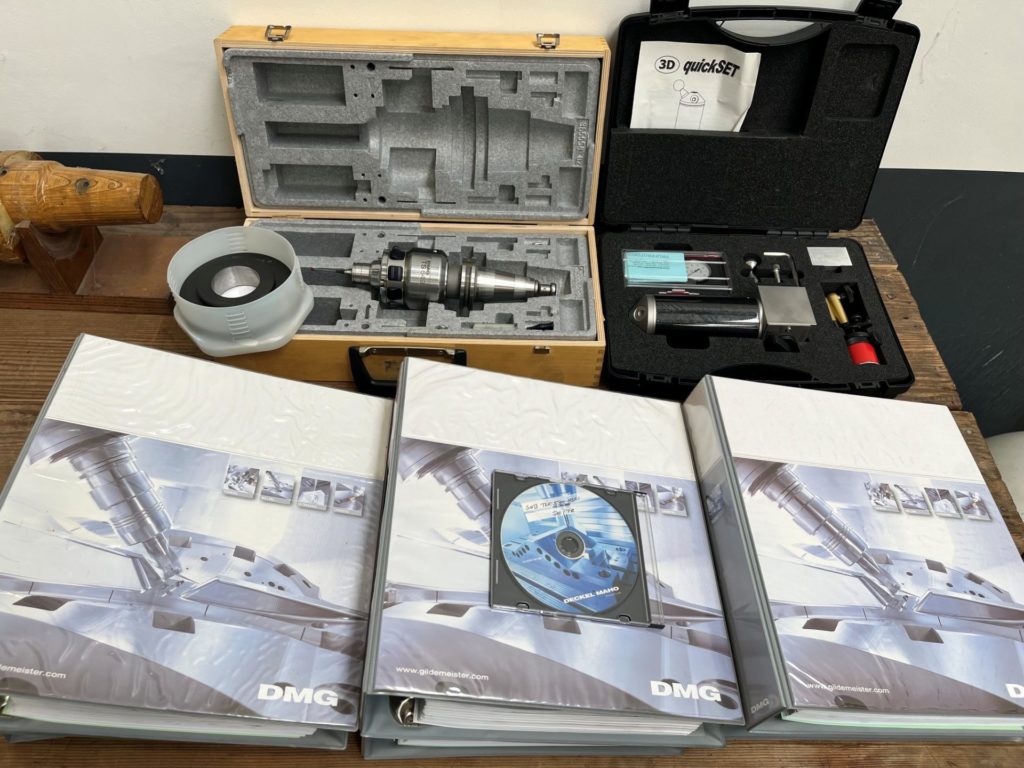

3D Quickset
40 Bar through spindle coolant
600 litre coolant tank with paper filter
BLUM Laser tool probe
Coolant gun
Swarf Conveyor
