Specifications :

2400 hours cut time

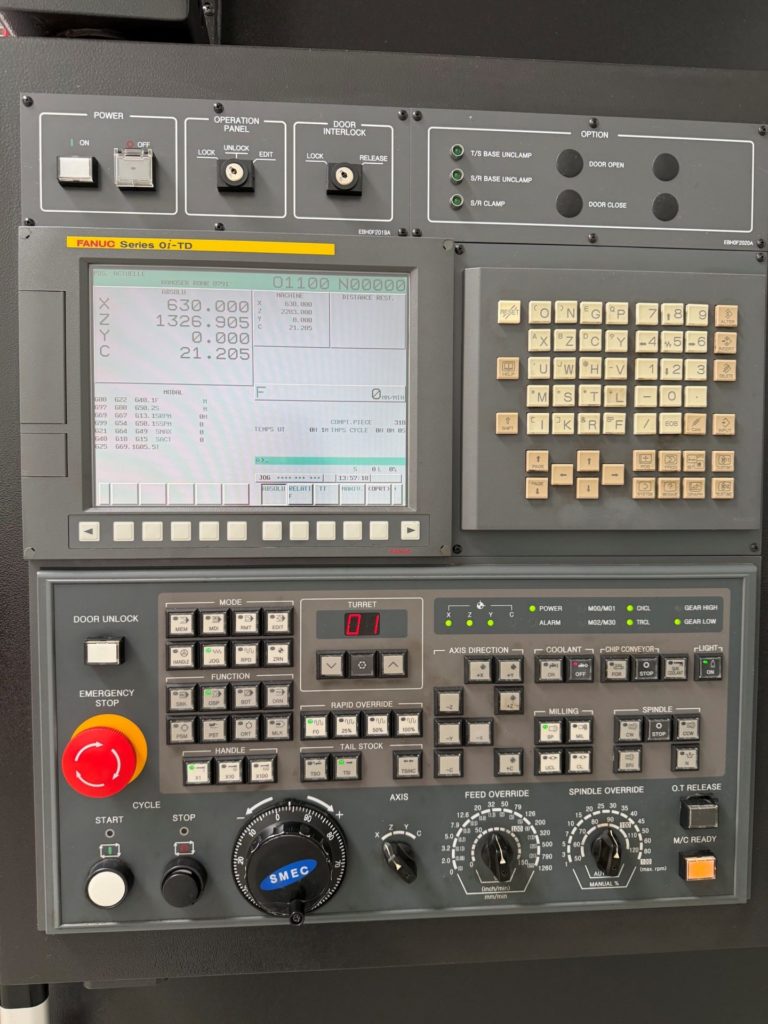

CNC :   FANUC oi-TD + manual guide

Max swing   775 mm

Max turn Ø    690 mm

Centre distance   2 255 mm

Spindle bore   118 mm

Max spindle speeds   2 000 RPM

Max live spindle speeds    4 000 RPM

Main motor power   37 kW

Dimensions  5.570 x 2300 mm

Weight   17 000 kg

Equipped with :

C Axis 360.000 pos

Y axis 120 mm (+/- 60 mm)

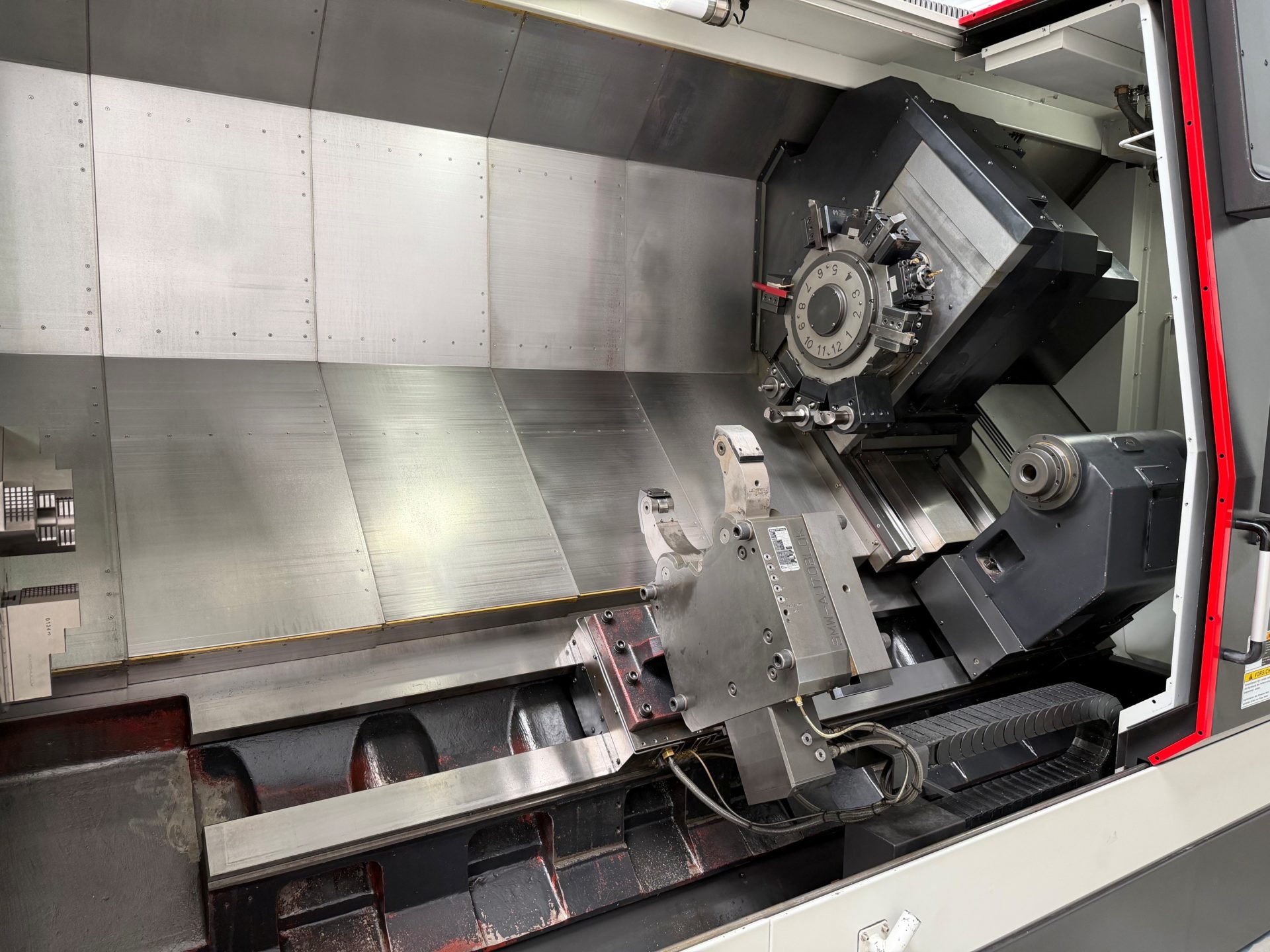

12 station BMT 75 Turret

 450mm ø3 Jaw hydraulic chuck

 30 Bar Coolant

 SMW AUTOBLOC hydraulic steady 30 to 240 mm

 Tool Eye

 Programmable tailstock

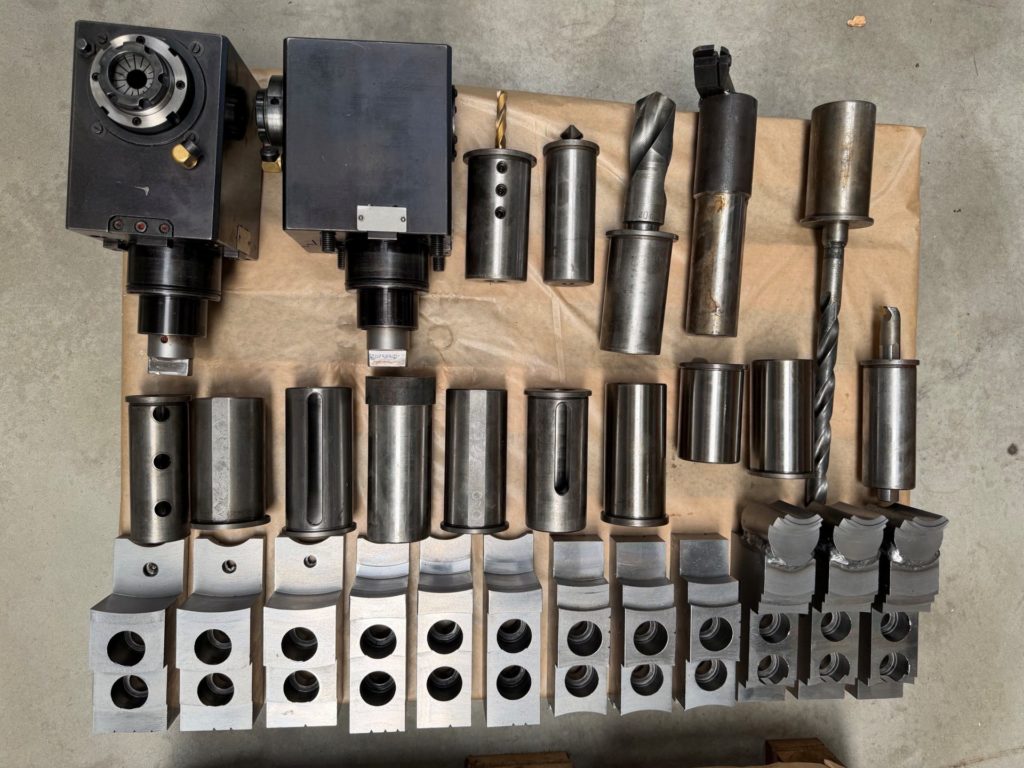

 Tooling package inc. 2 axial & 2 radial live tools

 Swarf Conveyor

 Coolant gun
