Specifications :

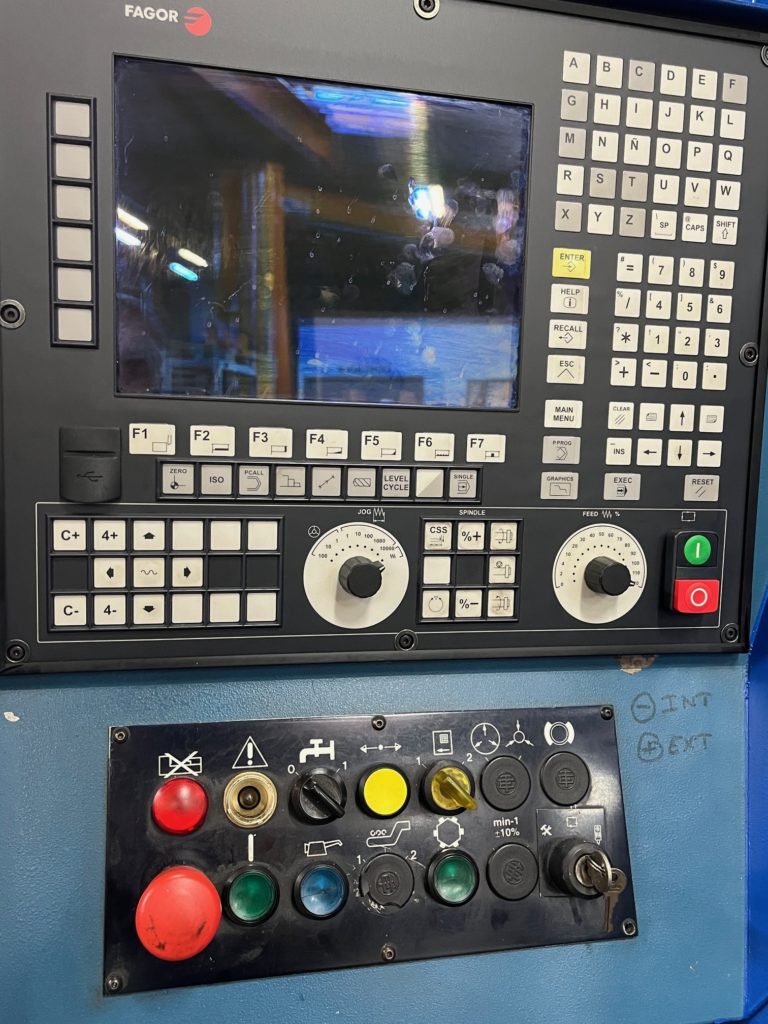

CNC : FAGOR 8055
Centre distance : 4 000 mm
Swing over bed : 1 000 mm
Swing over cross-slide : 680 mm
Bed width : 550 mm
Max load : 4800 kg
Spindle bore : 104 mm
Spindle speeds 4 ranges : 0 to 500 RPM
Main motor power : 30 kW
Tailstock quill diameter : 140 mm
Tailstock quill stroke : 300 mm
Equipped with :
SAUTER 4 position automatic turret
Coolant system
3 jaw chuck dia. 500

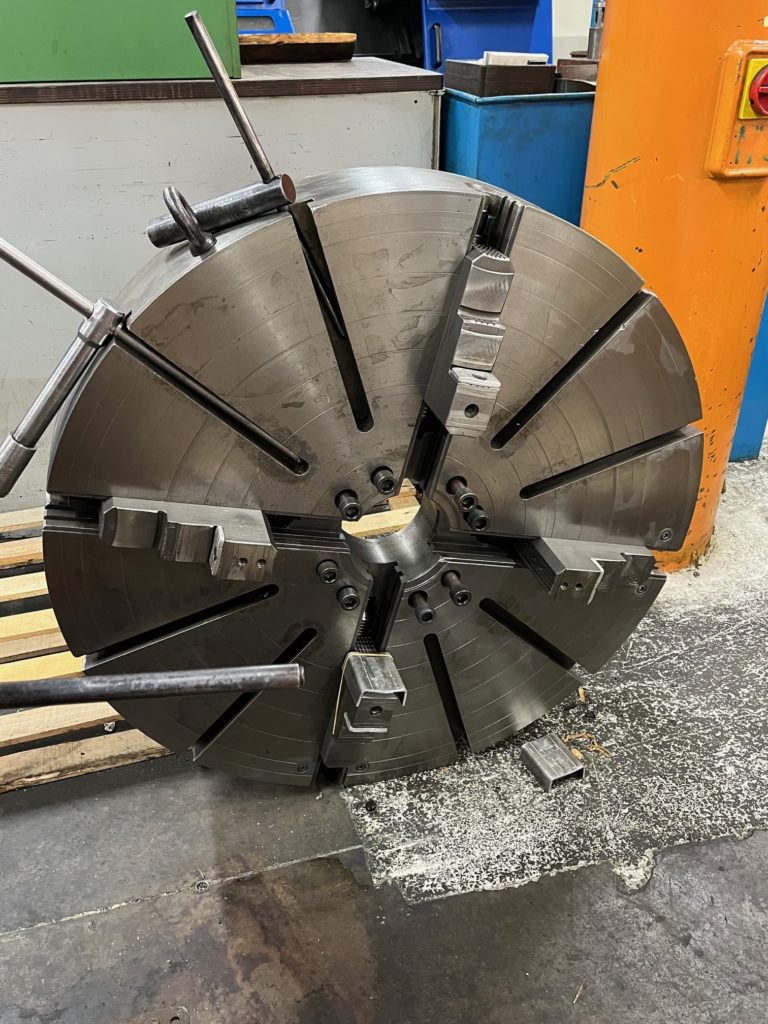

4 jax Chuck dia. 1000
4 point steady rest
