Specifications:
Swing over bed 2 200 mm
Turn dia over cross-slide 2 000 mm
Distance between centres 10 000 mm
Max load 15 000kg
Spindle speeds, 4 mechanical ranges 1- 100 RPM

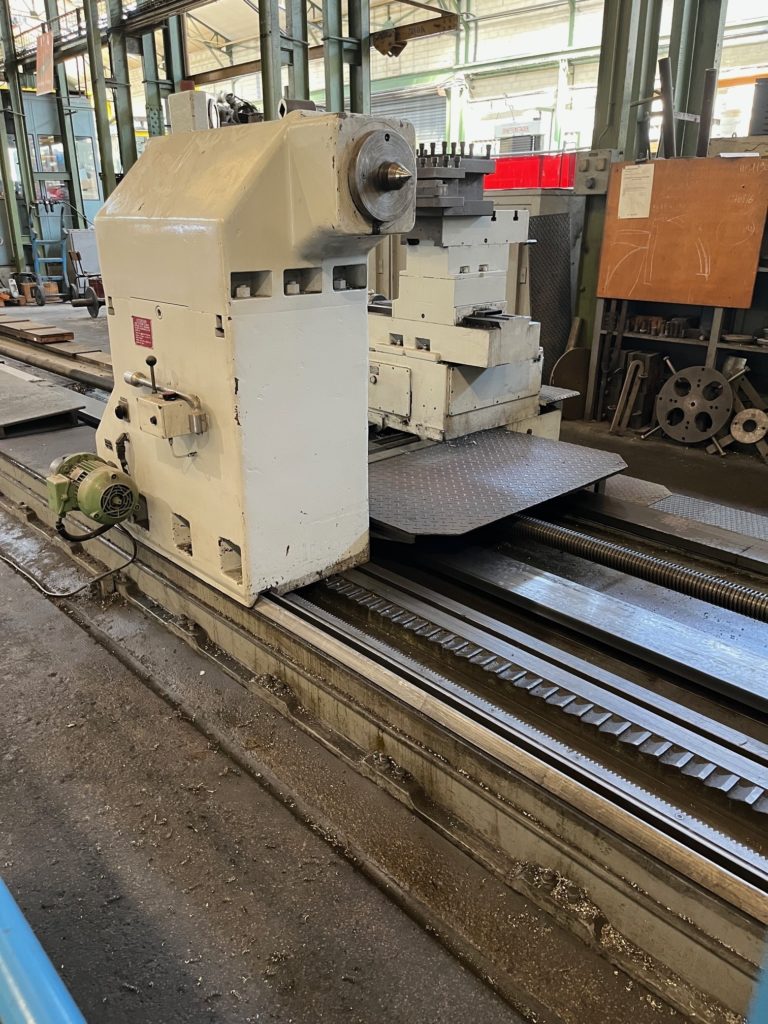

Tailstock quill dia. 190mm
Tailstock quill stroke 310 mm
Main motor power 40 HP
Equipped with :

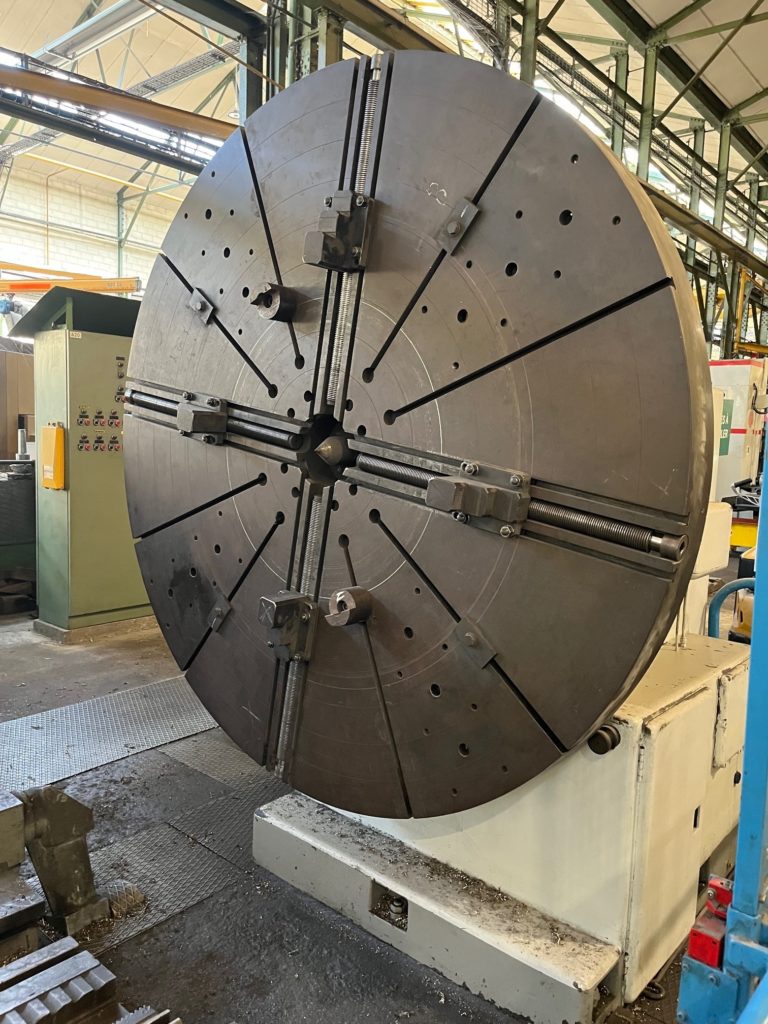

2000 mm dia. 4 jaw Chuck
3 off Roller steadies
