Specifications :

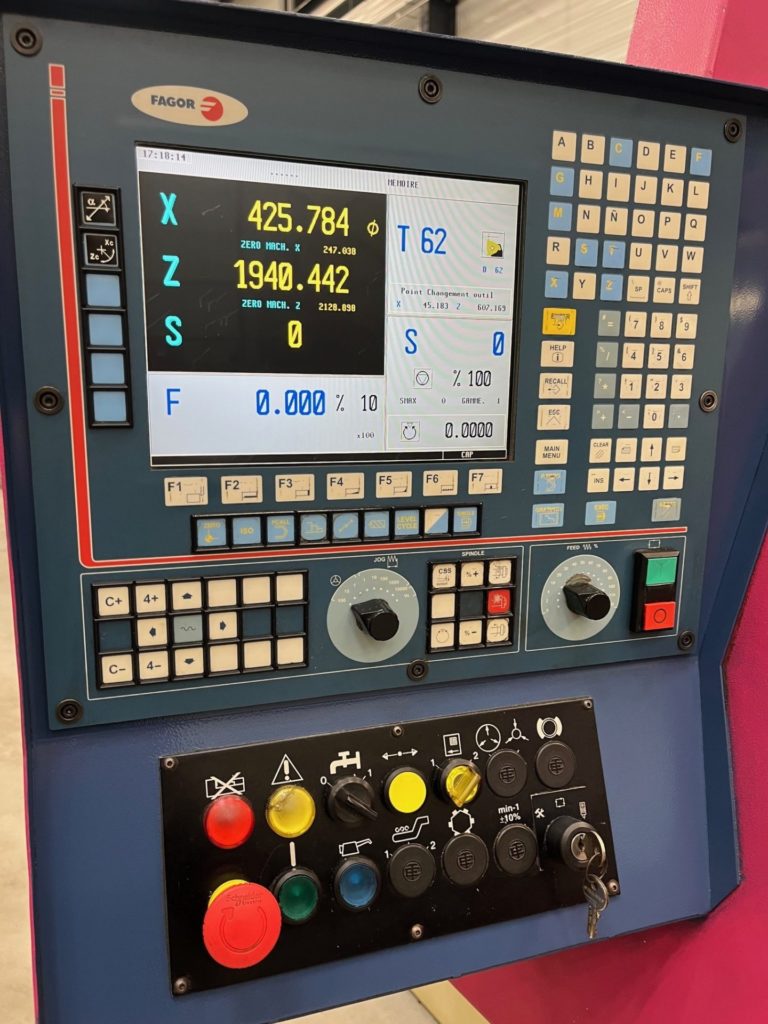

CNC : FAGOR 8055TC
Swing over bed 720 mm
Swing over saddle 470 mm
Max turn length 3 000 mm
Spindle bore 104 mm
Spindle speeds 0 à 1600 RPM
Tailstock quill dia 100 mm MT6
Tailstock quill stroke 220 mm
Main motor power 17 kW
Dimensions 5800 x 2200 x ht 1800mm
Weight 2665 kg
Equipped with :
Equipped with :
3 jaw manual chuck 300 mm dia.

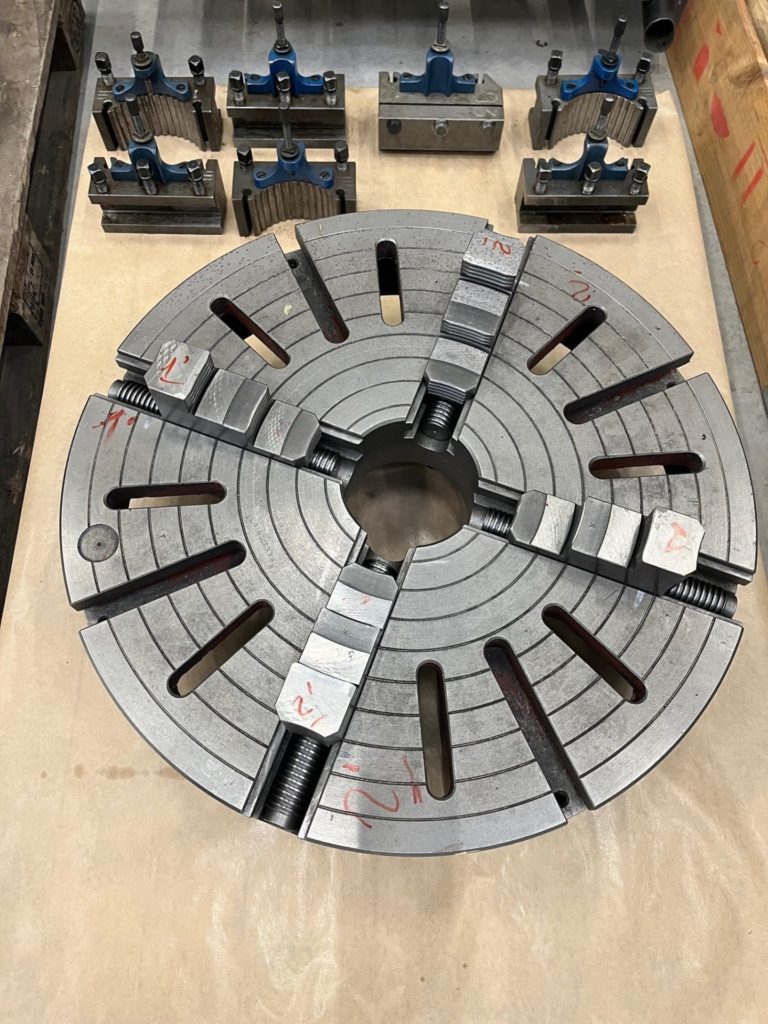

4 Jaw manual chuck dia. 630 mm
3 point steady rest 200 mm dia.
3 point steady rest 400 mm dia.
Travelling steady
