Equipped with :
Universal milling head
Specifications :

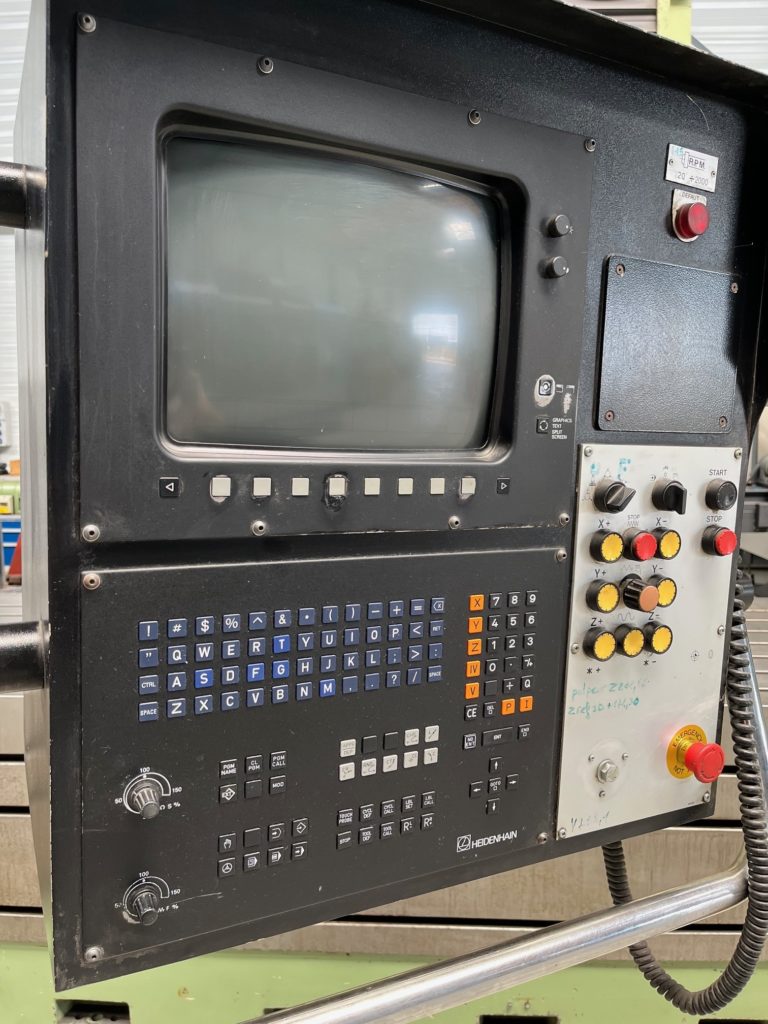

CNC : Heidenhain TNC 415
X axis stroke 3 200 mm
Y axis stroke 1 200 mm
Z stroke (vertical) 1 250 mm
Table dimensions 5 000 x 1000 mm
Max.table load 15 000 kg
X/Y/Z 12 000 mm/min
Spindle taper ISO 50
Spindle motor power 22 KW
Spindle speeds 2 à 2 000 RPM
Total required power 46 Kva
Machine weight 25T Approx.
Dimensions 7 600 x 3 900 x 3 200 mm
