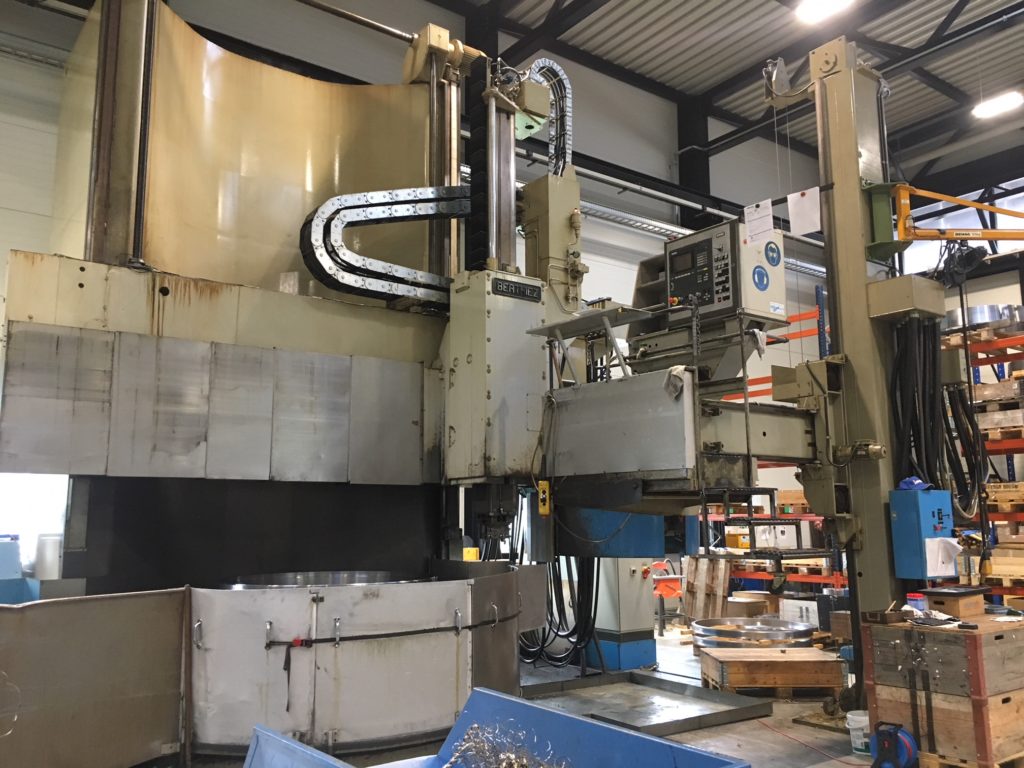

CNC VERTICAL BORER BERTHIEZ LVT 125

CNC NUM 1060 Equipped with : Coolant thru ram center4 jaw hydraulic chuckC axis positioning (No live tools)20 ATCChip conveyorRenishaw probe device Specifications : Capacities :Max. swing  2 000 mmMax. height 1 300 mmVertical ram travel 1 250 mmChuck diameter 1 250 mm Max load on chuck 10 TMain motor power 55 kW Chuck […]

Rotary Table UNION TI 1800

Specifications : Table surface 2 000 x 1 800 mmMax. load on table 12,5 TLongitudinal travel 1 250 mmIndexing 360 °Table speeds 0,08 to 2,8 RPMFeed rates 0,63 – 2 000 mm/minPower required 4 kWWeight 7,6 T

NATIONAL 625 – 5 die cold former

Specifications : Universal transferSpeed 70 – 100 PPMMaximum kick-out 70 mmMaximum blank length 60 mmCut-off capacity 16 to 19 mmKick-out stroke in punch 33 mmMain motor power 25 kWWeight 18 TDimensions 4 400 x 2 200 x 1 850 mm

SASPI GV 3-20-1E-S3D flat die thread rolling machine

Specifications : SCHWER & KOPKA monitoring deviceFeederLot of toolingsDies from M4 to M12Injector platesDiameter M4 to M12Blank length 100 mmThread length 75 mmPPM (vari-speed motor) 25 – 220Motor power 20 HPMachine weight 4 TMachine dimensions 4 000 x 2 400 x H 2 800 mmDies SASPI standard171 x 30’2 x 79’4152’4 x 30’2 x 79’4Dies […]

CNC VERTICAL BORER BERTHIEZ TFM 125

Equipped with : Automatic tool changer 12 Specifications : Chuck Ø 1 250 mmMax. turning Ø 1 550 mmMax. turning height 1 300 mmRam vertical stroke 1 000 mmChuck speed 2,5 – 315 RPMRapids 1 – 6 000 mm/minMain motor power 37 kWMax. load on chuck 10 T
