Equipped with :

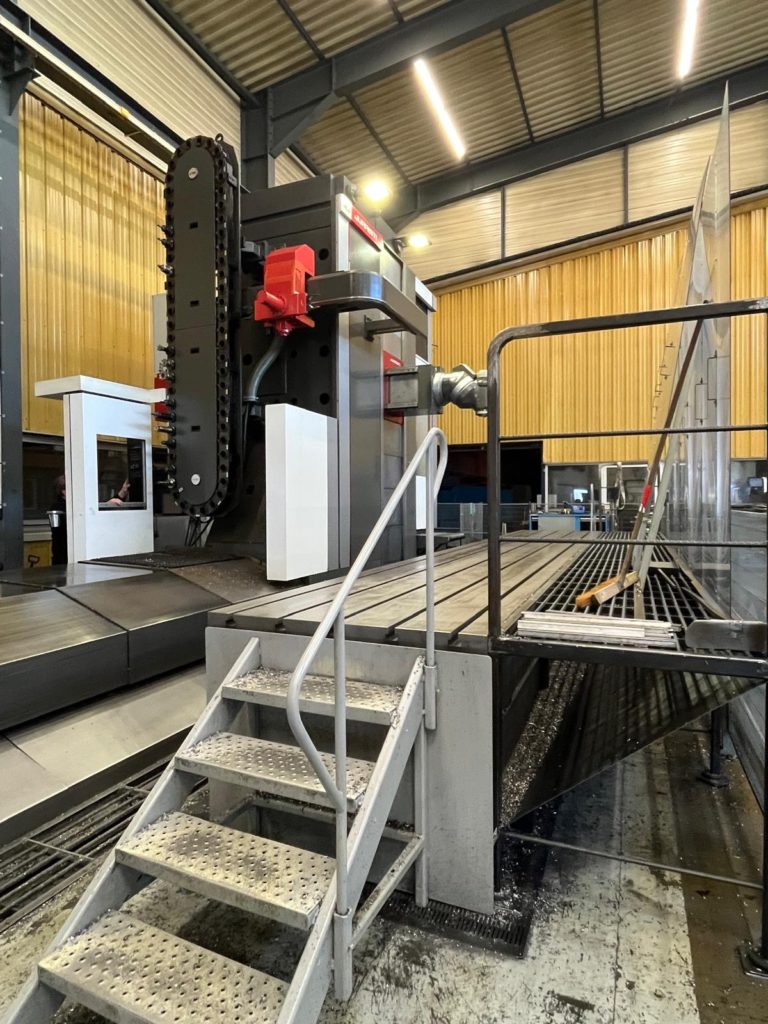

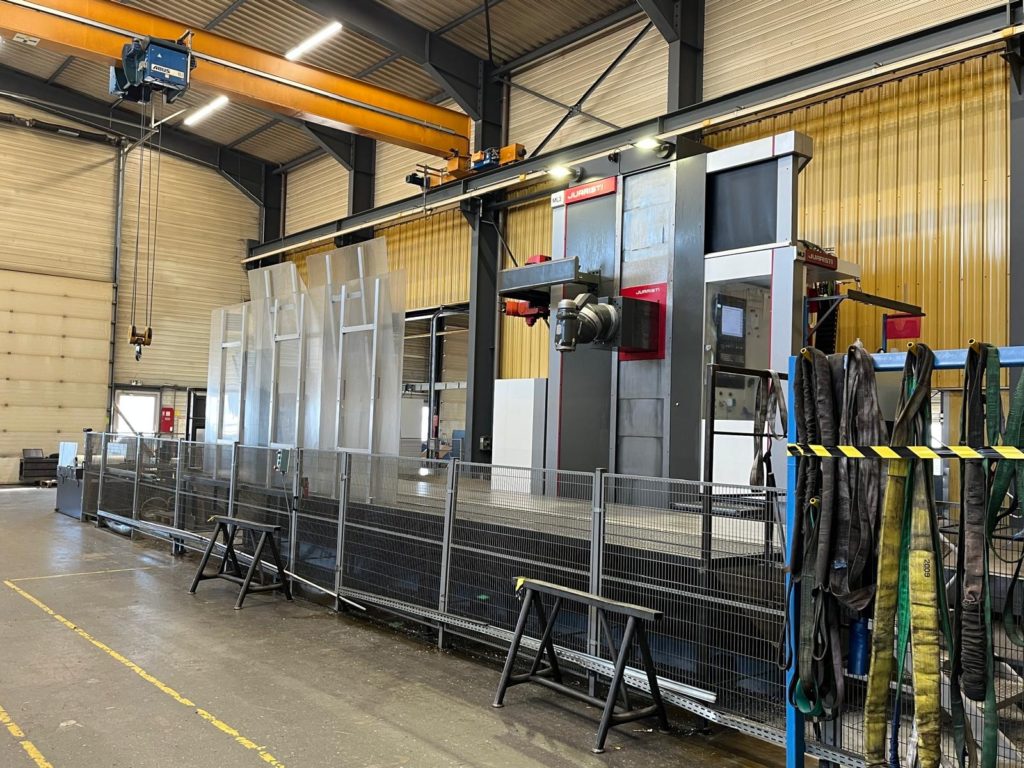

Travelling Column High performance, precision and machining power

Linear guiding of RAM combined with Hydrostatic Guiding HDS

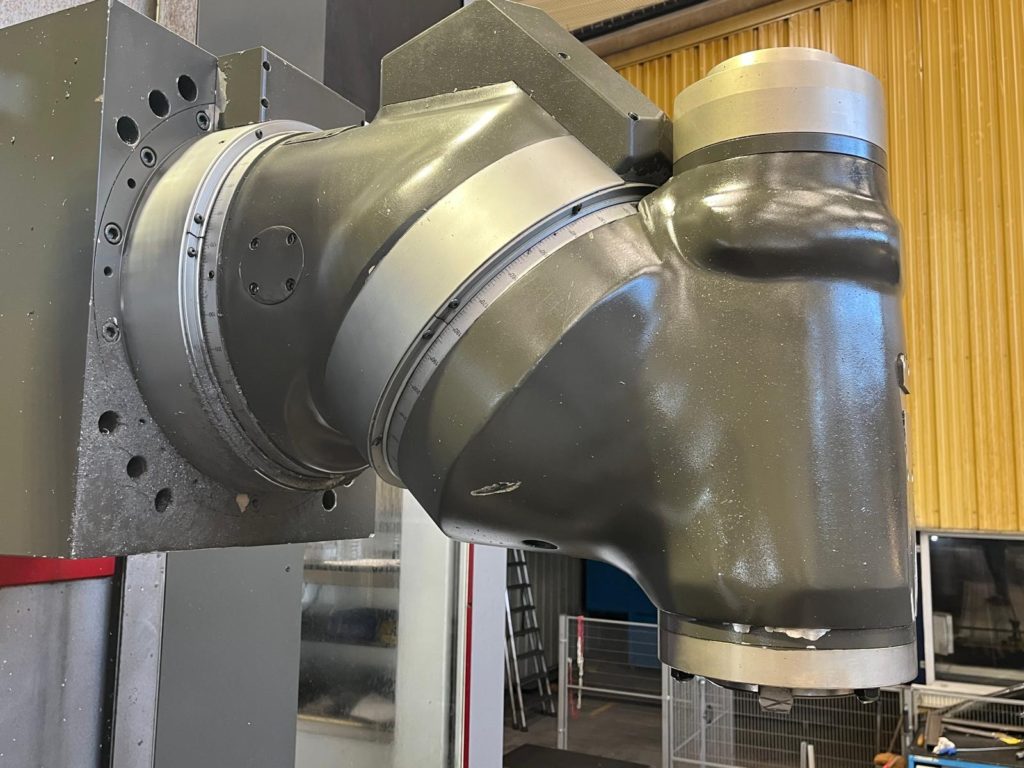

ACD2 Milling head with 6000 Rpm and 1400 Nm torqe

Aitek ATC chain 60 position with L=400 and 250 diameter x 35 Kg

Filtration 15 Bar with thru spindle coolant

Chip conveyor

BLUM 3D Measuring probe

Wide bed linear guided in X-Travel W=930 mm

Rotary table driver prepared in E-Cabinet

Specifications :

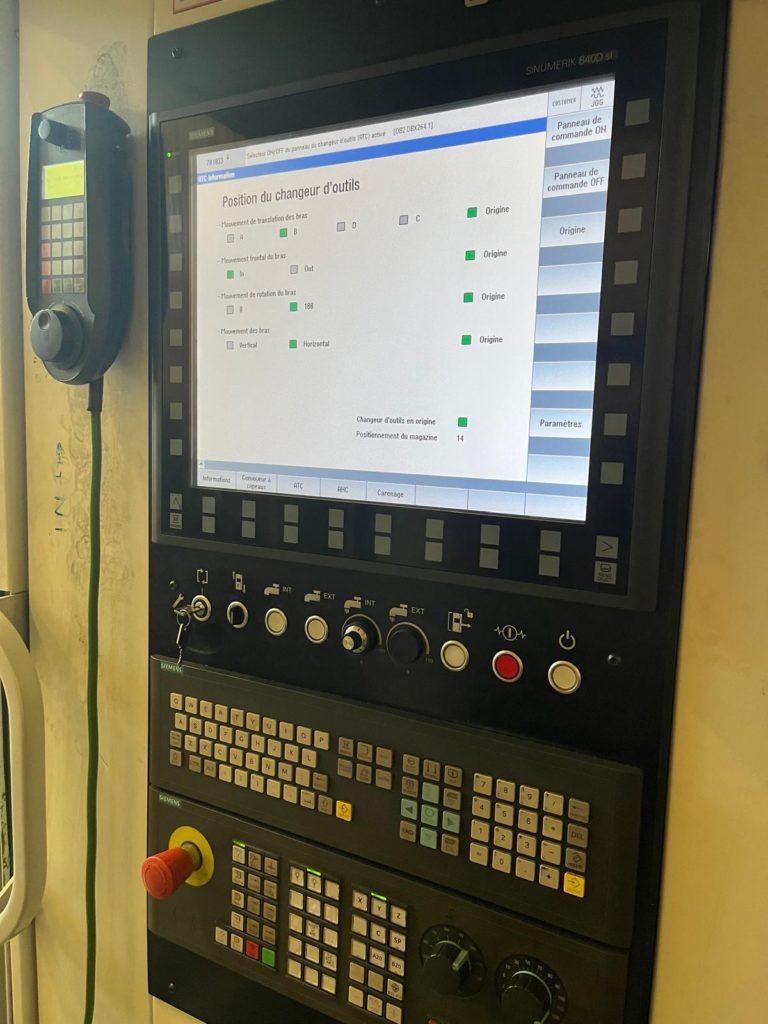

CNC : Siemens 840D-SL

Longitudinal traverse X axis   8 000 mm

Transversal traverse Y axis  1 300 mm

Vertical traverse Z axis   2 500 mm

A axis head   0.001°

B axis head   0.001°

Table size   10 000 x 1 250 mm

Spindle Taper   50 ISO/Bt/Mk

Spindle speed   6 000 RPM

Spindle power  40 kW

Feed rate X-Axis  35 000 mm/min

Dimensions  13 500 x 5 800 x 4 500 mm

Weight   45 000 kg
