Specifications :

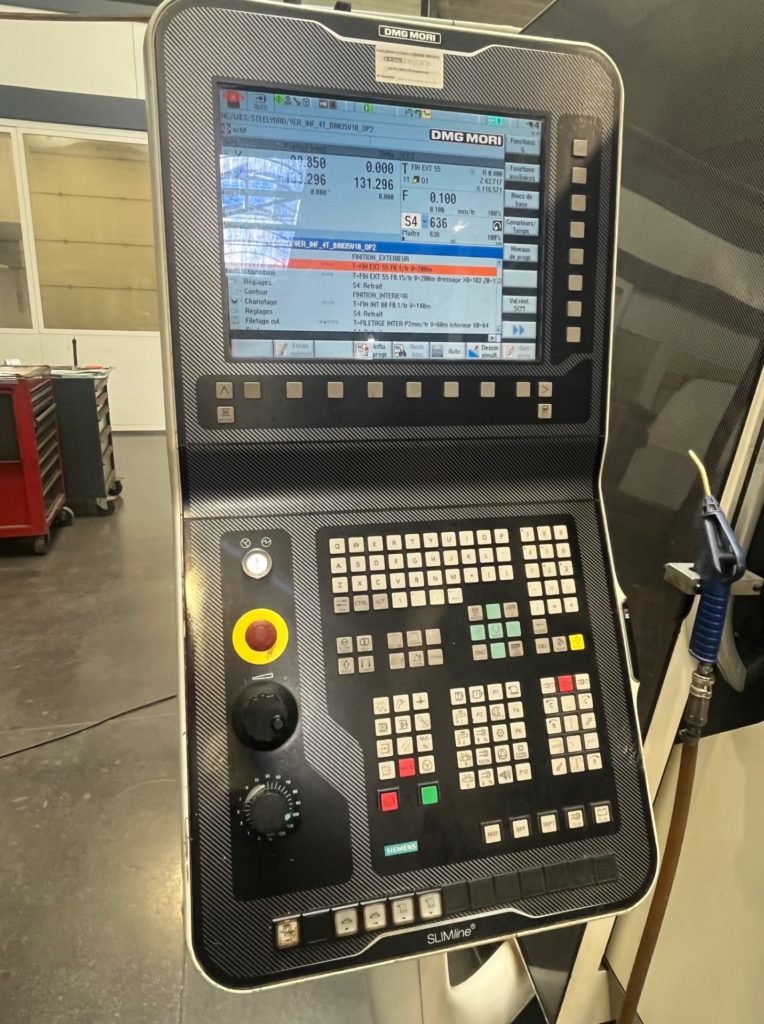

CNC : Siemens 840 DSL with Shop Turn
Max.turn Ø : 600 mm
Max. swing Ø : 800 mm
Max. turn length : 1100 mm
Max. bar capacity : 102 mm
Spindle speed : 2200 RPM
Main motor power : 42 KW 2850Nm

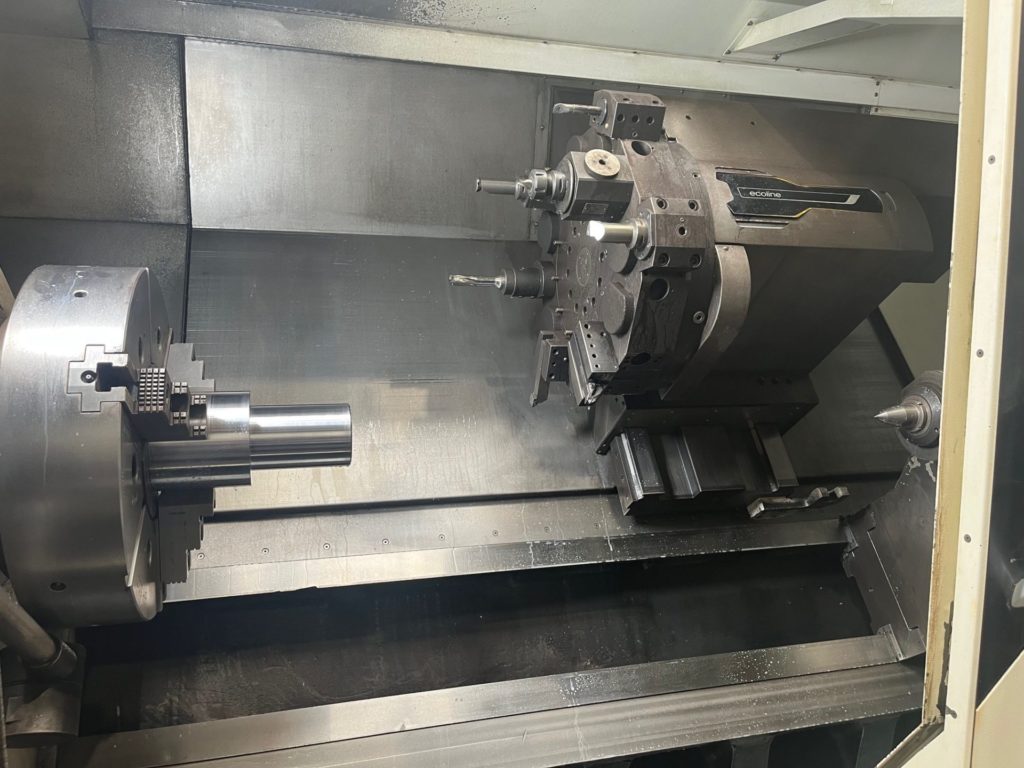

VDI 50 Turret : 12 tool (6 off live)
Approx. dimensions : 4900 x 2300 x 2020 mm
Machine weight : 9000 kg
Equipped with :
C axes 0.001°
Live tools
500mm hydraulic chuck
MARPOSS tool eye
Swarf conveyor
