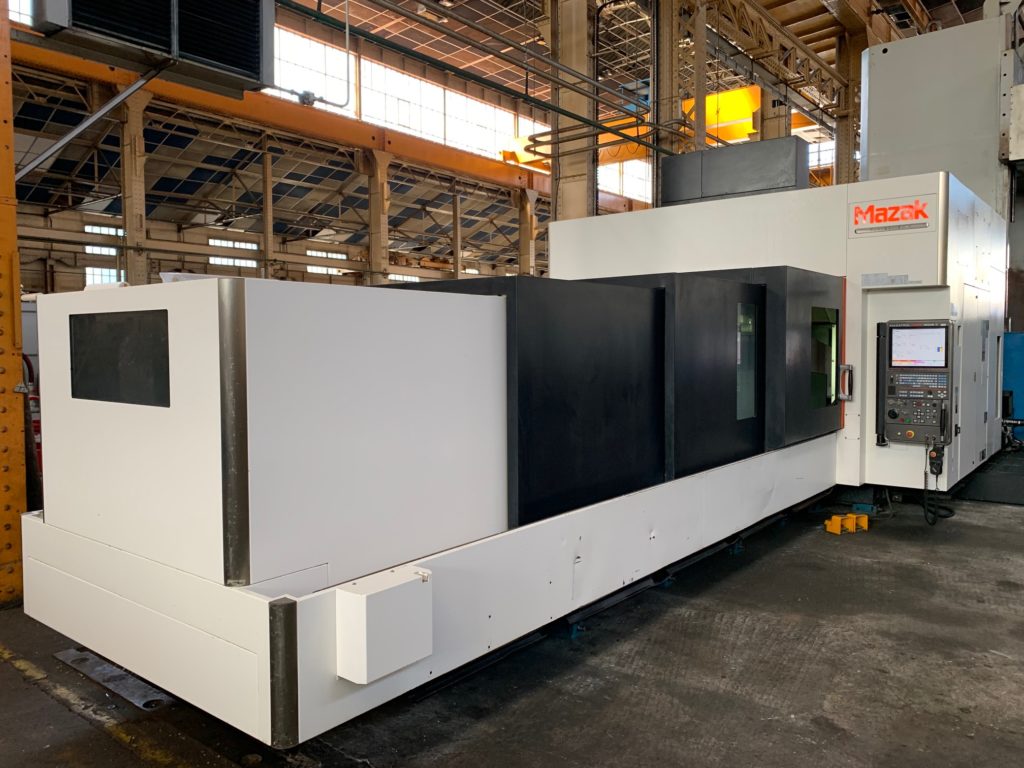

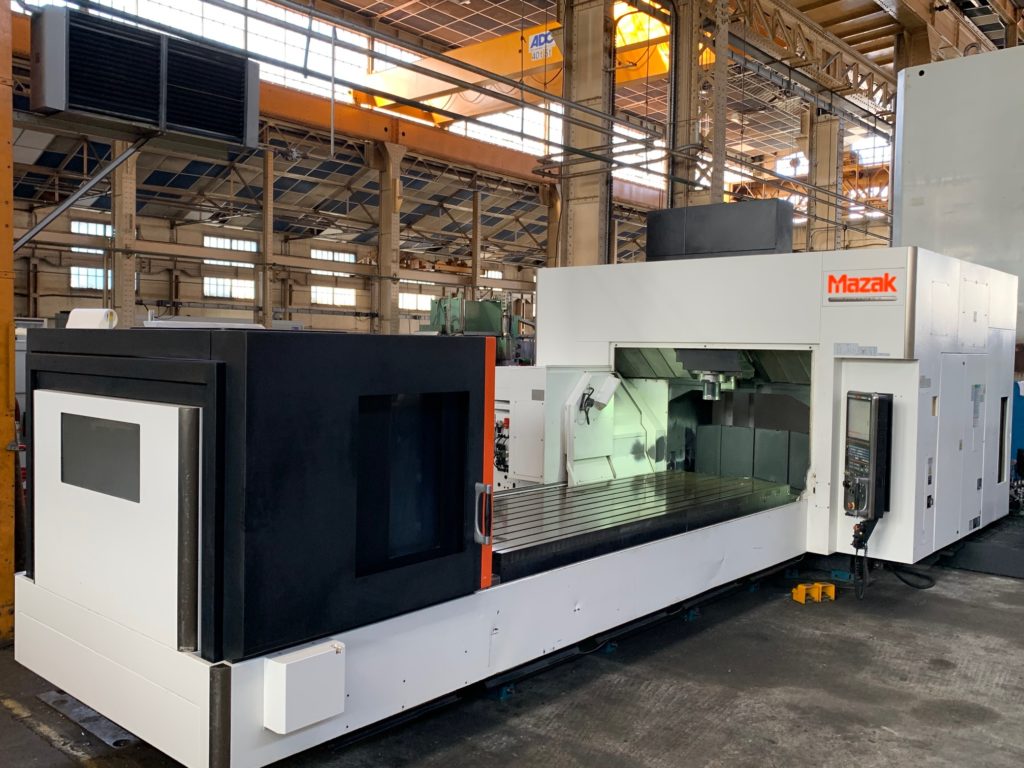

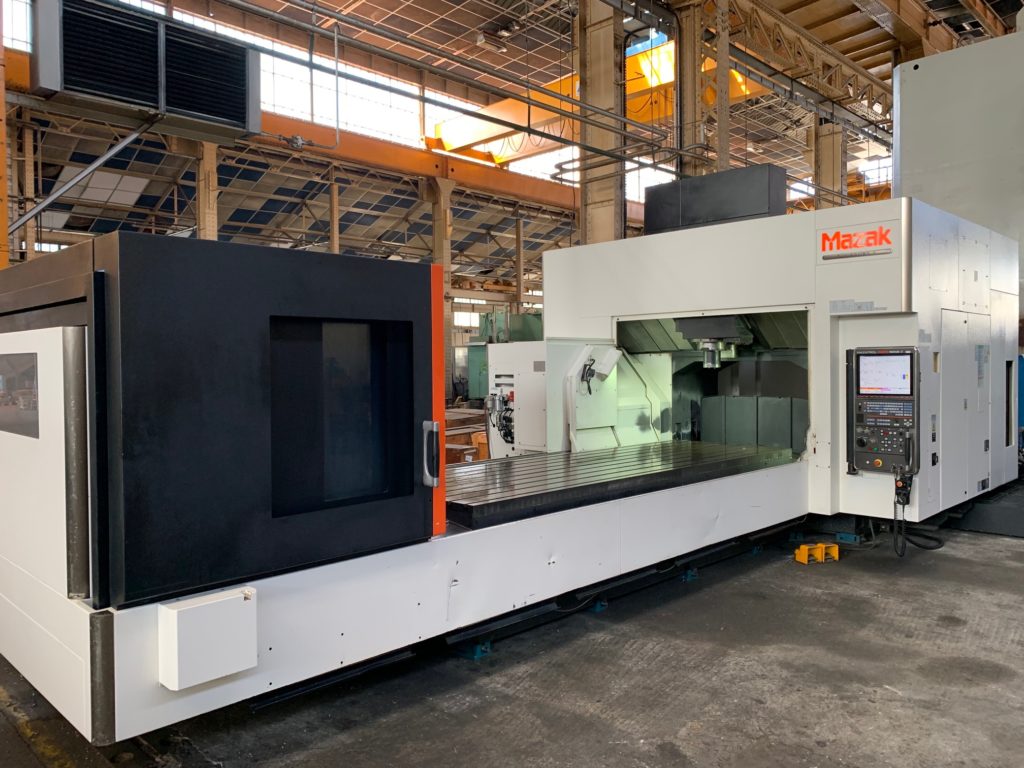

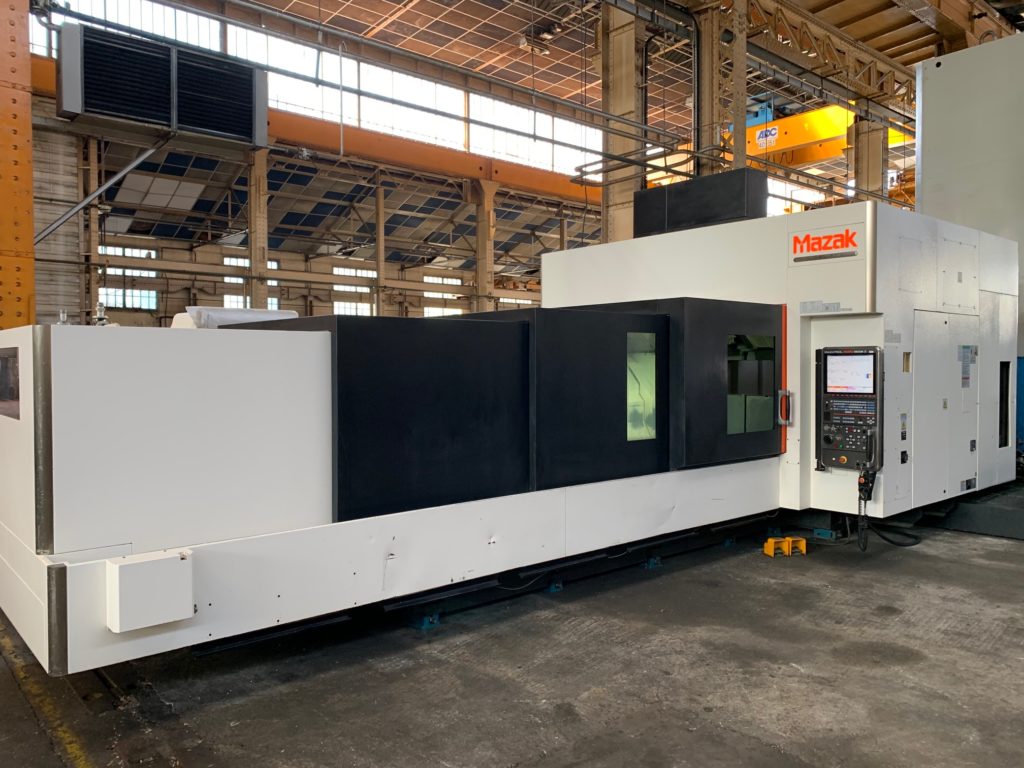

Vertical machining Center MAZAK FJV 60/160 II

Brand : MAZAK

Model : MAZAK FJV 60/160 (X 4.200 x Y 1.400 x Z 720 mm)

Year : 2014

Options:

30 ATC CAT 40
Swarf conveyor Consep 2000
High pressure thru spindle coolant 70 bar
Niagara coolant
Renishaw OMP 60
Handwheel
Performance package
Extended memory

Specifications :

Travel X/Y/Z : 4200 x 1400 x 660 mm
Table size : 4000 x 1260 mm
Distance between columns : 1500 mm
Spindle to table min / max : 160 – 820 mm
Max table load : 5 000 kg
Rapid traverse X/Y/Z : 22 / 40/ 30 m/min
Spindle speed : 18 000 RPM
Spindle taper : CAT 40
Spindle power : 37kw
Max tool Ø : 125 mm
Opposite pockets empty : 210 mm
Max tool length : 380 mm
Max tool weight : 20 kg
ATC : 30
