Specifications :
X Axis stroke 3 500 mm
Y axis stroke 1 000 mm
Z axis stroke 1 000 mm
Table clamping surface 3 700 x 850 mm
Table load 2 500 kg/m²
Rapid traverse all axes 20 000 mm/mn
Spindle taper ISO 50
Spindle motor power 22 KW
Spindle speeds 1 à 3 000 RPM
Installed power 46 Kva
Machine weight 18T
Machine approx dimensions 10 500 x 3 900 x 3 120 m
Equipped with :

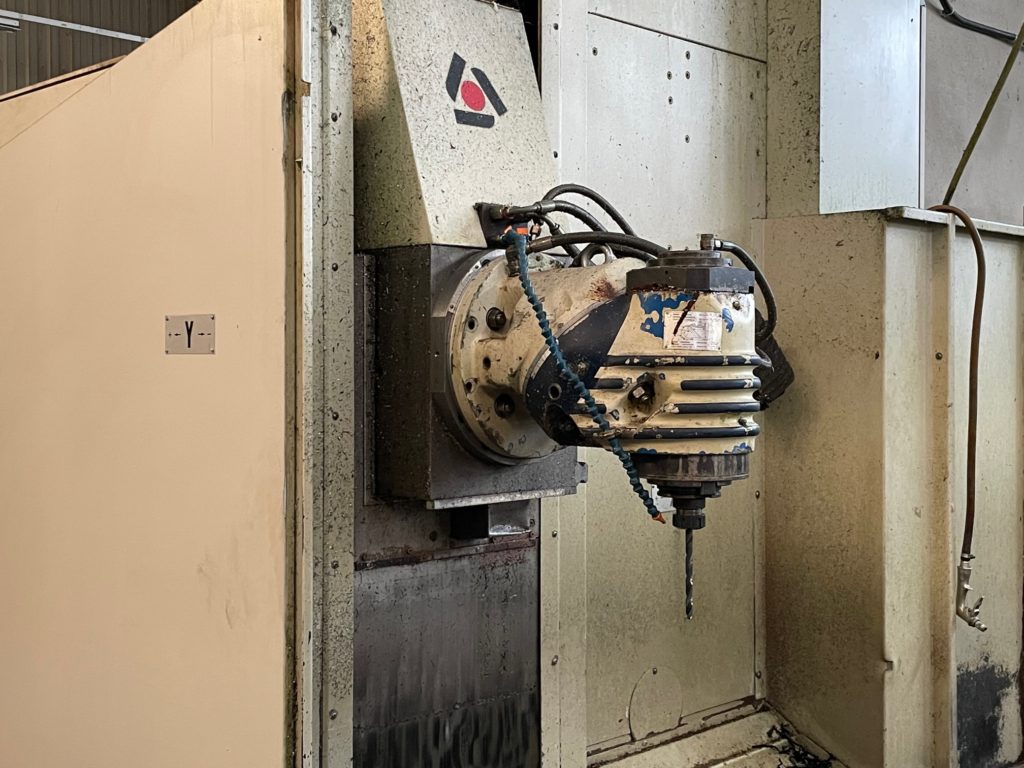

Manual universal head
Spindle cooling
Swarf conveyor

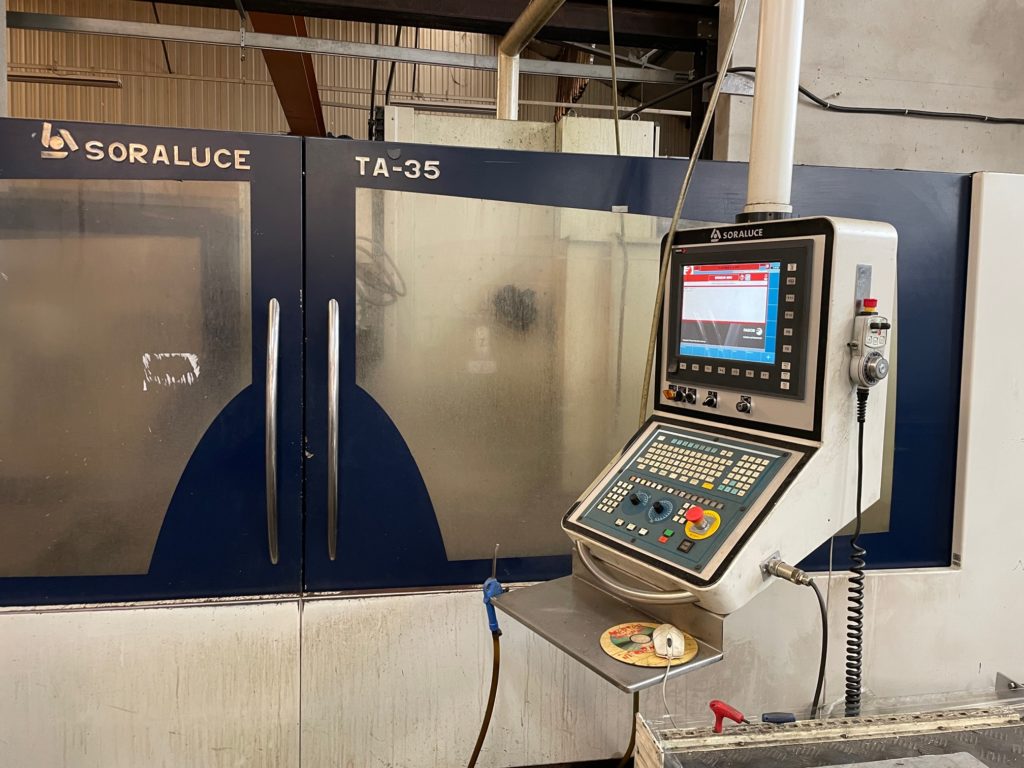

CNC : FAGOR 8070
