Specifications :
X Axis Stroke 4 000 mm
Y Axis Stroke 1 200 mm
Z Axis Stroke 1 000 mm
Table Surface 4 500 x 1 100 mm
Table Load 9 000 kg
Y/Z Axis Rapids 10 000 mm/min
Spindle Taper ISO 50
Spindle Motor Power 30 KW
Spindle Speed Range 1 à 3 000 RPM
Machine weight 22.5T
Dimensions 11 500 x 4 300 x h 3 800 m
Equipped with :

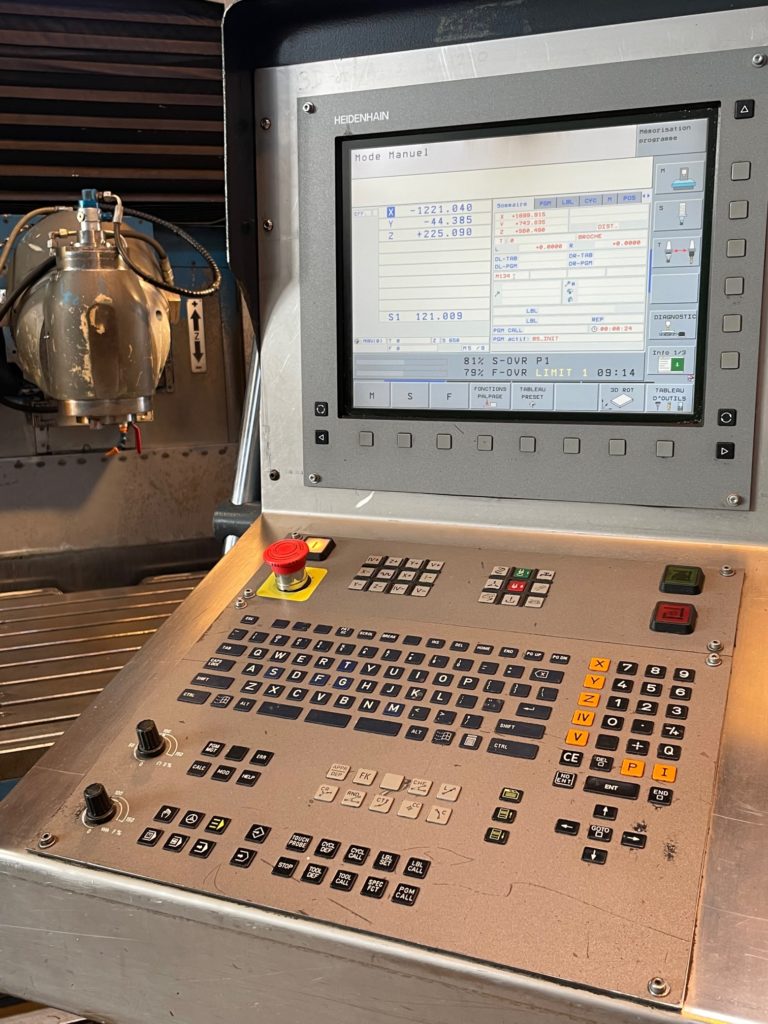

CNC : HEIDENHAIN iTNC 530
Automatic milling head 2.5° x 2.5°
30 ATC
Thru spindle coolant
Swarf conveyor
