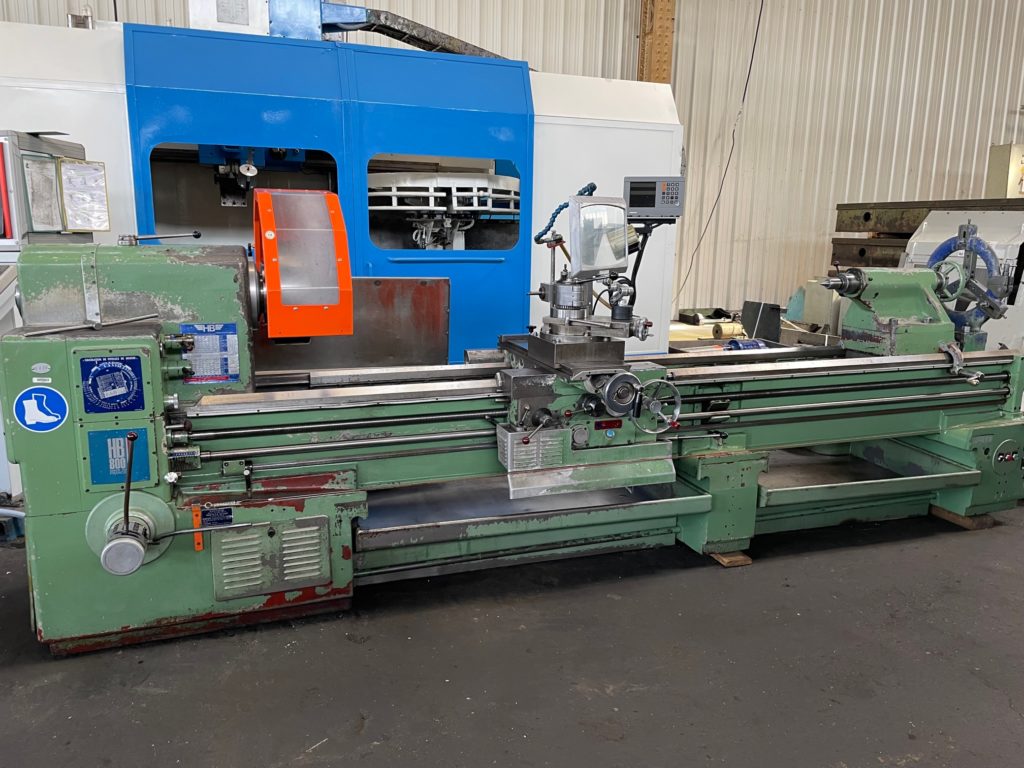

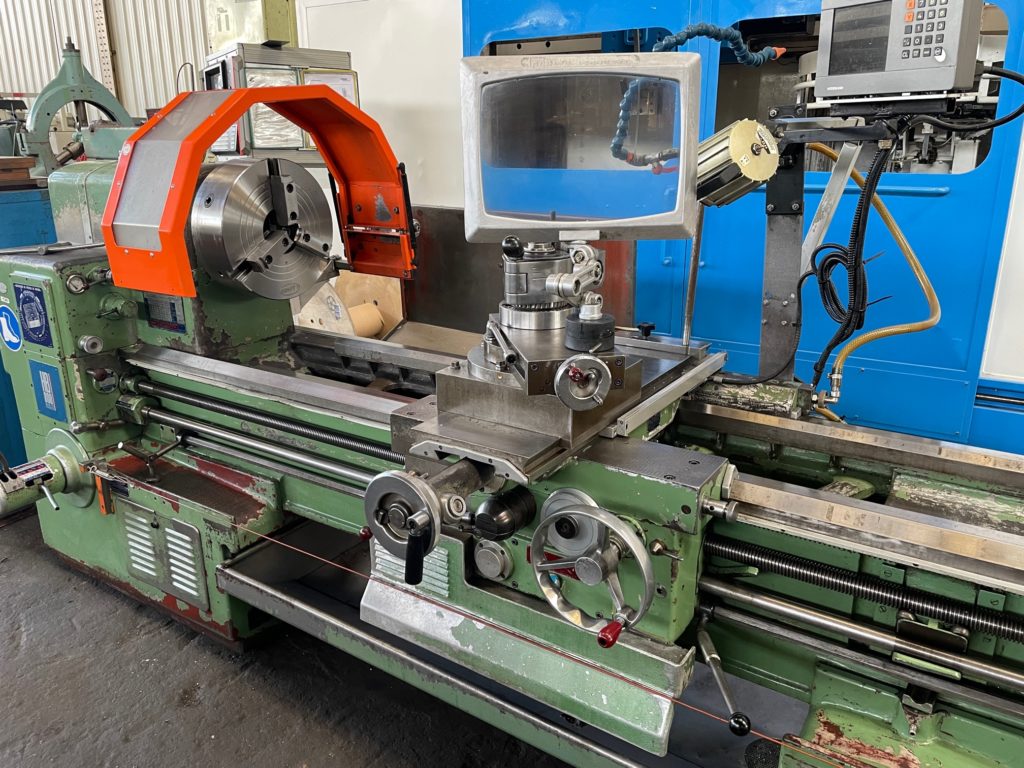

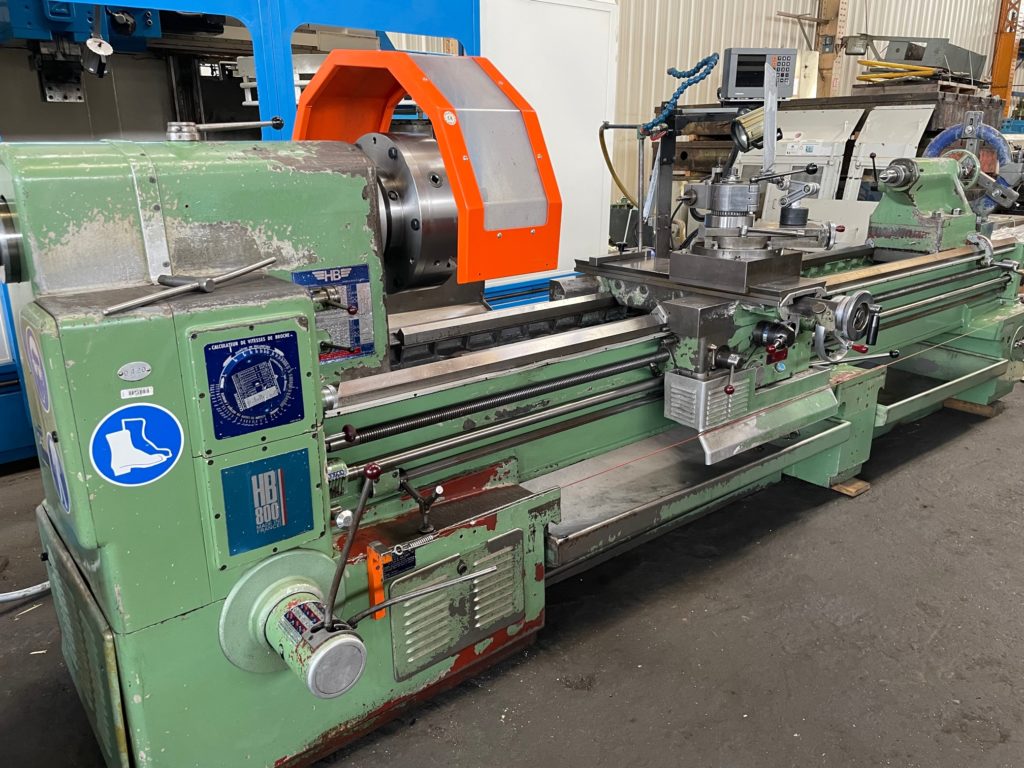

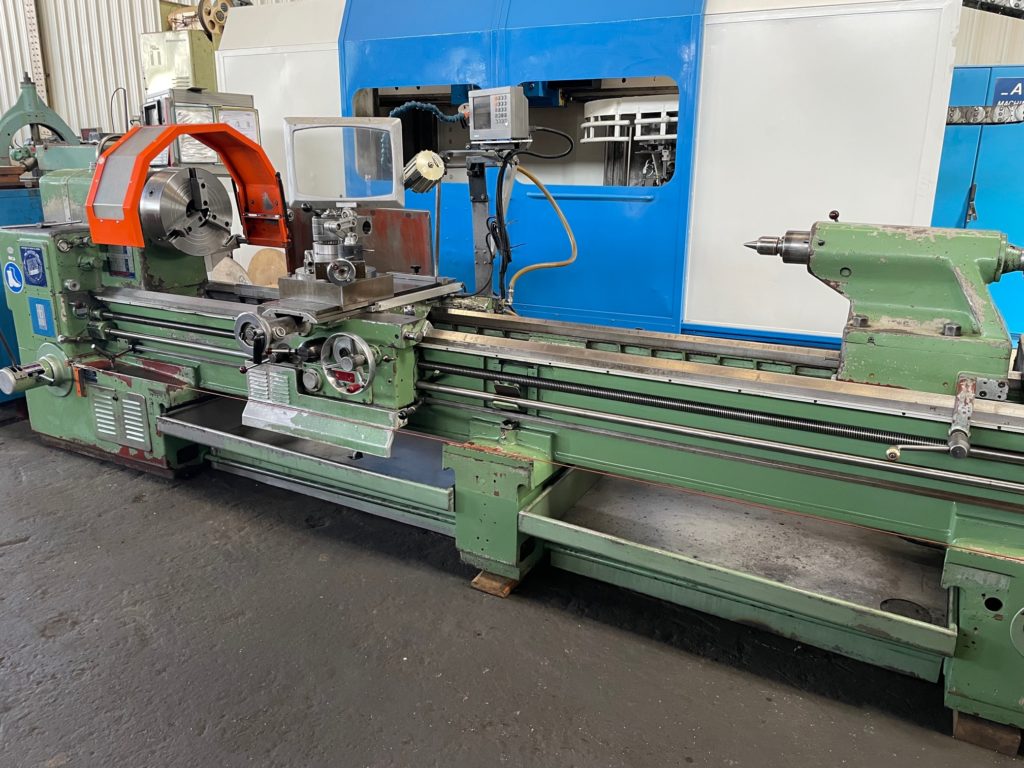

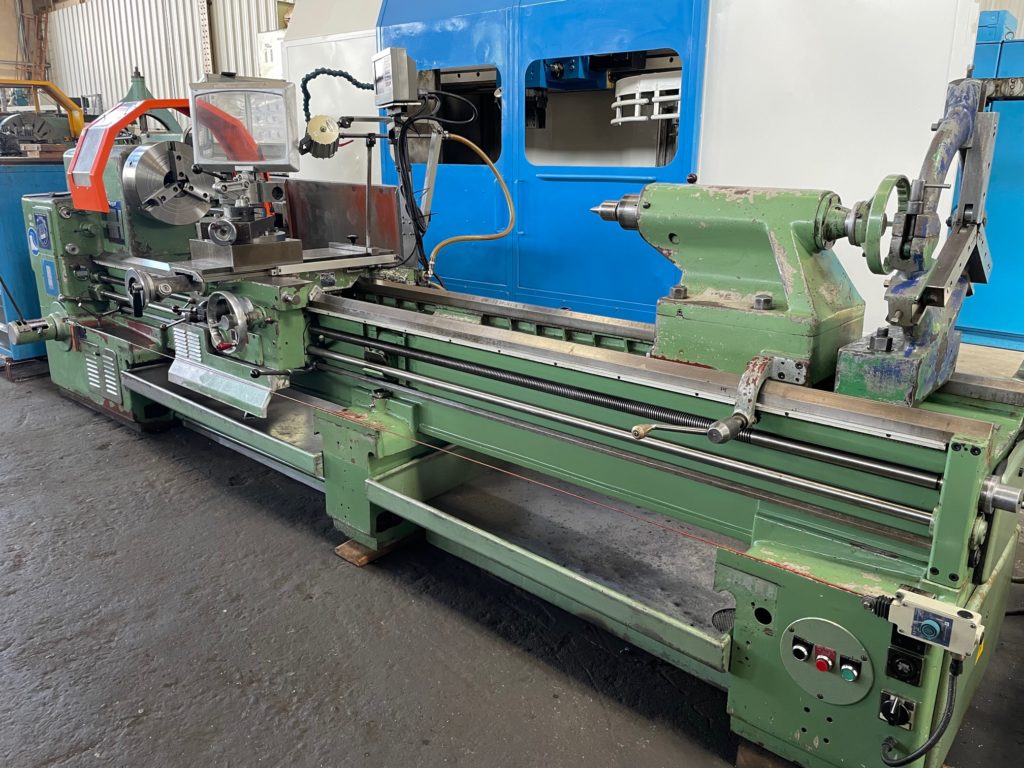

MANUAL LATHE CAZENEUVE HB 800

Brand : CAZENEUVE

Model : HB 800

Specifications :

Centre Distance  3 000 mm

Centre Height  365  mm

Ø over bed  740 mm

Ø Over cross-slide  500  mm

Spindle bore  80 mm

Spindel taper 10 %

Threading  Inch / metric

Speed range 11 – 1 250 RPM

Equipped with:

2 axis Heidenhain DRO

LADNER 400 mm 3 jaw chuck

2 off 320 mm 3 point steadies

Coolant system

Rapids to saddle

Multifix C turret

Tooling Package

Machine dimensions  4 640 x 1 500 x h 1 450 mm

Approx. weight  5 000 kg
