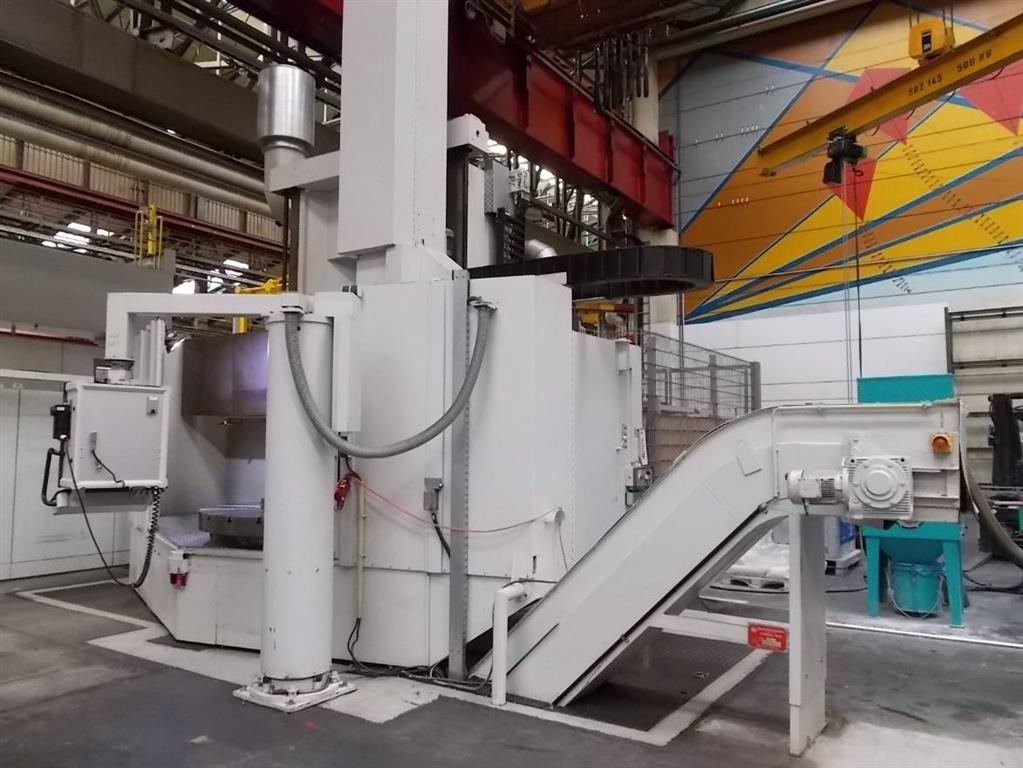

CNC Vertical Borer DÖRRIES SCHARMANN Contumat VC 2400/200, Rebuilt and retrofitted in 2010

Brand : DÖRRIES SCHARMANN

Model : Contumat VC 2400/200

Specifications :

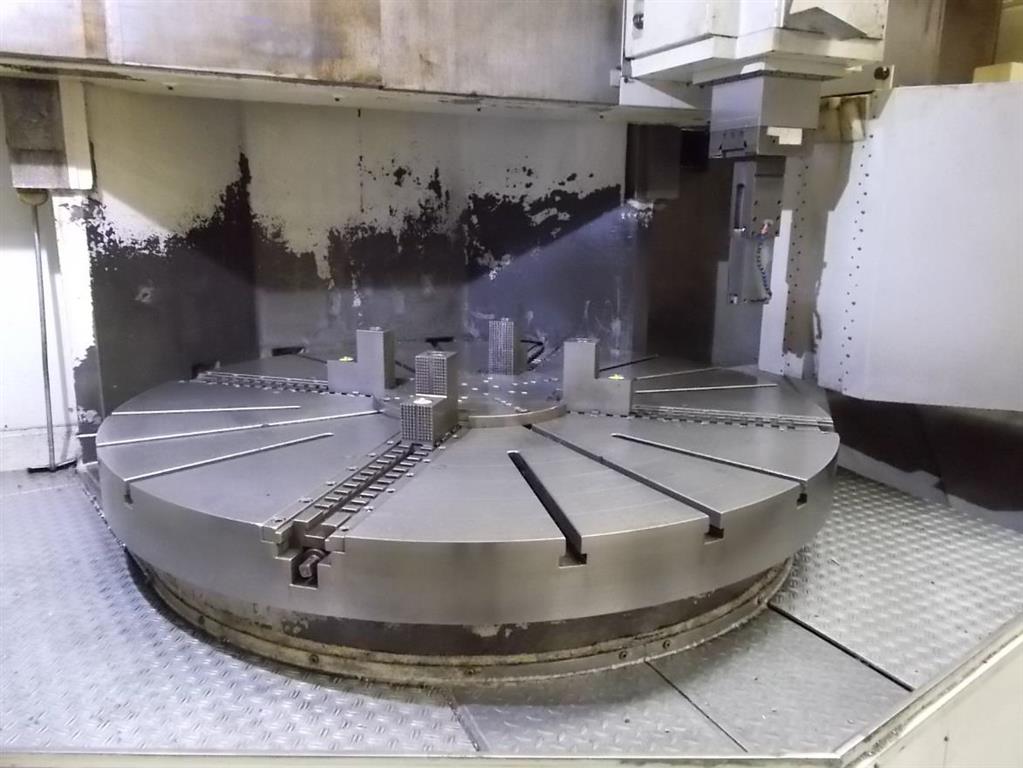

Chuck  diameter   2 000 mm

Max. turn diameter   2 400 mm

Max. turn height   2 370 mm

Max load on chuck  24 T

Ram vertical stroke   1 750 mm

Cross rail vertical stroke   2 000 mm

Chuck speeds (2 ranges)   2 – 224 RPM

Tool section   40 x 40 mm

Feeds   0.1 to 6 000 mm/min

Feeds   0.001 to 50 mm/rev

Rapid traverse (horizontal & vertical)   6 m/min

Voltage  380 V / 50 Hz / 3 Ph

Motor power  105 kW

Total power requirement   150 KVA

Machine dimensions   7 500 x 4 100 x h 7 900 mm

Weight approx.  46 T

Equipped with :

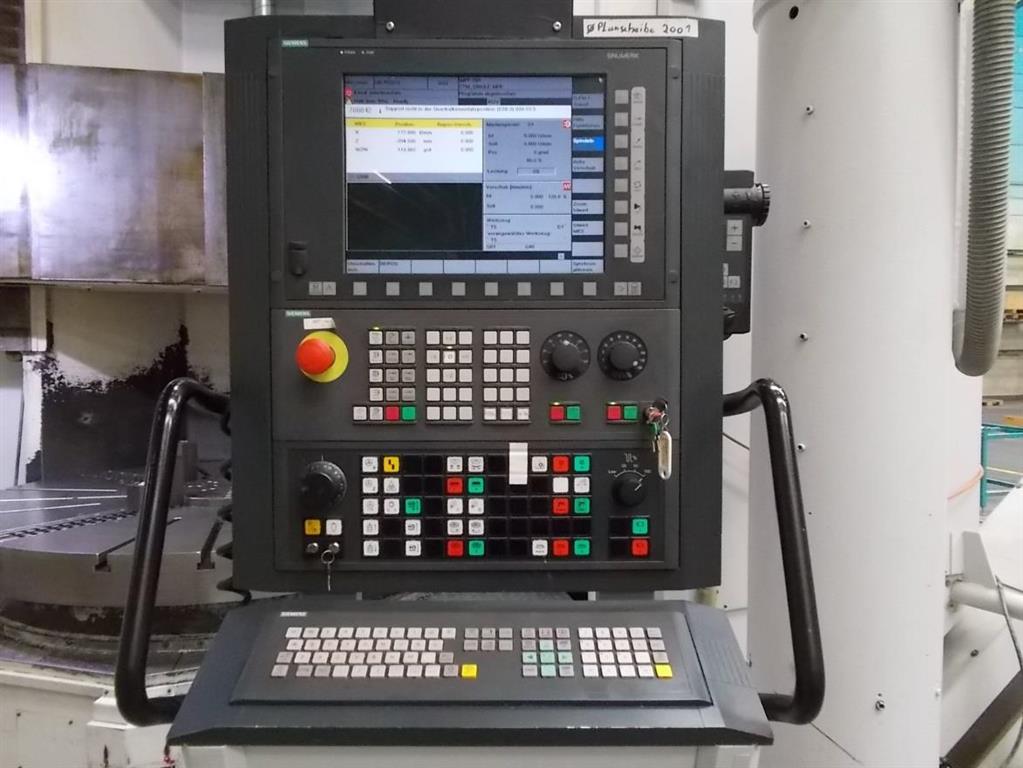

CNC unit : SIEMENS SINUMERIK 840 D

12 ATC

Coolant

Chip conveyor
