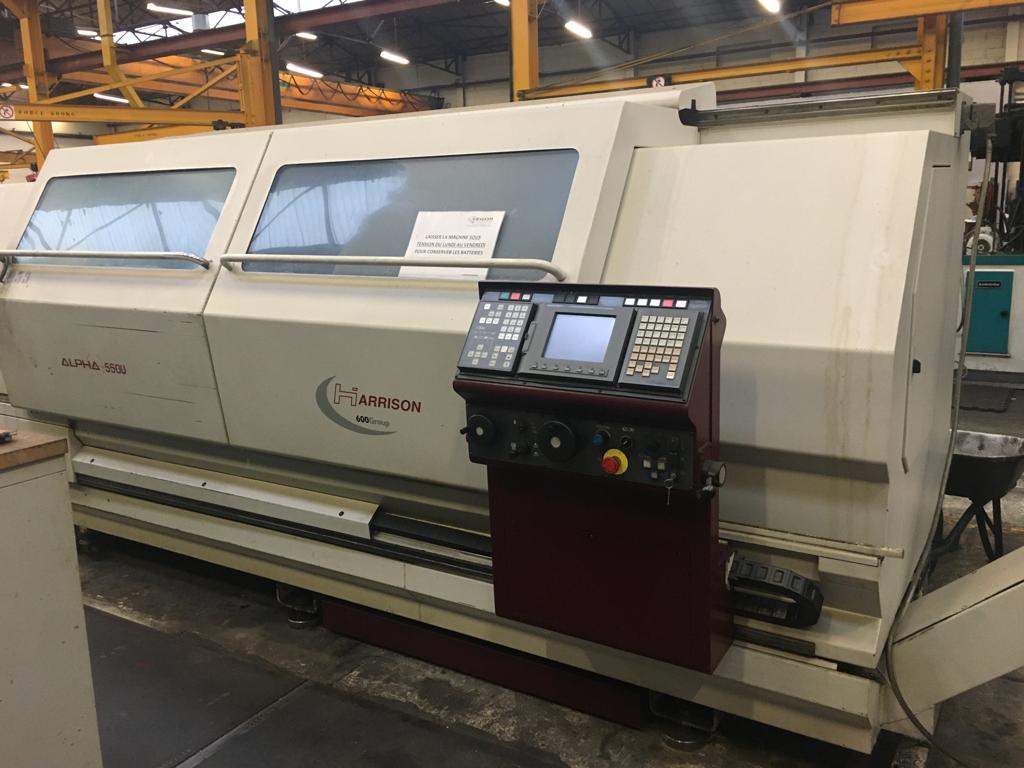

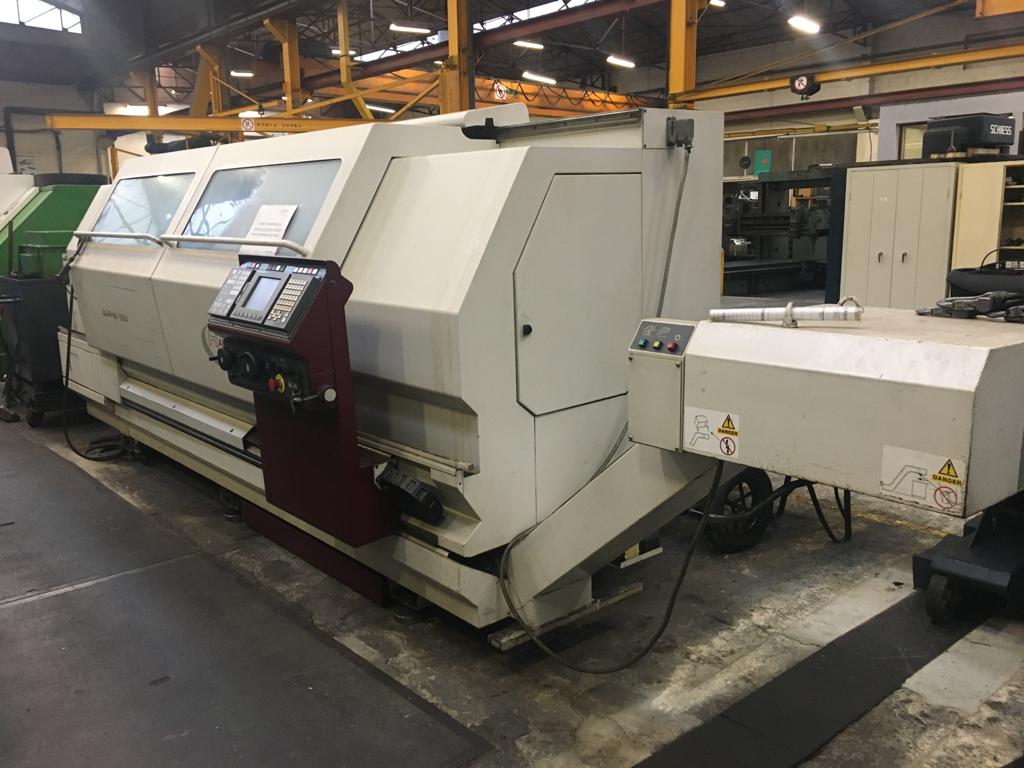

CNC SLANT BED LATHE – HARRISON – ALPHA 500U

Brand : HARRISON

Model : ALPHA 500U

Year : 2002

Specifications :

Swing over bed :   554 mm

Swing over saddle :  370 mm

Swing in gap :   830 x 196 mm

AMx turning length :  2000 mm

Stroke X/Z :   290 x 2032 mm

Rapids X/Z :   6/6 m/min

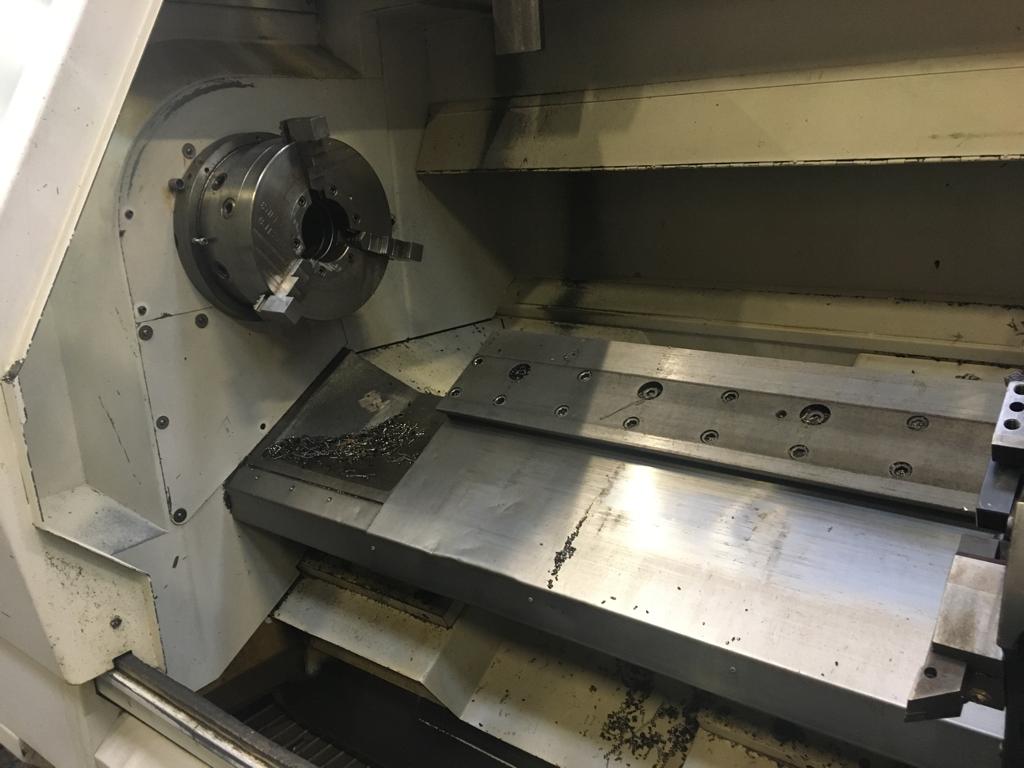

Chuck dia. :  300 mm

Spindle nose :   D1-11’’

Spindle bore :   102 mm

Spindle speed max. :   1800 RPM

Amin motor power :  11/15 KW

Floor space required :   4400 x 1900mm

Weight :  4 250 kg

Equipped with:

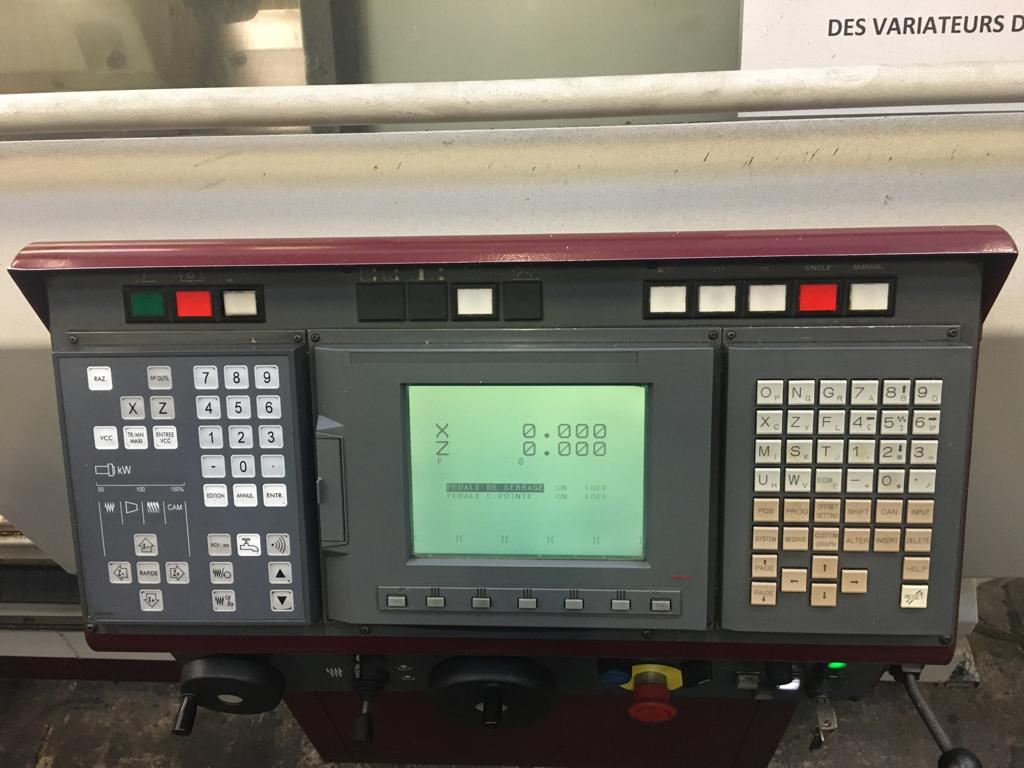

CNC FANUC

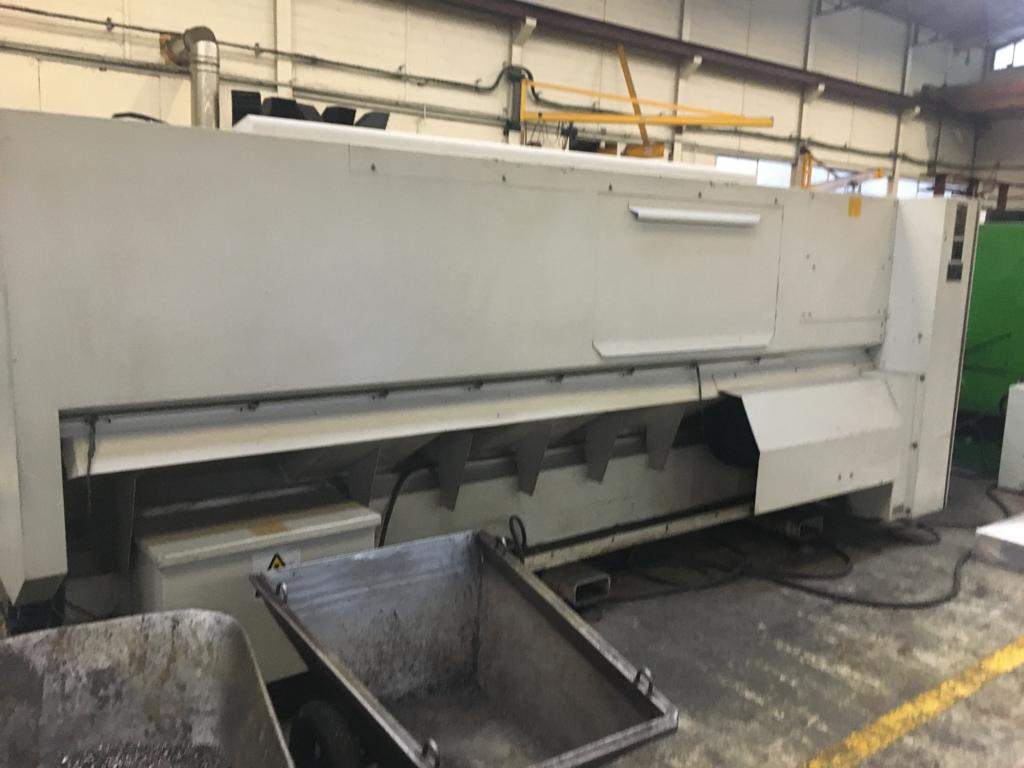

Swarf Conveyor

Duplomatic Automatic Turret VDI 40
