CNC LATHE – WOHLENBERG PTI – 2000 IV

Brand : WOHLENBERG

Model : PTI-2000 IV

Year : 2011

Specifications :

turning diameter2000 mm
turning length10000 mm
total power requirement70 kW
main drive motor55 kW
turning diameter over slide1680 mm
turning speed range1,4- 450 RPM
max. workpiece weight between centres14000 kg
weight on chuck 3.100 kg at max 250 mm3100 kg
bed width1280 mm
tailstock quill diameter280 mm
max. torque on the spindle21000 Nm
spindle diameter in front bearing260 mm
spindle bore163 mm
dimensions of the machine ca.13,6 x 4,8 x 3,4 m
weight of the machine ca.38 t

Equipped with:

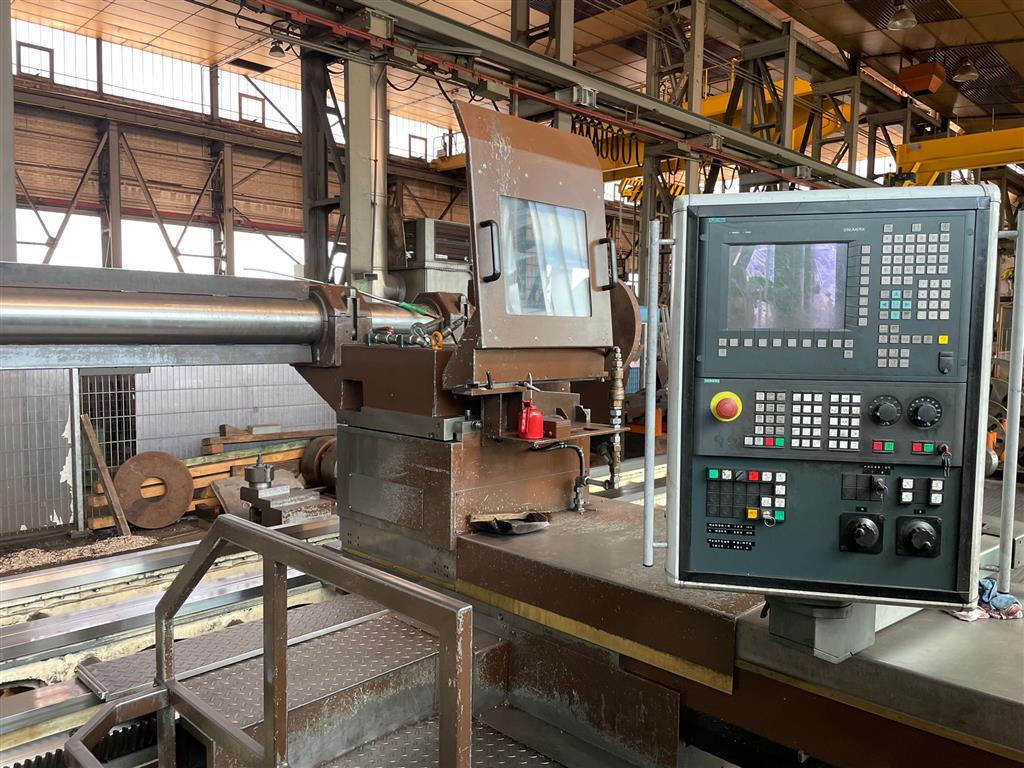

Machine equipped with SIEMENS 840 D CNC control
– 4-guideways bed
– Multifix tool holding system D2

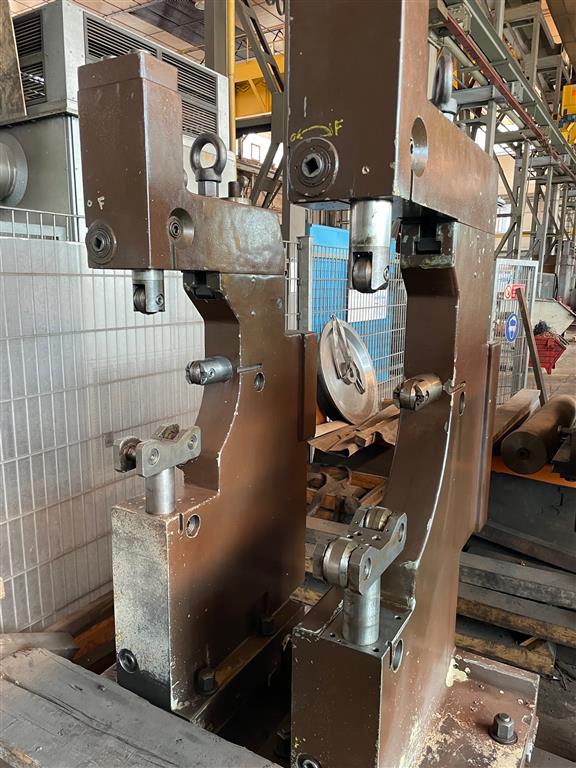

– 2 fixed steady rests
– 1 roller steady

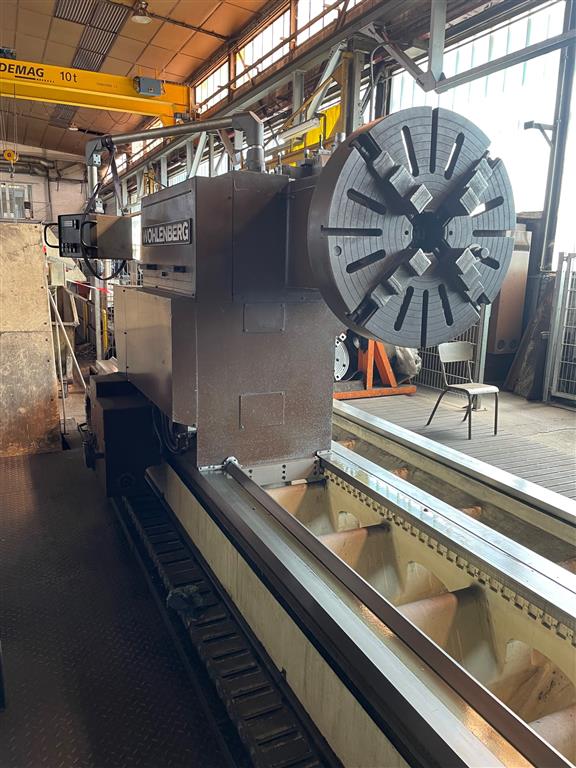

– face plate 1000 and 1800 mm dia.
– 3-jaw chuck 630 mm
– internal turning device
