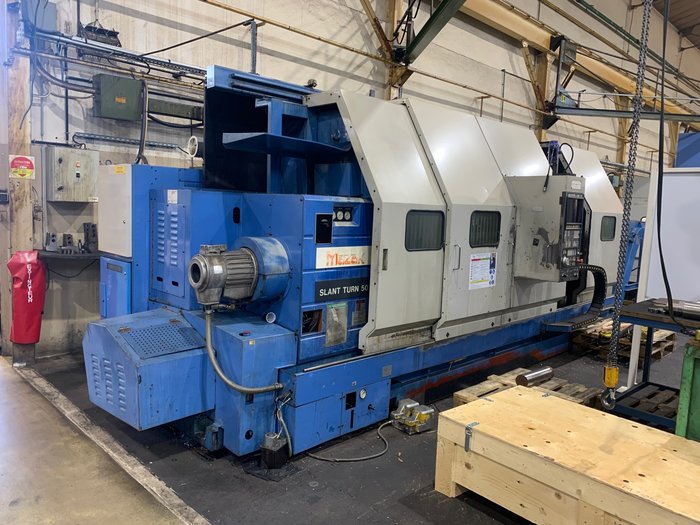

CNC LATHE MAZAK SLANT 50 x 3100

Brand : MAZAK

Model : MAZAK SLANT 50 x 3100

Year : 1988

Equipped with :

15 tool turret
Swarf conveyor
2 off steadies 1 x dia 530 mm, 1 hydraulic Ø 49 to 210 mm
3 jaw chuck Ø 380 mm
Programmable tailstock
Coolant
Tooling package

Specifications :

Max turning dia. over bed : 810 mm
Max turning dia over saddle : 598 mm
Max working length: 3100 mm
XZ axis stroke: 810 / 3500 mm
Spindle bore : 90 mm
Spindle speed max : 1600 RPM
Main motor power : 37,5 KW
Turret : 15
