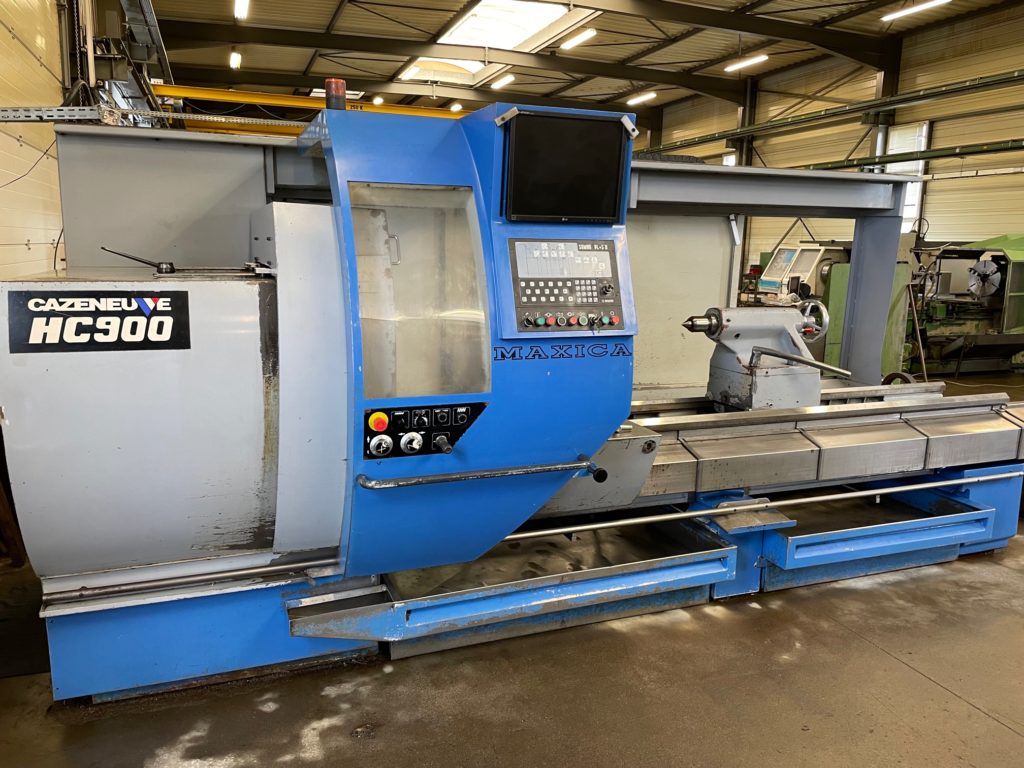

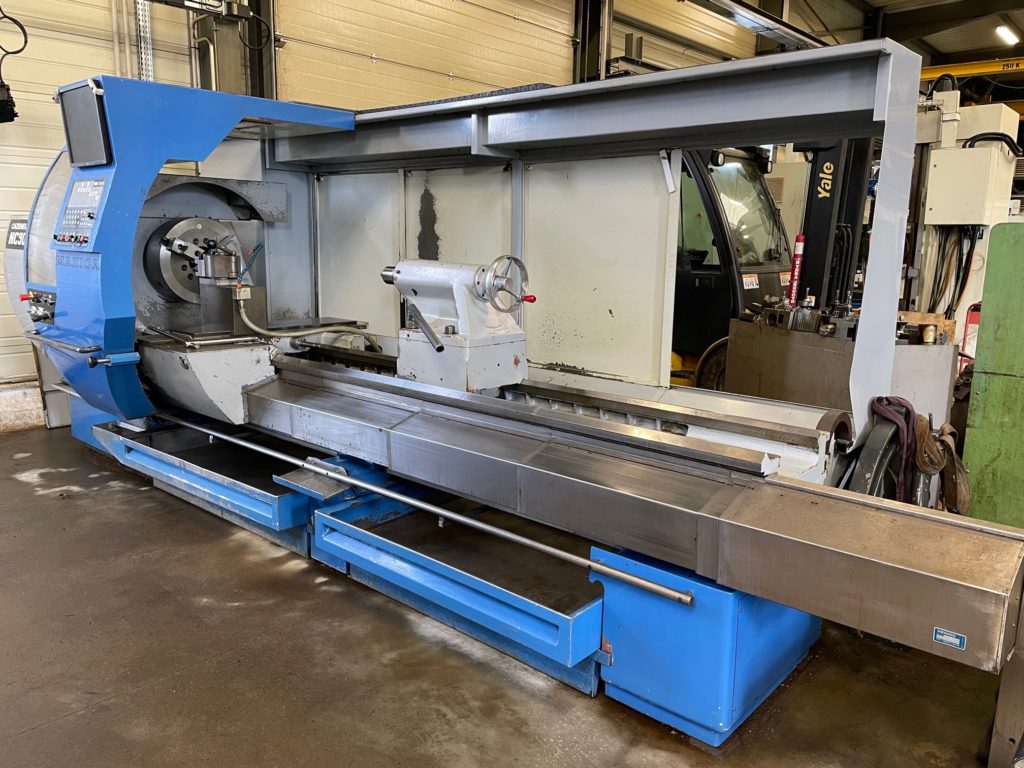

CNC LATHE CAZENEUVE MAXICA HC 900

Brand : CAZENEUVE

Model : MAXICA HC 900

Year : 1999

Specifications :

Swing over bed    900 mm

Swing over saddle    840 mm

Swing in gap (length 230 mm)   1000 mm

Centre distance  3000 mm

Max turn length  2980 mm

Spindle bore    81 mm

Max chuck speed.  1621 RPM

Tailstock quill dia 140mm   MT 6

Tailstock quill stroke   235 mm

Main motor power   26 kW

Equipped with:

CNC SOMAB PL+S3

Teach-in control

Multifix tool post

4 jaw chuck

3 jaw chuck

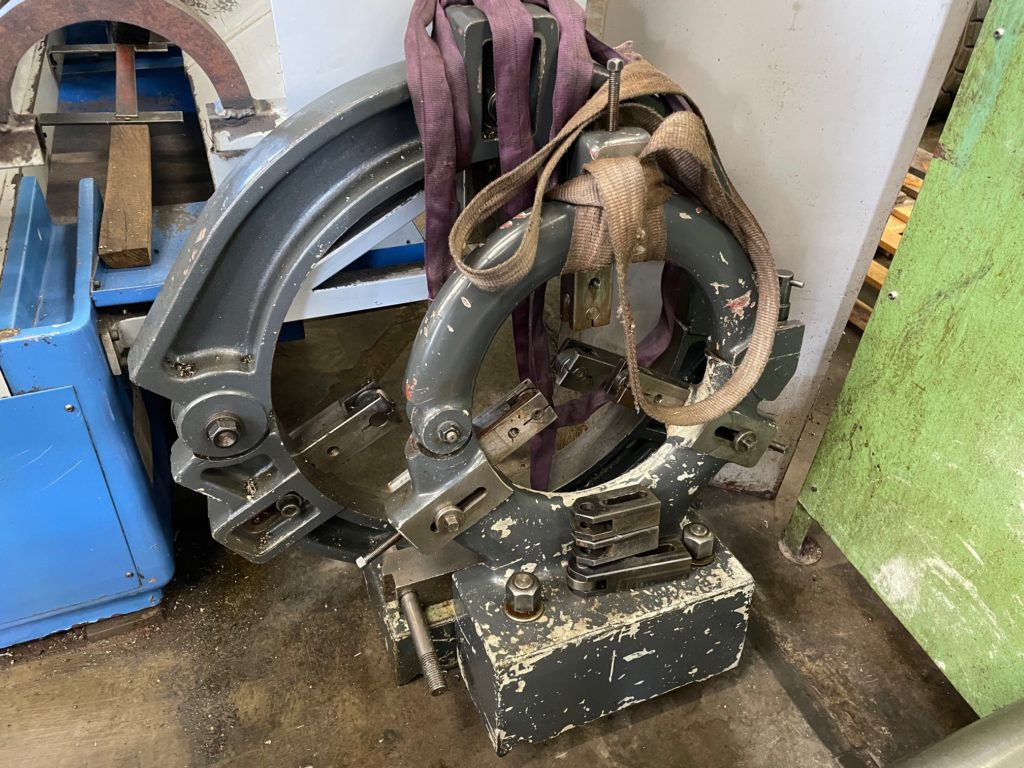

2 off steadies

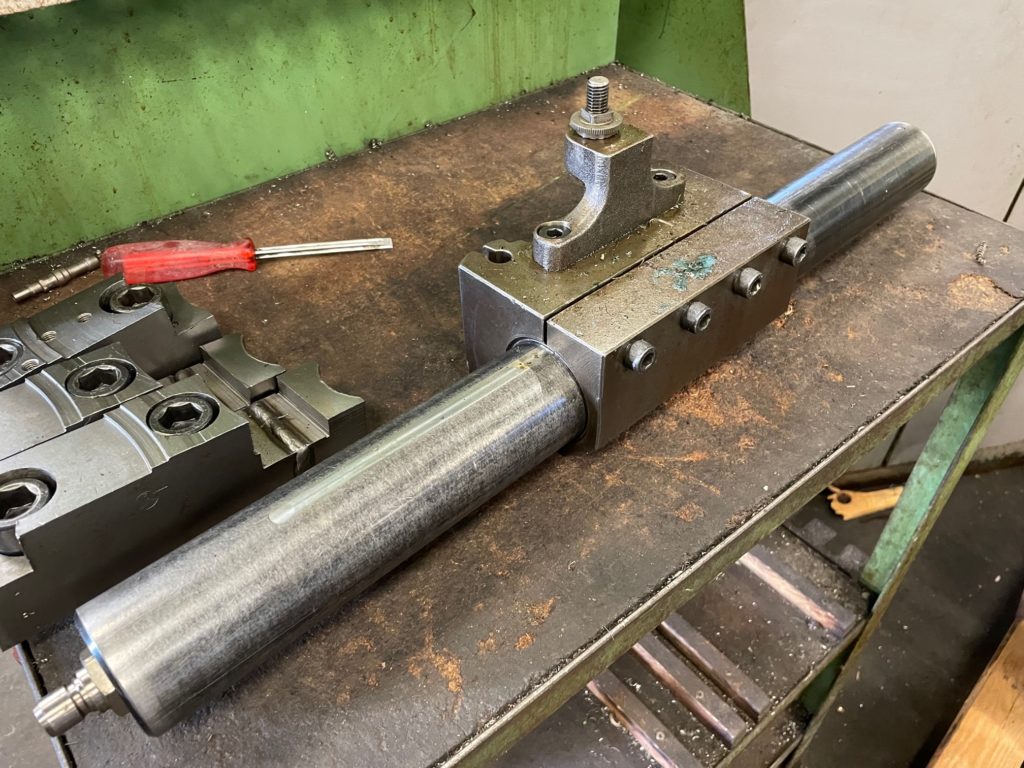

Boring bar
