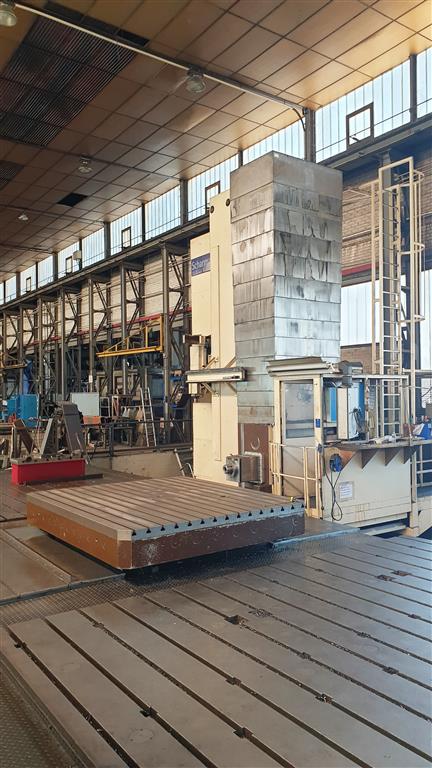

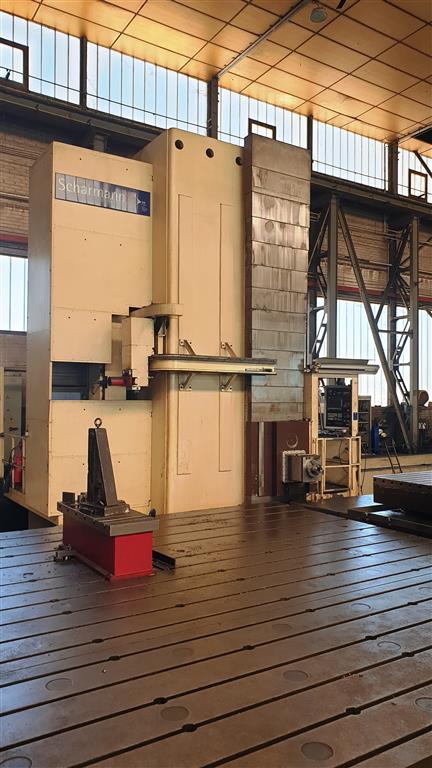

CNC Horizontal Floor Type Boring and Milling Machine – DÖRRIES SCHARMANN-Heavyspeed 2

Brand : Dörries Scharmann

Model : Heavyspeed 2

Year : 2002

Specifications :

spindle diameter160 mm
x-travel12000 mm
y-travel4000 mm
z-axis1000 mm
W-axis (spindle longitudinal)1000 mm
V-axis2500 mm
B-axis  (table)+/- 9999.999 mm
dimension of the ram400 x 420 mm
spindle motor63 kW
spindle turning speed range3 – 3000 RPM
spindle taper ISO50
table surface area2500 x 3000 mm
table load40 t
no. of workpieces in the magazine60 pcs
feeds:15/25 m/min
total power requirement205 kvA
dimensions of the machine ca.m
weight of the machine ca.T

Equipped with:

Machine equipped with CNC control SIEMENS 840 D
– hydrostatic guideways

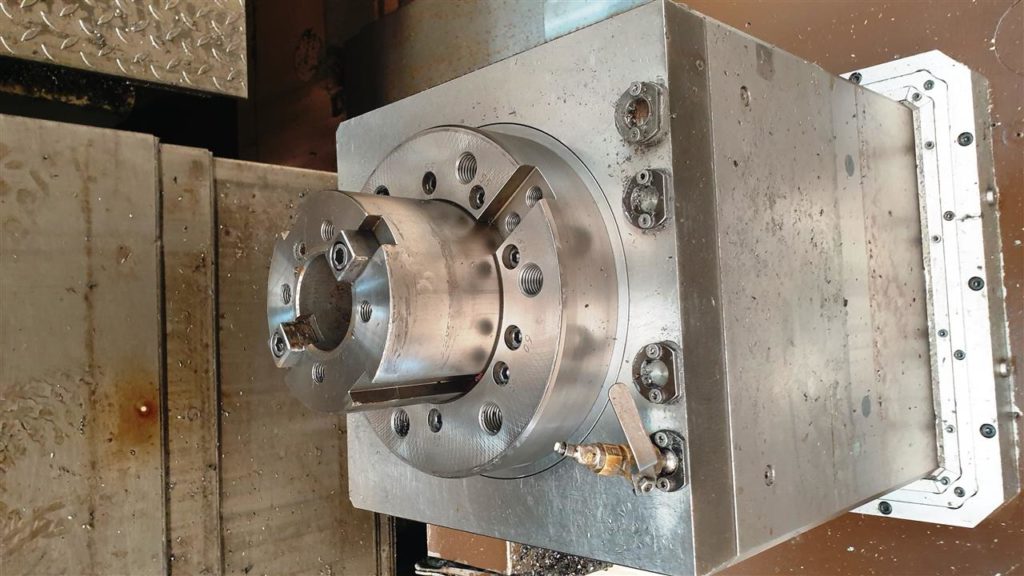

– angular milling head WFK 630 with 1,5° indexing
– tool changer for 60 tools

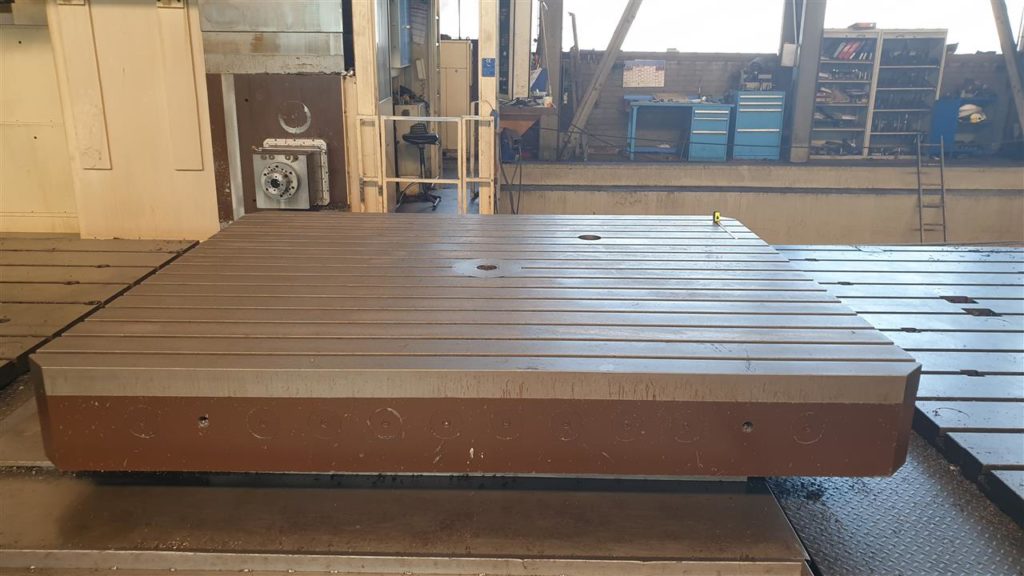

– NC boring table 40 to capacity
– floor plates with total area of appr. 60 m²
– 2 angular plates, misc. Tooling
