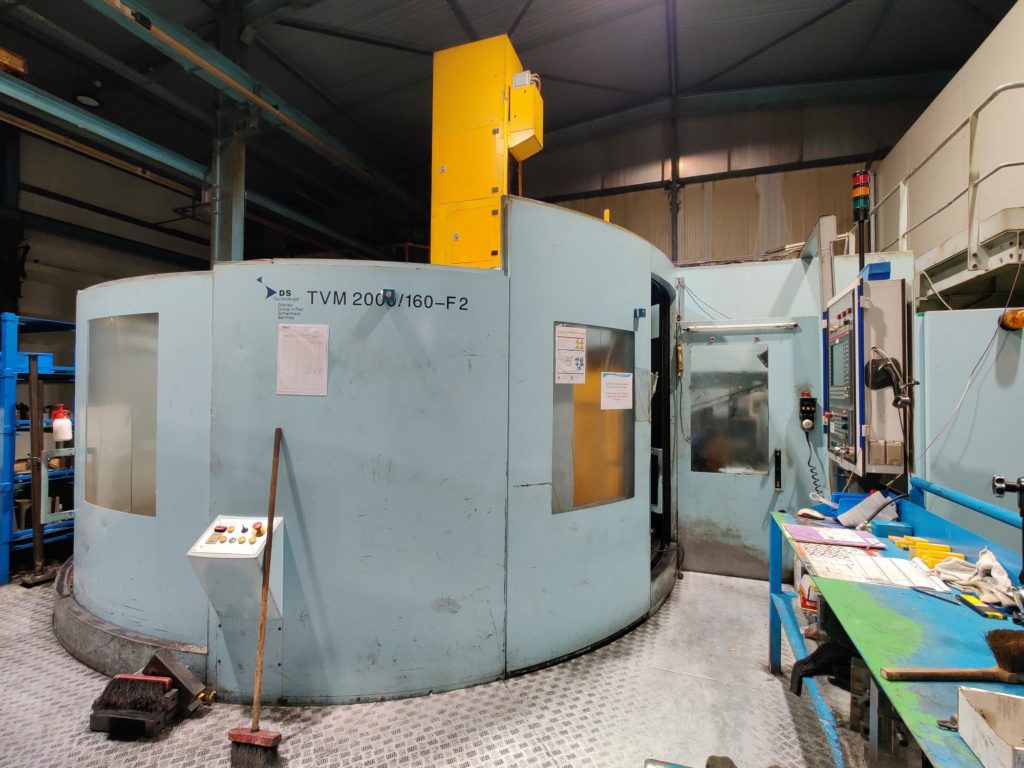

4 AXIS CNC VERTICAL BORER WITH LIVE TOOLING AND PALLET CHANGER BERTHIEZ TVM 2000/160 F2

Brand : BERTHIEZ

Model : TVM 2000/160 F2

Year : 2004

CNC NUM AXIUM POWER

HP COOLANT 350 BAR

Specifications :

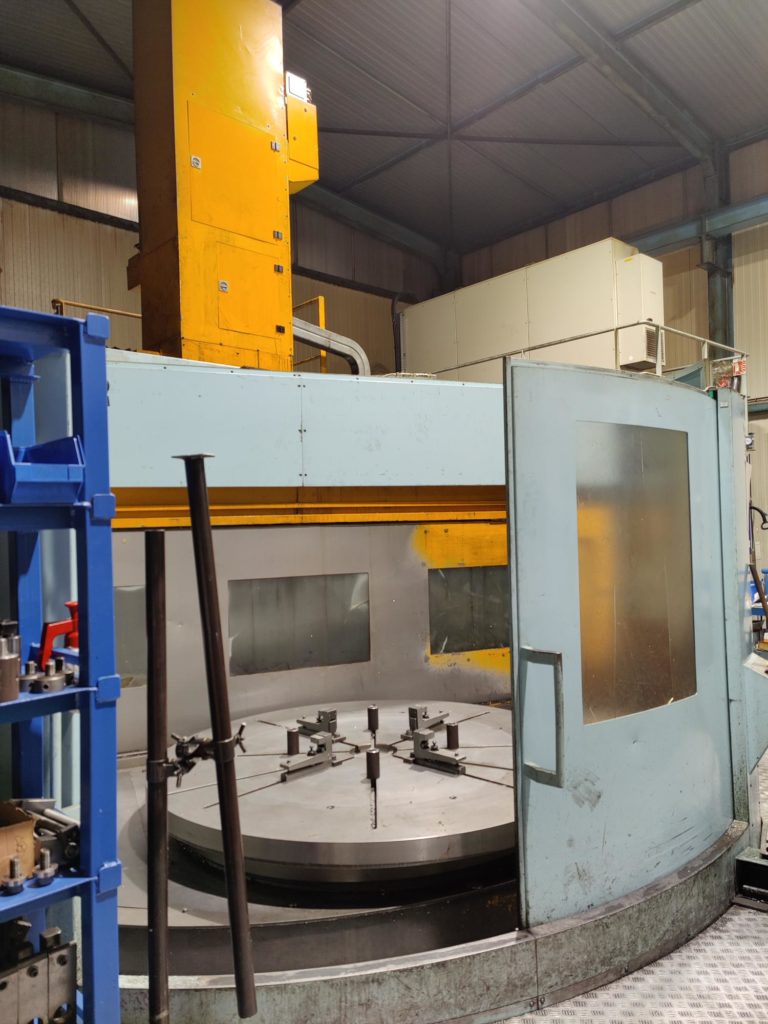

Chuck diameter  1 600 mm

Max. turning diameter  2 000 mm

Diameter  of  2 pallets  1 600 mm

Turning height  1 000 mm

Horizontal stroke of saddle, X  axis   – 1 050 / + 2 500 mm

Vertical stroke ram, Z axis  1 230 mm

Ram section   210  x 240 mm

Min. bore diameter  330 mm

Positioning device of tool holders   BERTHIEZ device

Tool type for turning and milling  CAPTO C8

Max. load on pallet   4 000 kg

Performances :

Chuck motor power, S6  92 kW

Milling spindle power  25 kW

Chuck torque 36 000 Nm

Max. milling spindle torque (low and high range)        880 / 325 Nm

Max. turning torque   60 000 Nm

Speeds and feed rates :

Max. chuck speeds (2 ranges)   350 RPM

Max. millling spindle speeds (2 ranges)  25 –  3 000 RPM

Feed rates X and Z axis   0 – 16 000 mm/min

Weight :

Machine weight 45 T

Number of levelling jacks 12

Coolant :

Coolant device   2 000 l

Coolant pressure in low pressure for turning  10 bar

Coolant flow in low pressure for turning  40 l/min

Coolant pressure in low pressure for milling  35 bar

Coolant flow in low pressure for milling   20 l/min

Coolant pressure in high pressure for turning   70 to 350 bar

Coolant flow in high pressure for turning  34 l/min

Coolant for turning  thru-spindle

Coolant for milling   external

Electrical equipments :

Tension  400 V

Frequency  50 Hz

Power  210 KVA

Equipped with :

C axis – 360 000 positions

Automatic pallet changer ROTOMORS (2 pallets)

RENISHAW tool and part probing

High pressure coolant 350 bar

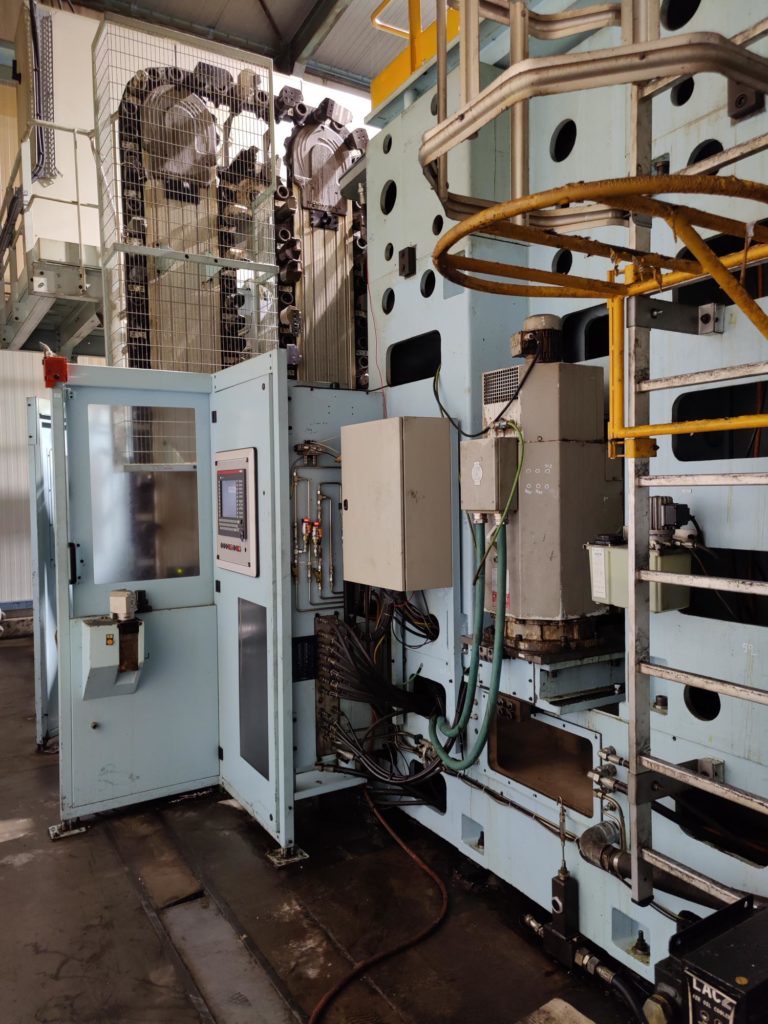

120 ATC for CAPTO C8 turning and milling tools (tool holders are changed in horizontal and vertical positions)

Live spindle 3 000 RPM

Swarf conveyor

Lot of ISCAR tool holders
