Options:

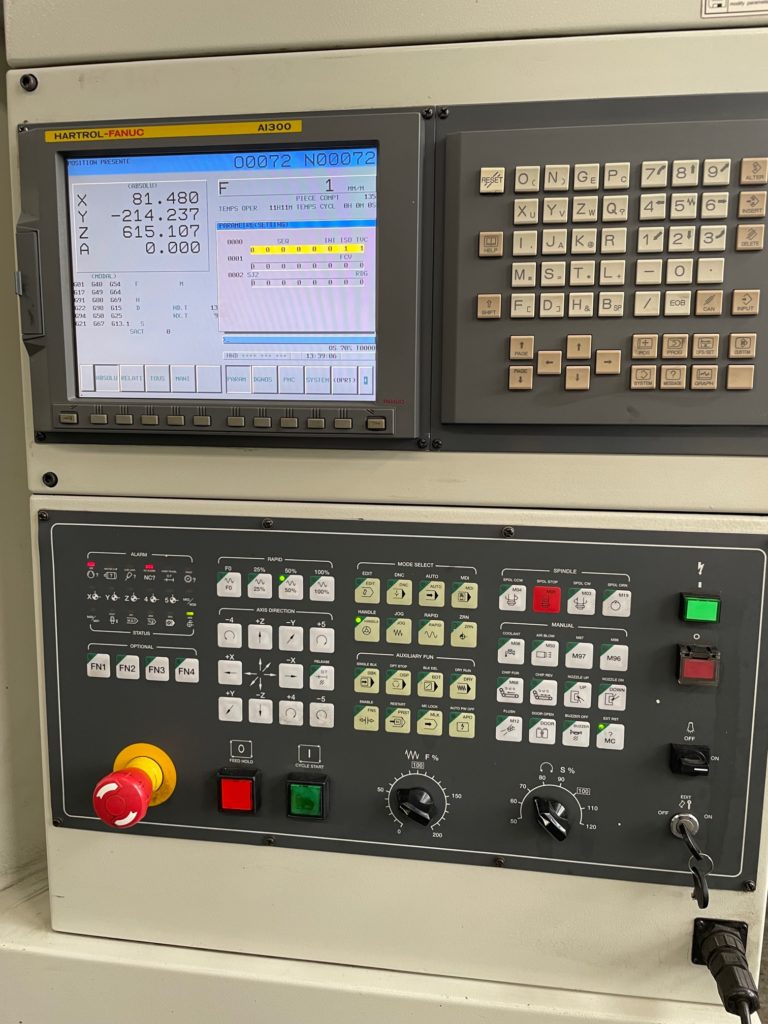

CNC : FANUC 18i-MB with manual guide
24 ATC
Thru spindle coolant 20 bar
4 axis preparation
Spindel cooler
Swarf Conveyor
Specifications :
Table surface 1 150 x 600 mm
X stroke 1 000 mm
Y stroke 600 mm
Z stroke 630 mm
Max. table load 700 kg
Spindle speed (Geared Head) 1 – 8 000 RPM
Spindle motor power 12,5 kW
Spindle taper BT 40
Rapid traverse 20 m/min
Machine dimensions approx. 4 600 x 2 350 x H 2 400 mm
Weight approx. 6 000 kg
