Options:

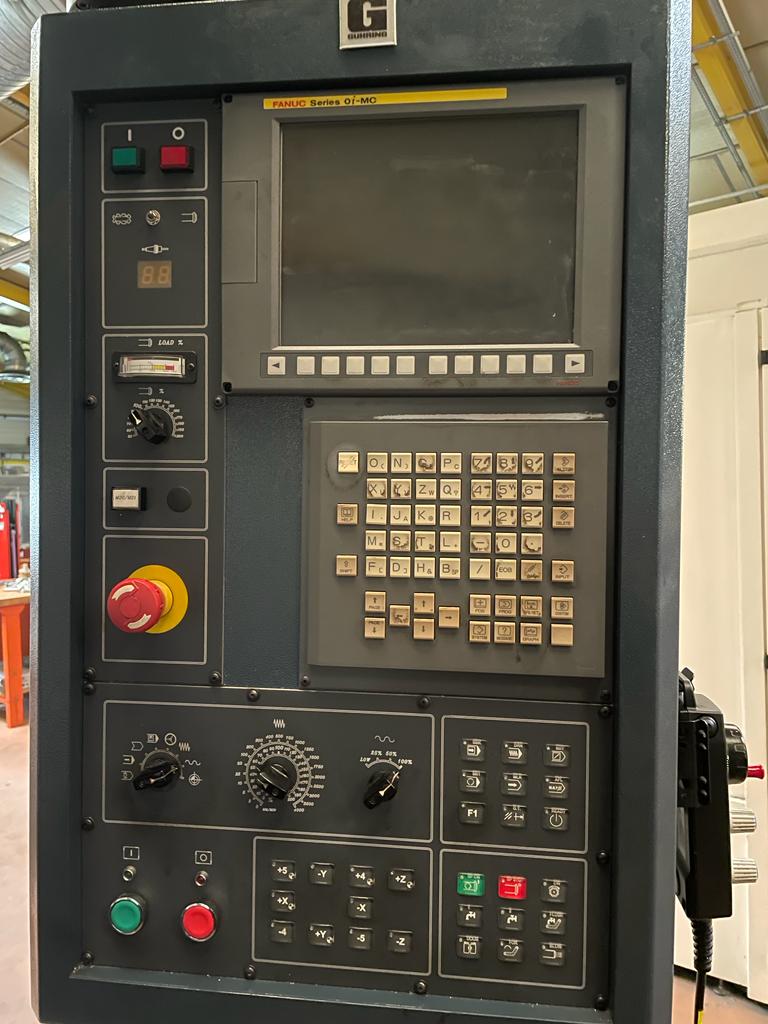

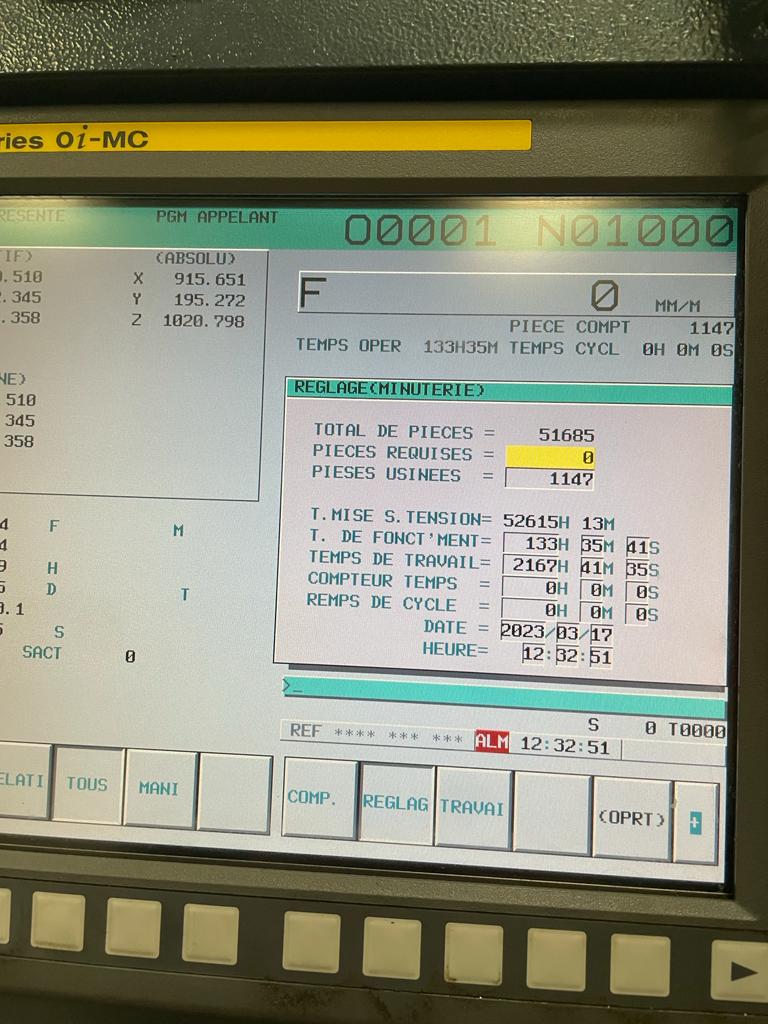

CNC : FANUC OiMC

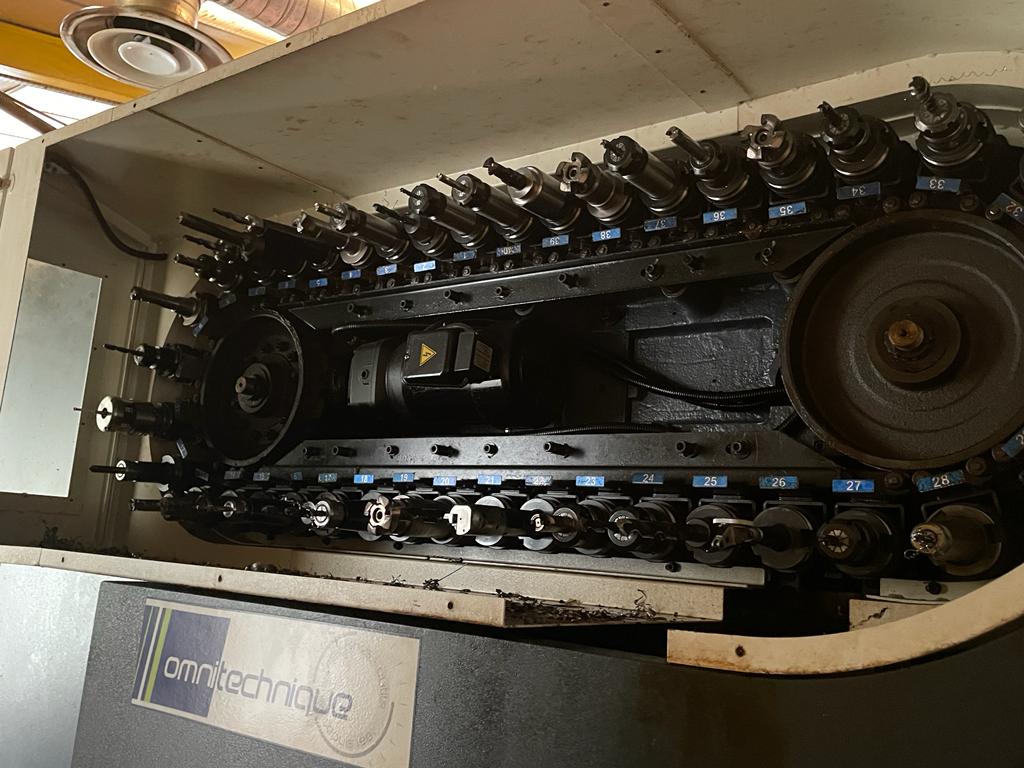

40 ATC
Swarf conveyor 2 + 1
Electronic Handwheel
Through spindle coolant 20 bar
Spindle cooler
Tool and part probesSpecifications :
Travel X/Y/Z 1600 x 1300 x 800 mm

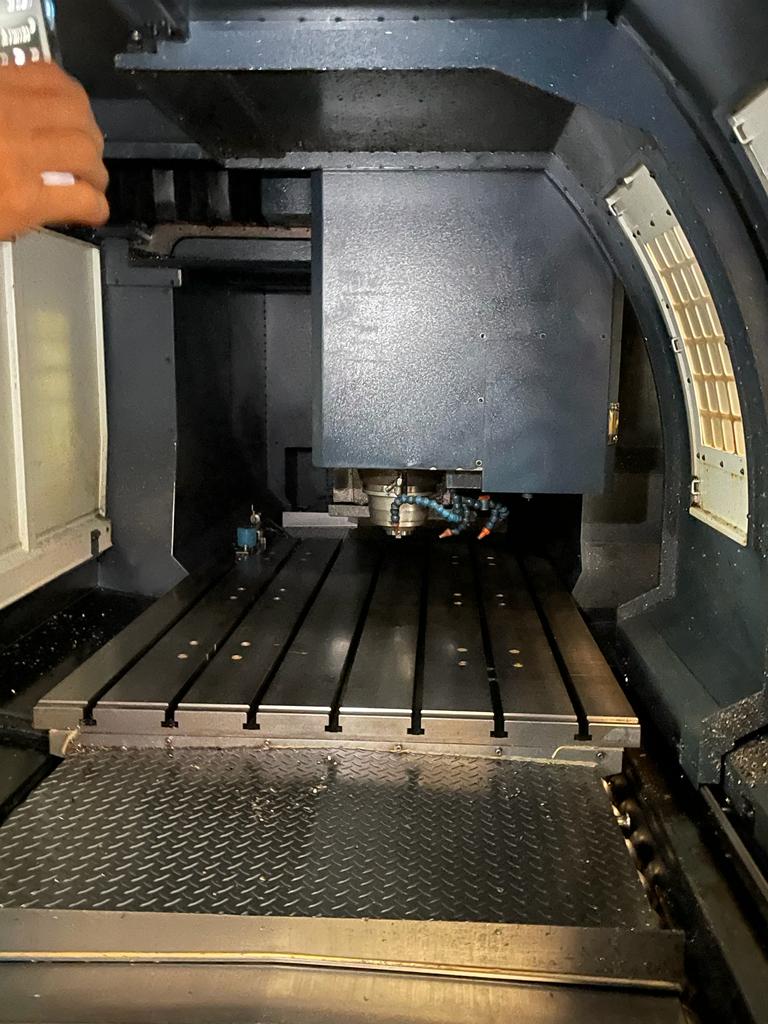

Table size 1700 x 1100 mm
Distance between columns 1300 mm
Spindle to table min / max 150 – 950 mm
Max table load 6 000 kg
Rapid traverse X/Y/Z 24/ 24/ 12 m/min
Spindle speed 8 000 RPM 2 speed geared head
Spindle taper ISO 40
Spindle power 11 kW
ATC 40
Machine weight 20 t
Machine dimensions 5500 x 3300 x 3800 mm
