Specifications :
Turning capacity :
Max swing diameter : 1600 mm
Max turn diameter : 1350 mm
Max Turn height. 1200 mm
Vertical ram travel : 900 mm

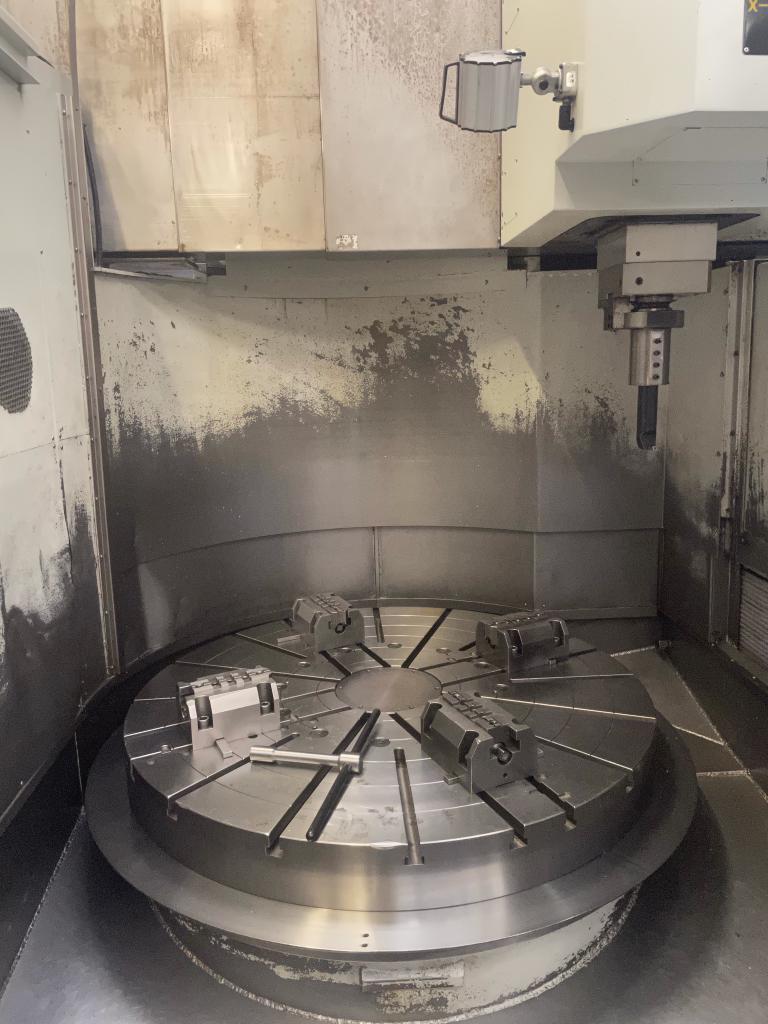

Chuck :
Diameter : 1250 mm
Max Load. : 5 T
Chuck Speed (2 ranges) : 1 – 350 RPM
Main motor power : 37/45 kW
Foot-print + height : 5 x 4.3 x 5.4 m
Weight : 23 t
Options :

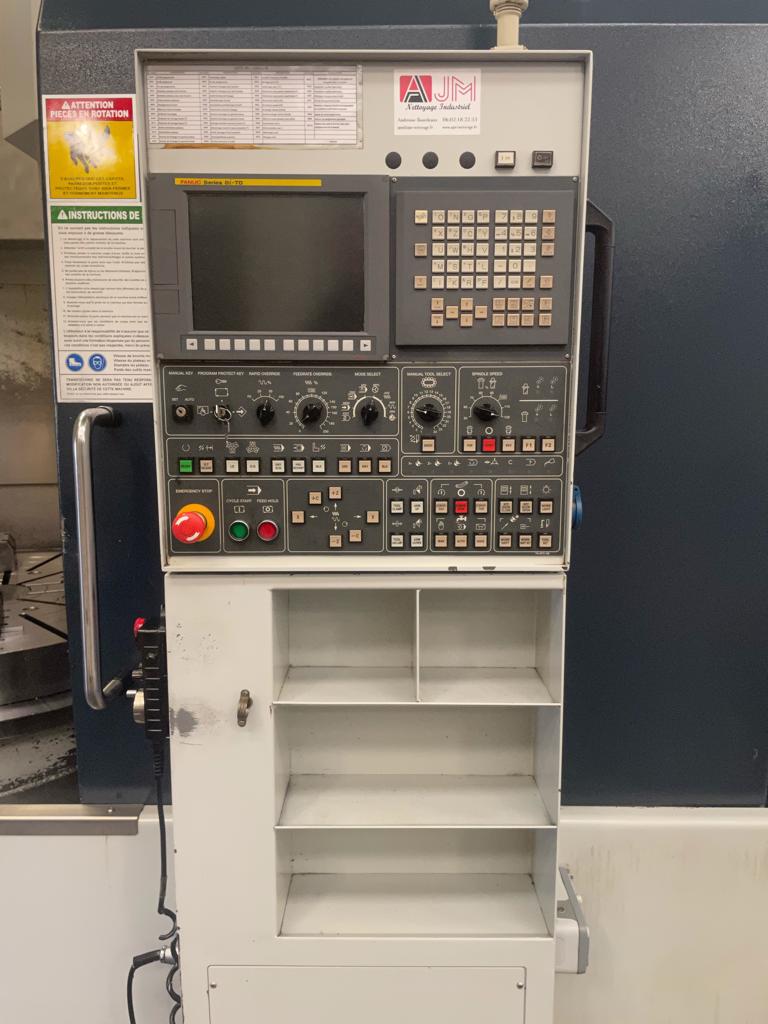

CNC : FANUC 0iTD
ATC 12
C axis
2400 RPM live spindle
Thru Ram and tool coolant
Set of 4 chuck jaws

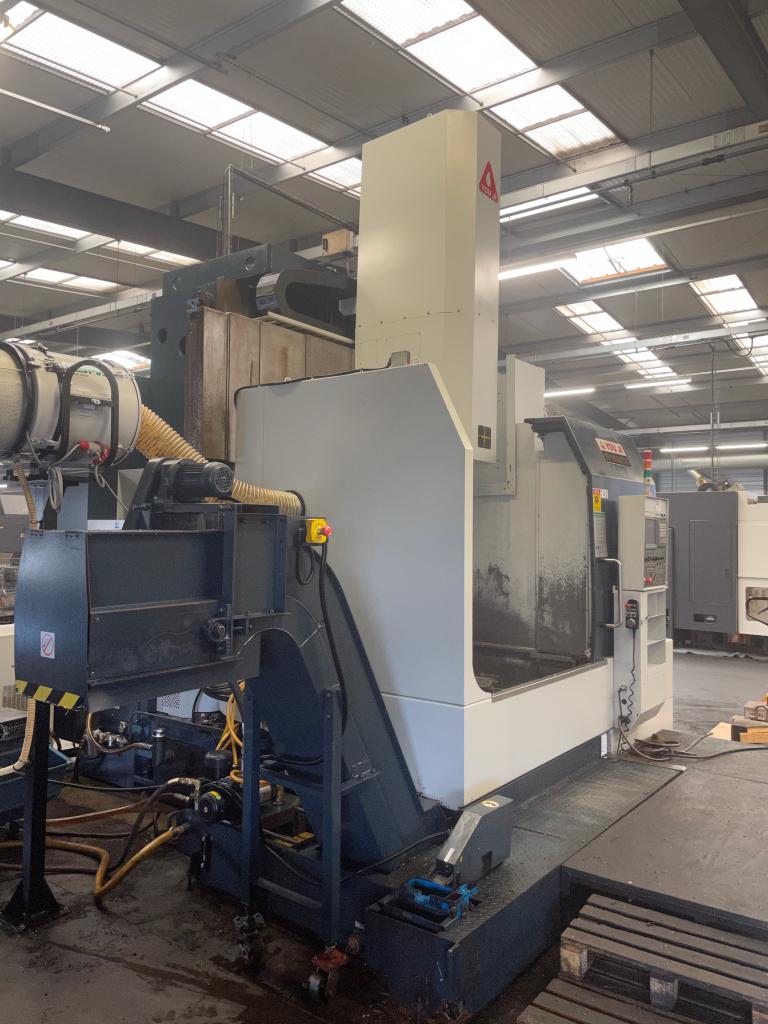

Swarf conveyor
