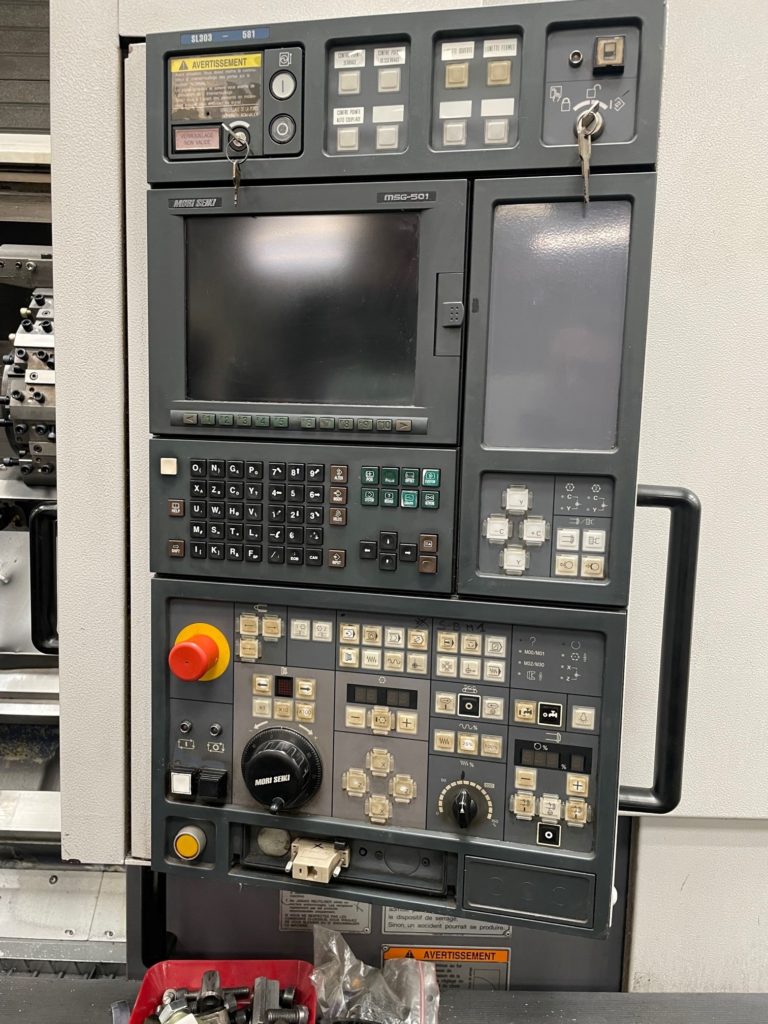

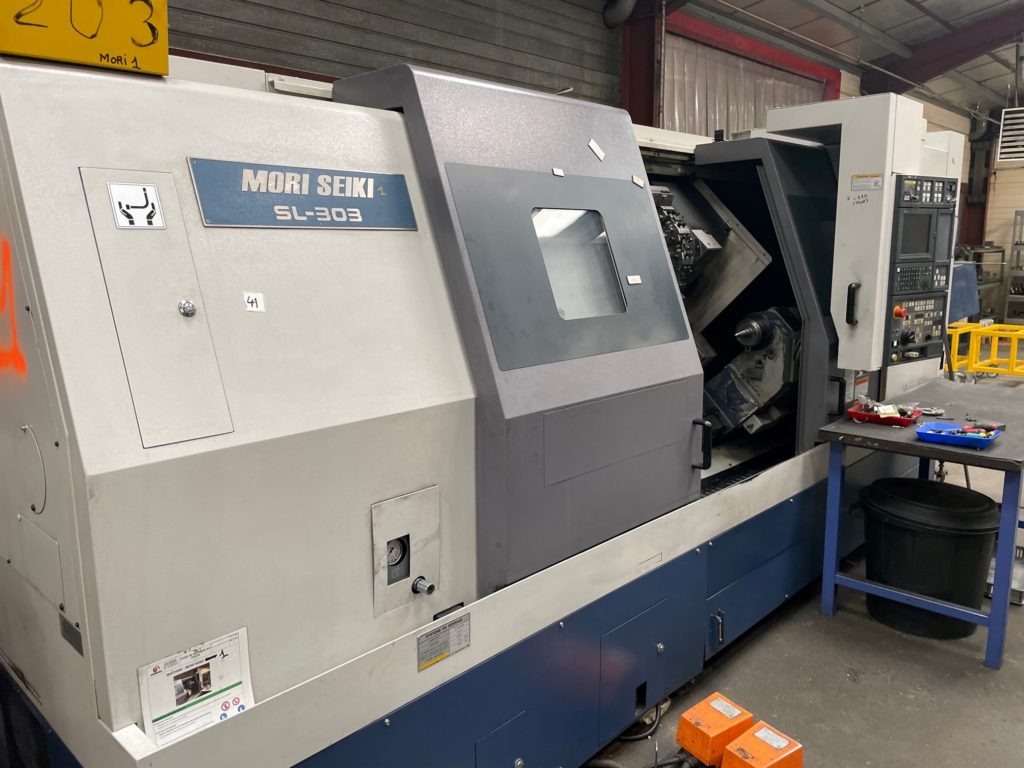

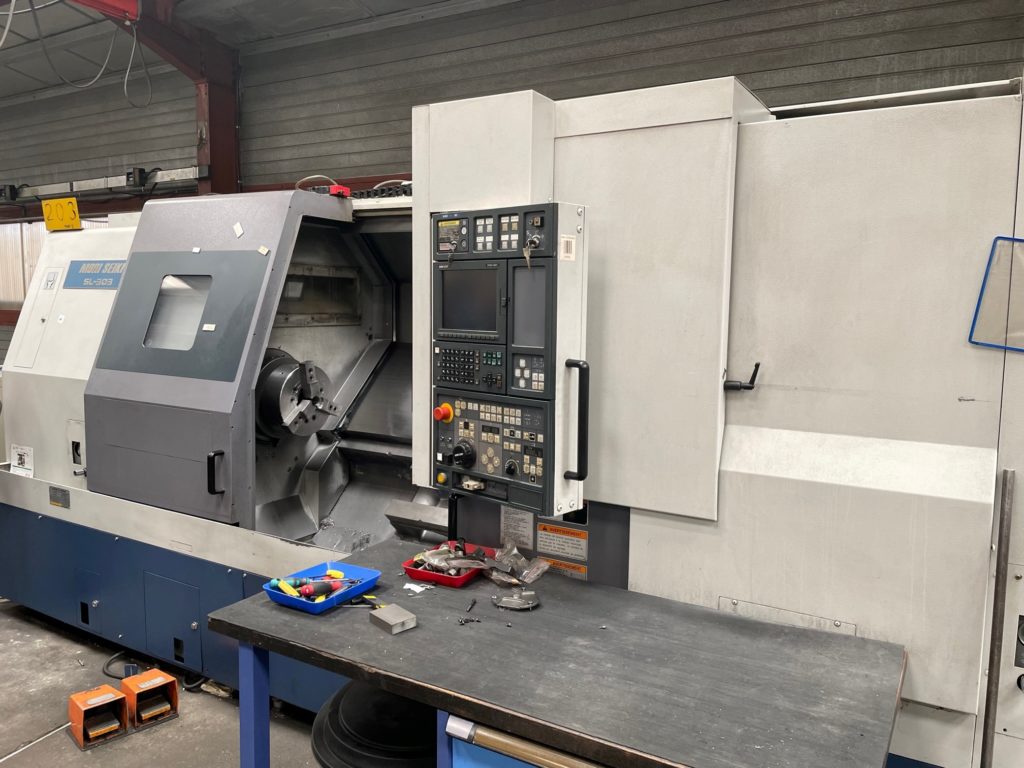

CNC : MSG -501

Equipped with :

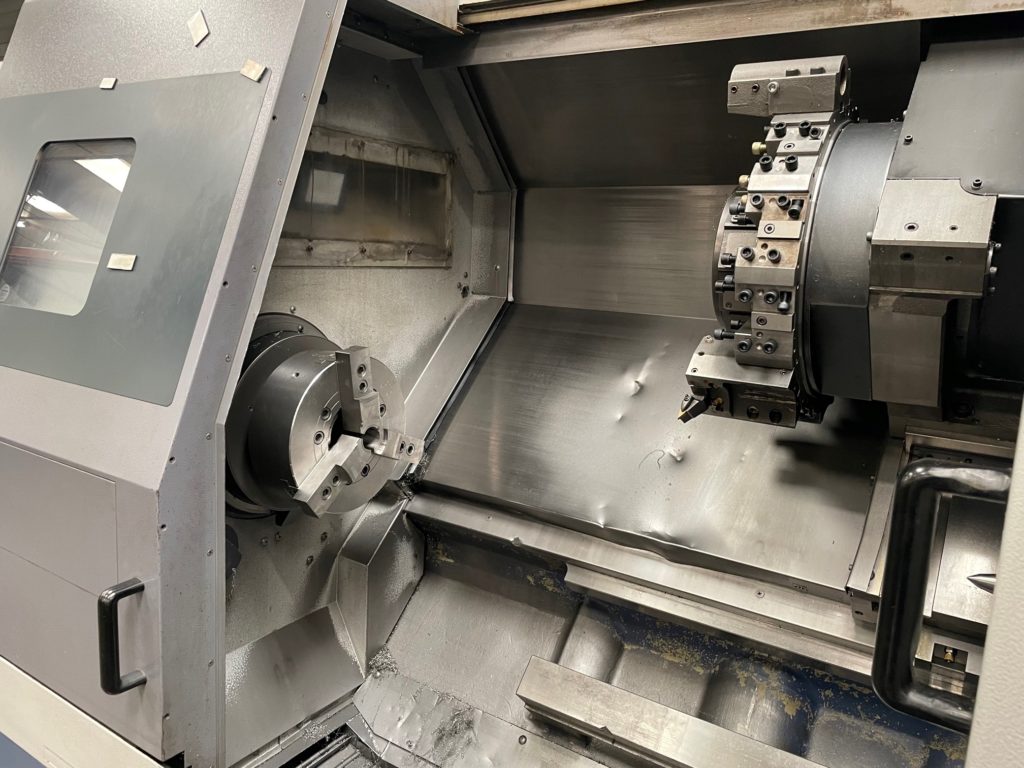

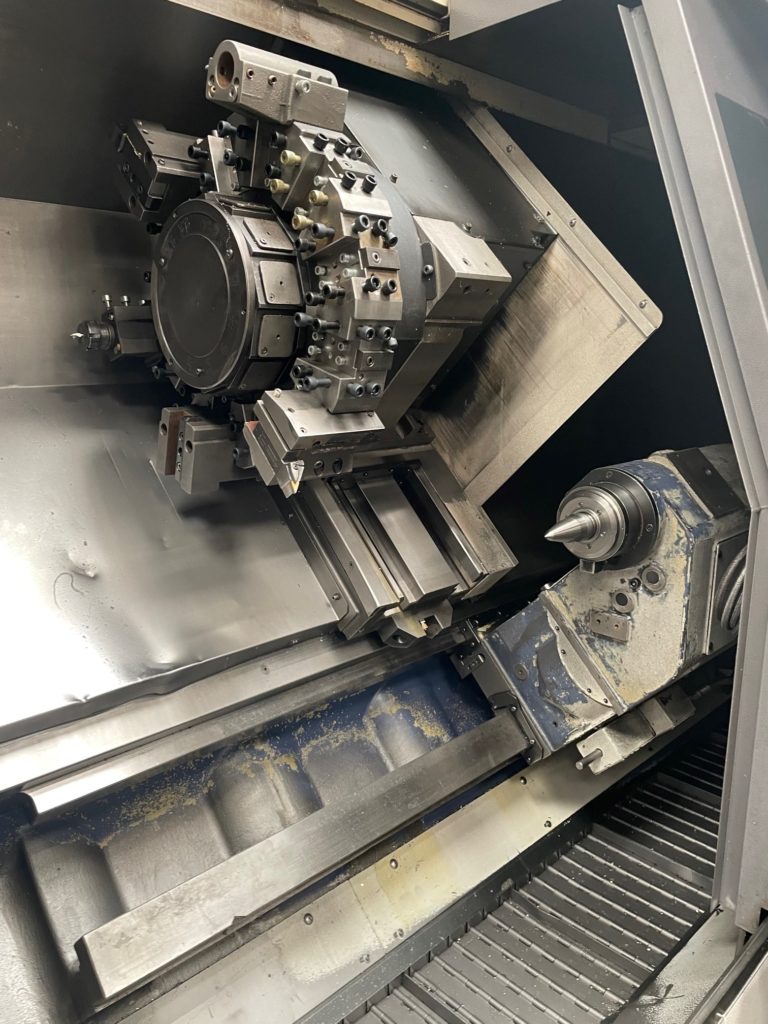

12 station Live tool turret

Kitagawa 300 mm Ø chuck

Swarf conveyor

Ridged tapping

Self Centring SMW SLU-3.1 Steady

Programmable tailstock

High Pressure coolant

Tooling package

Specifications :

Max swing Ø over bed : 715 mm

Max swing Ø over saddle : 500 mm

Max turn Ø : 420 mm

Chuck : 300 mm

Between centres  : 1500 mm

Rapids X/Z : 15/24 m/min

C axis : 0,001°

Max bar diameter : 89 mm

Spindle nose : A2-8’’

Spindle bore : 105 mm

Max spindle speed : 2500 RPM

Spindle motor power : 22/30 KW

Live tool speed : 3000 RPM

Turret : 12 postes

Machine weight : 8700 kg
