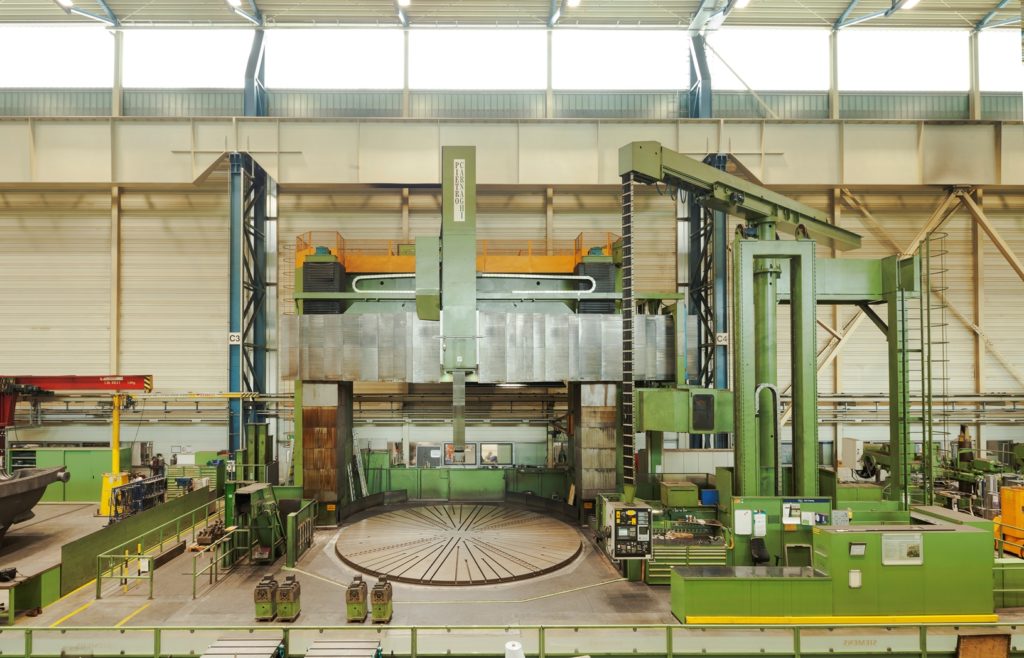

CNC : SIEMENS840

C axis and live tools
Eqipped with :
C axis to face-plate
A axis Swivel milling head ISO 50
U axis D’andrea type facing head
Automatic Head Changer
Automatic Tool changer
Sony video camera for work area
Swarf conveyor, Coolant

Specifications :

Turning capacity :
Max swing diameter : 8500 mm
Max turn diameter : 8000 mm
Max Turn height. 6550 mm

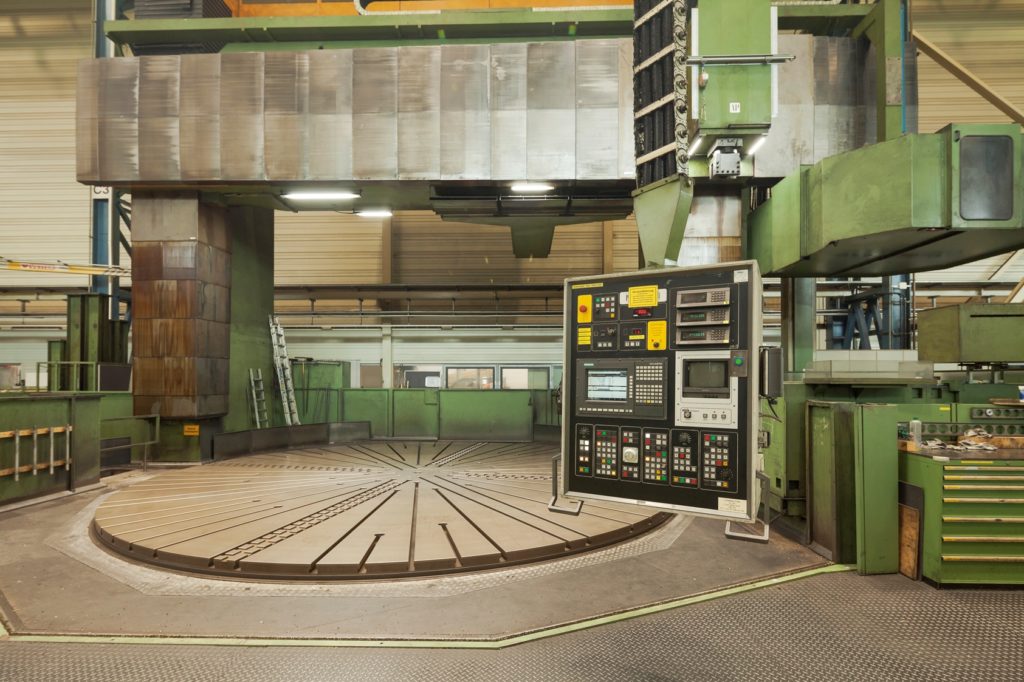

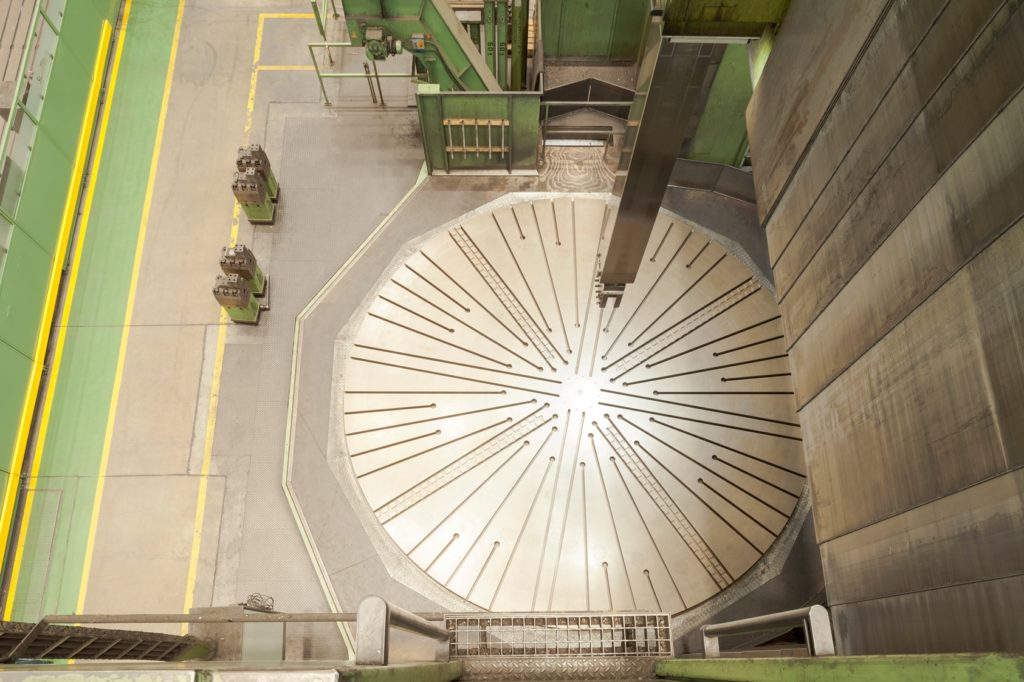

Chuck :
Diameter 8000 mm
Max Load. 200 T
Chuck Speed 1 – 42 RPM
Main motor power 100 kW

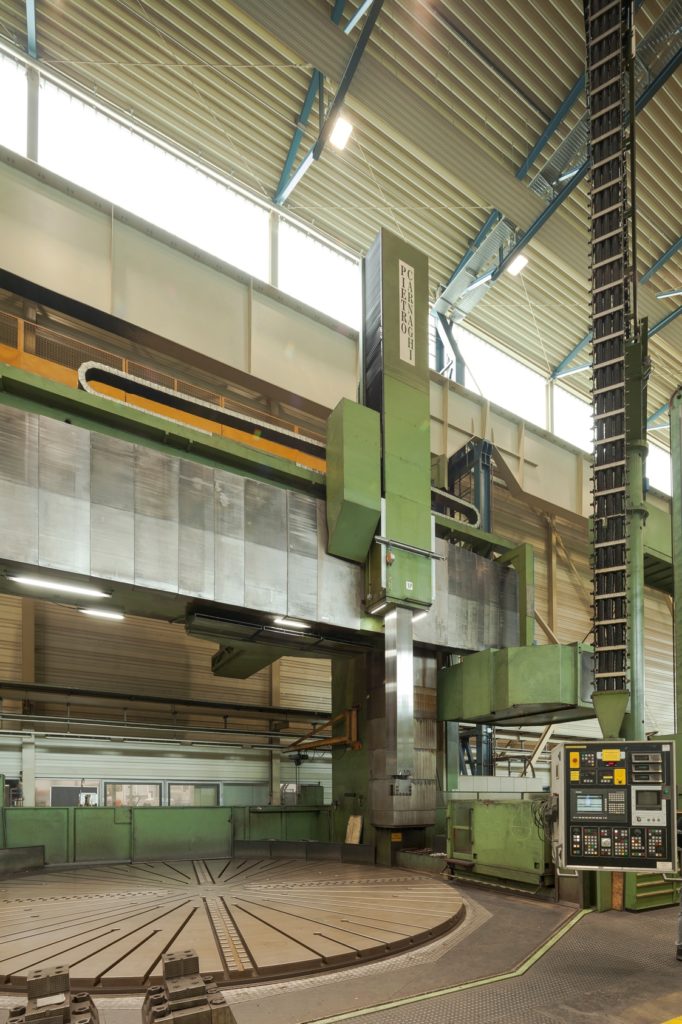

Ram on cross-rail :
Vertical Ram stroke 3200 mm
Ram section 400 x 400 mm
Milling spindle 60 kW
Milling spindle taper ISO 50
Milling spindle speed max 2000 RPM

Cross-rail :
Vertical stroke 4800 mm
Foot-print + height 23 x 13 x 12.4 m
Total weight approx 300 T
