Specifications :
| Turning capacities : Max. turning dia | 2 800 mm |
| Max. turning height | 1 750 mm |
| Max. workpiece weight | 20 000 kg |
| Spindle: Table dia (Manual chuck) | 2000 mm |
| Rang of table speed | 1-250 RPM |
| Live tool spindle speed | 2-3000 RPM |

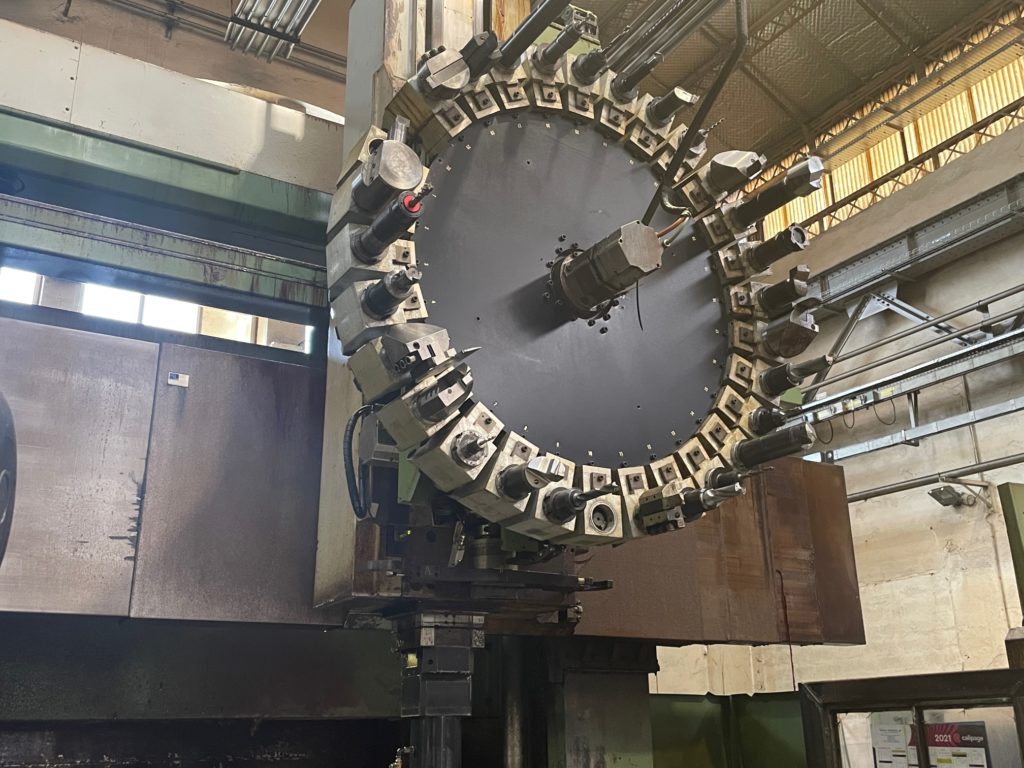

| ATC: Automatic tool change | 30 |
| Cross-section of ram | 250 x 250 mm |
| Feed: Rapid rate (x-Axis) | 10 m/min |
| Rapid rate (Z-axis) | 5 m/min |
| Horizontal travel (x-axis) | 1820 mm |
| Vertical travel (z-axis) | 1250 mm |
| Y axis Travel | 1995 mm |
| Motors: Spindle motor | 70 kW |
| Live tool motor | 22 kW |
| Power requirement | 215 kVA |

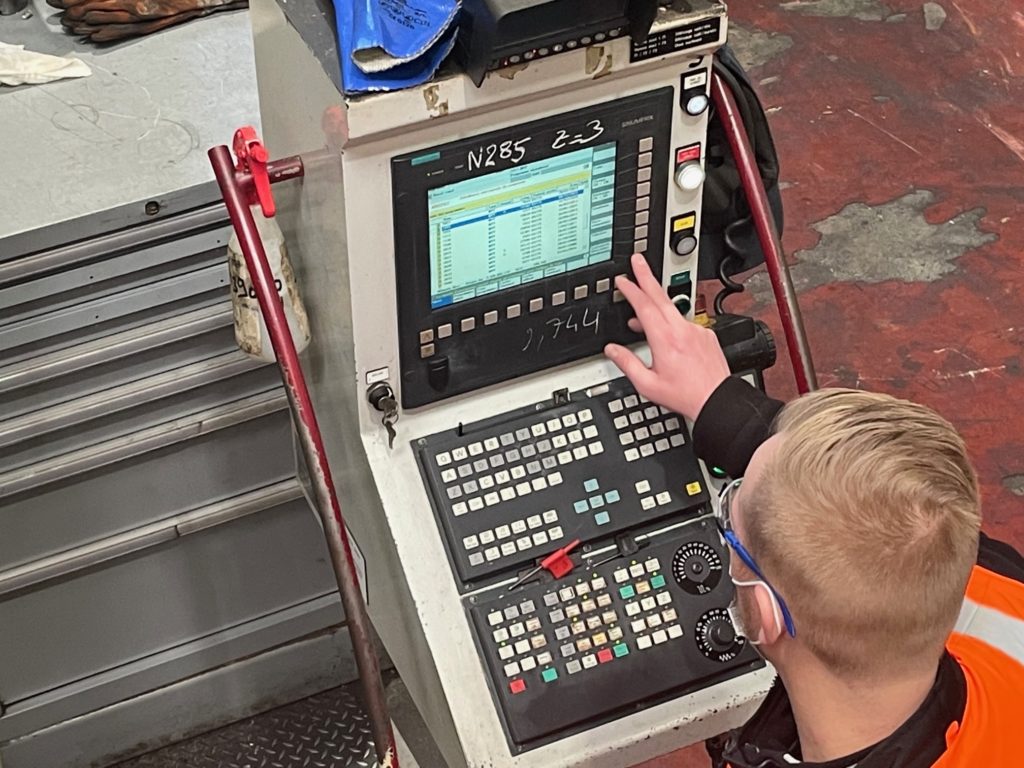

CNC : SIEMENS 840 D Power Line
Equipped with : (Standard Accessories)

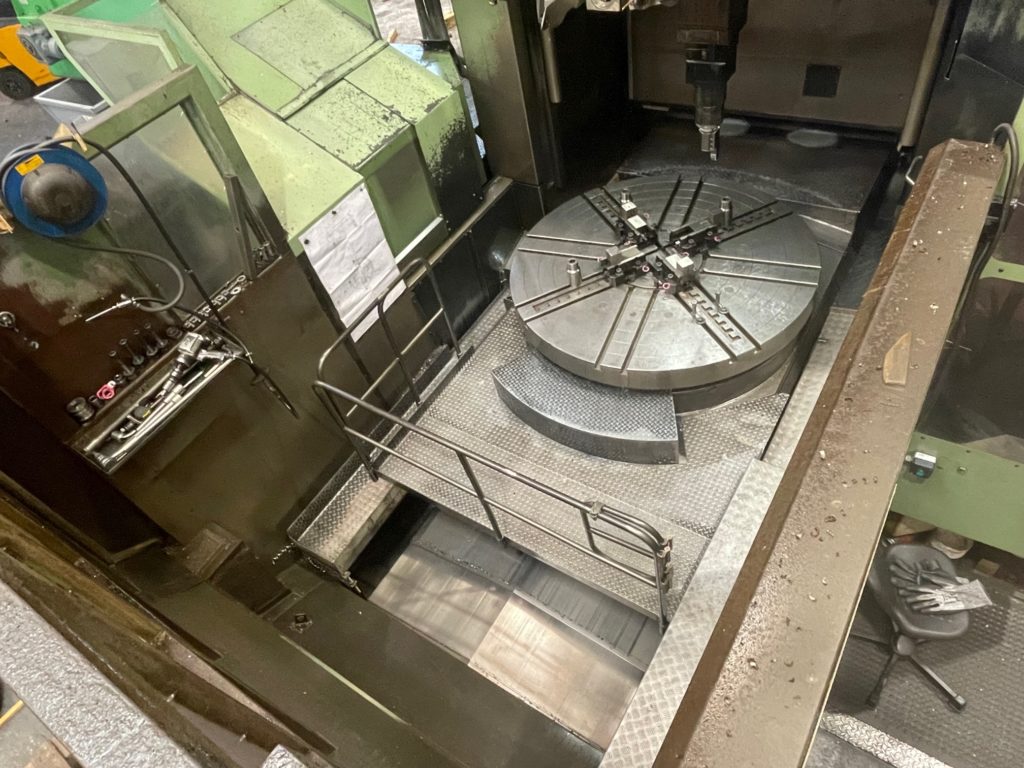

Table with manual 4-jaw chuck as spec. Automatic lubrication system
Coolant system with tank Chip conveyor
Complete splash guard
Options :
ATC for tool interface HSK 100
30 ATC KELCH
Air conditioner for electrical cabinet Coolant through tool holder, 30 bar
Complete splash guard
Table with manual 4-jaw chuck as spec. Automatic lubrication system
Coolant system with tank Chip conveyor
