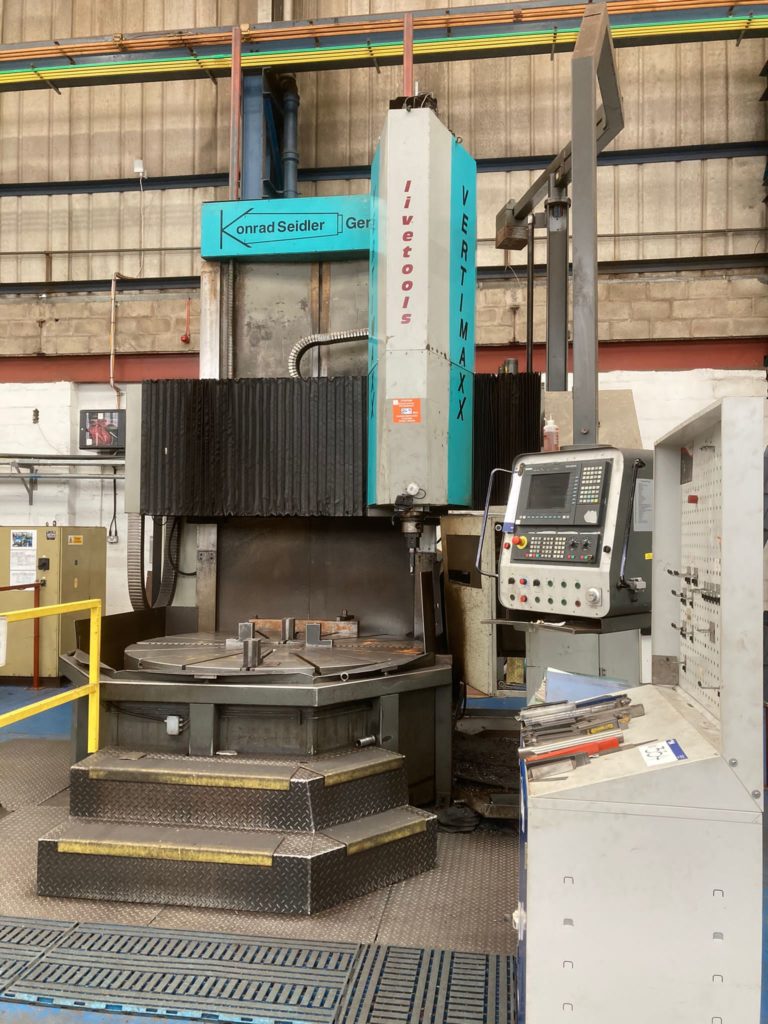

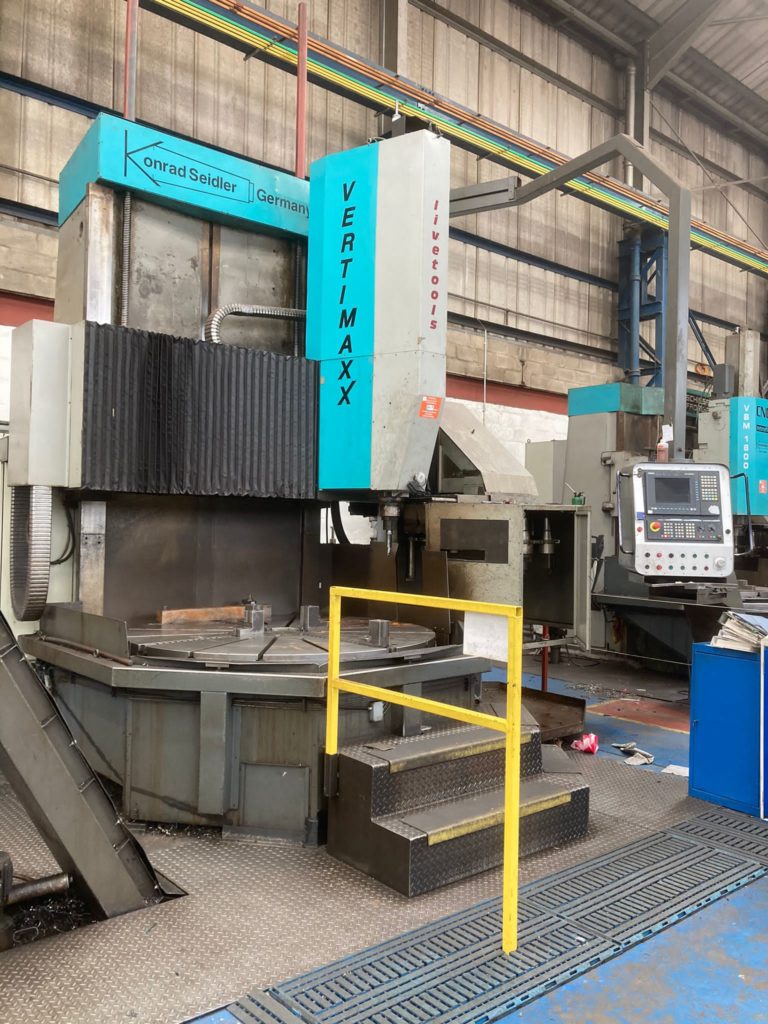

3 AXIS CNC VERTICAL BORER – KONRAD SEIDLER – VERTIMAXX 2000

Marque : KONRAD SEIDLER

Modèle : VERTIMAXX 2000

Année : 2001

Specifications :

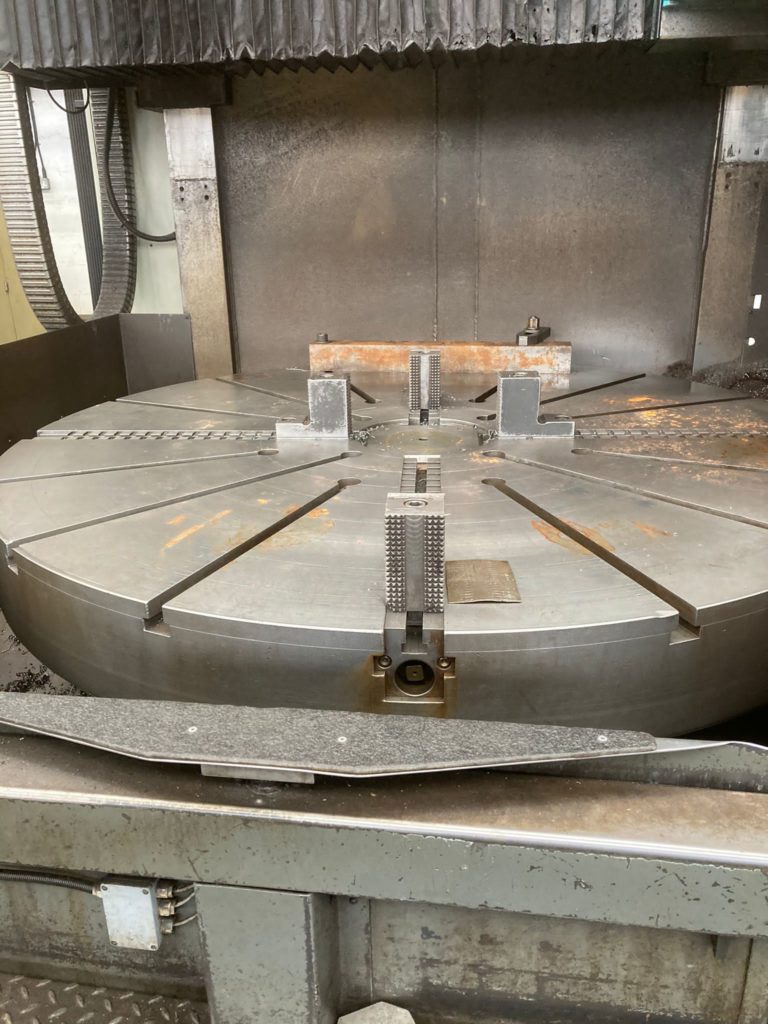

Chuck diameter  1 800 mm

Max. turning diameter  130 mm

Max. turning height   1 400 mm

Height under cross rail  1 500 mm

Chuck load  10 T

Vertical stroke of ram  1 000 mm

Chuck speed   140 RPM (high torque gear box)

Main motor power   60 kW

Motor power of milling spindle   15 / 22 kW

Voltage   400 V / 50 Hz / 3 Ph

Machine weight apprx.  24 T

Overall machines dimensions approx.   6 000 x 4 000 x h 5 600 mm

Equipped with:

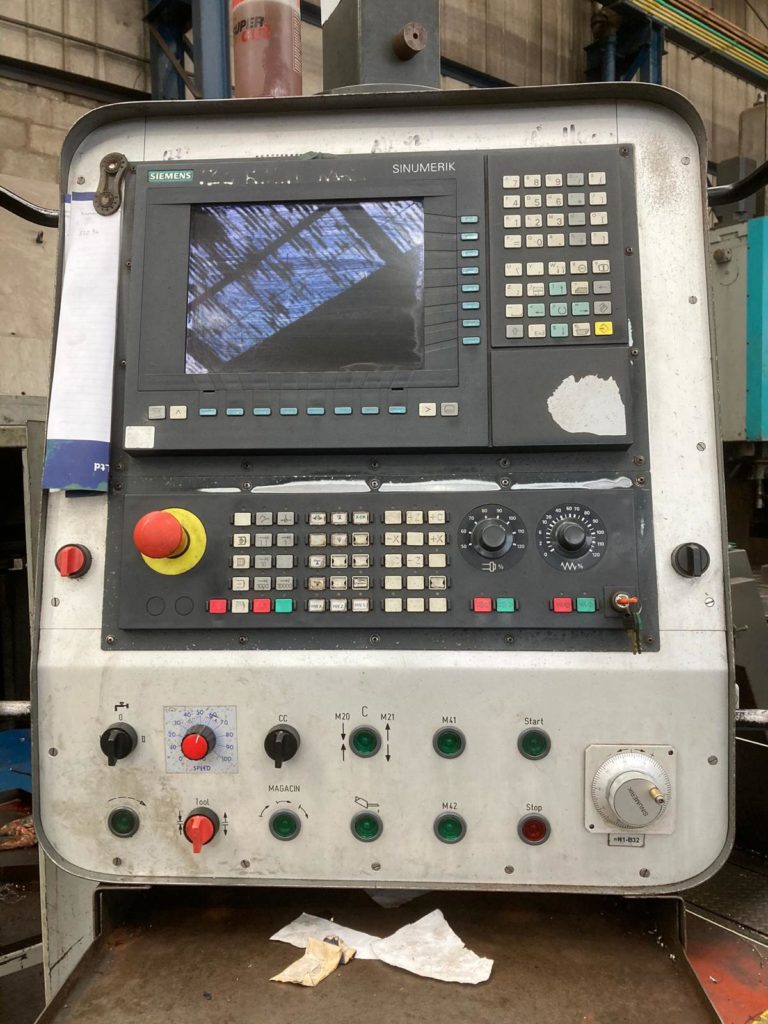

CNC : SIEMENS 840D

C axis continuous 360 000 positions

Mechanical blocking of chuck for drilling / milling operations

Milling spindle 15 / 22 kW

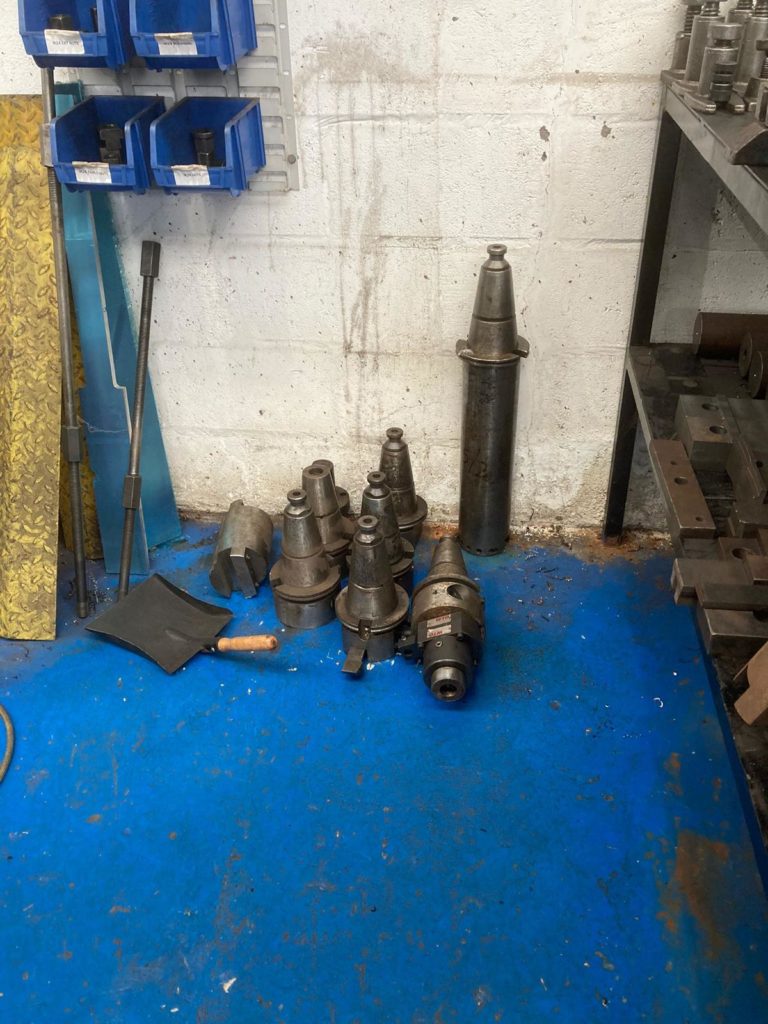

ATC 16 positions

Through tool coolant (milling + turning)

Chip conveyor
